The MPC8260 has two physical serial DMA (SDMA) channels. The CP implements two
dedicated virtual SDMA channels for each FCC, MCC, SCC, SMC, SPI, and I
2 CÑone for
each transmitter and receiver. An additional four virtual SDMA channels are assigned to the
programmable independent DMA (IDMA) channels.

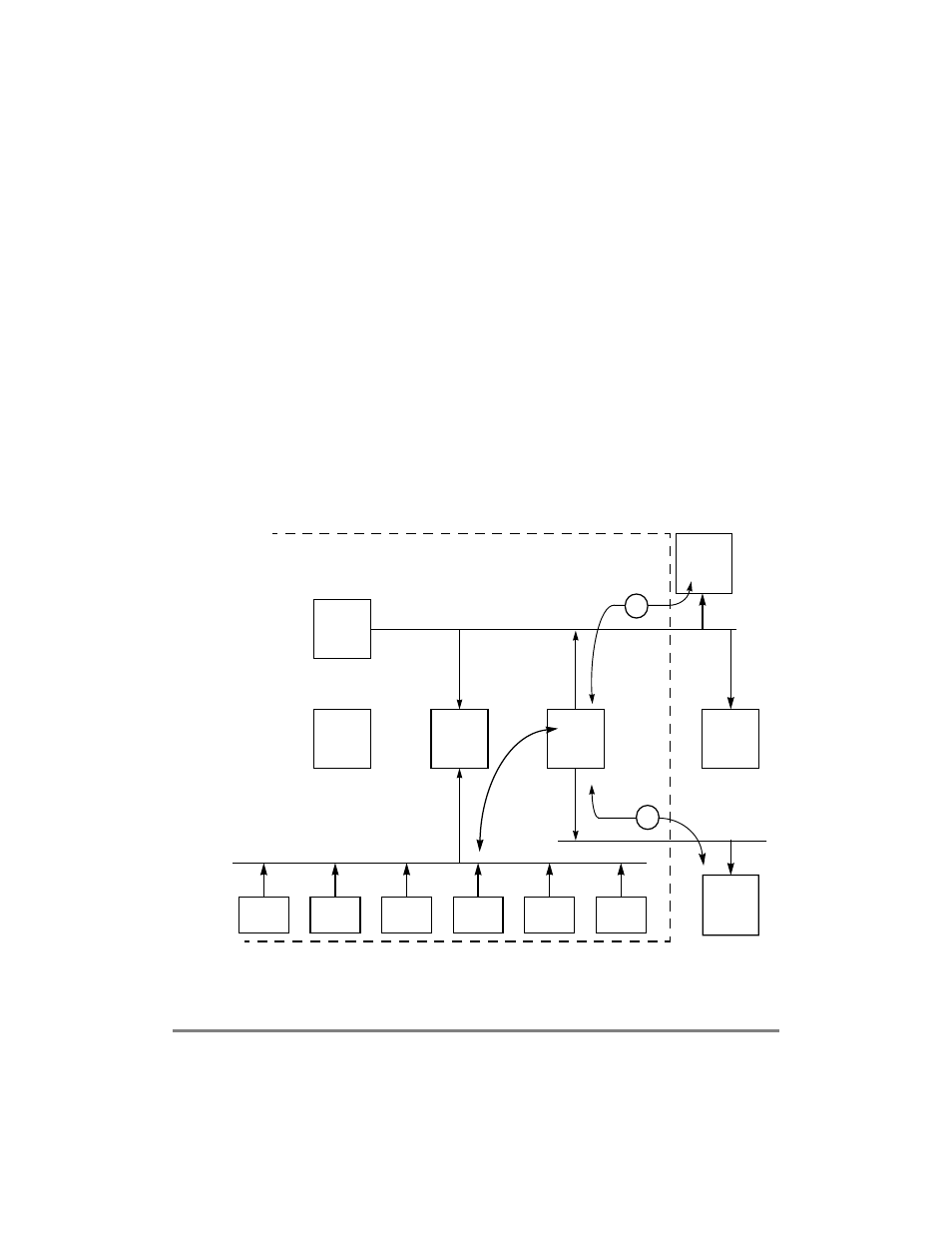

Figure 18-1 shows data ßow paths. Data from the peripheral controllers can be routed to
external RAM using the 60x bus (path 1) or the local bus (path 2).
