19-20 MPC8260 PowerQUICC II UserÕs Manual MOTOROLA
Part IV. Communications Processor Module

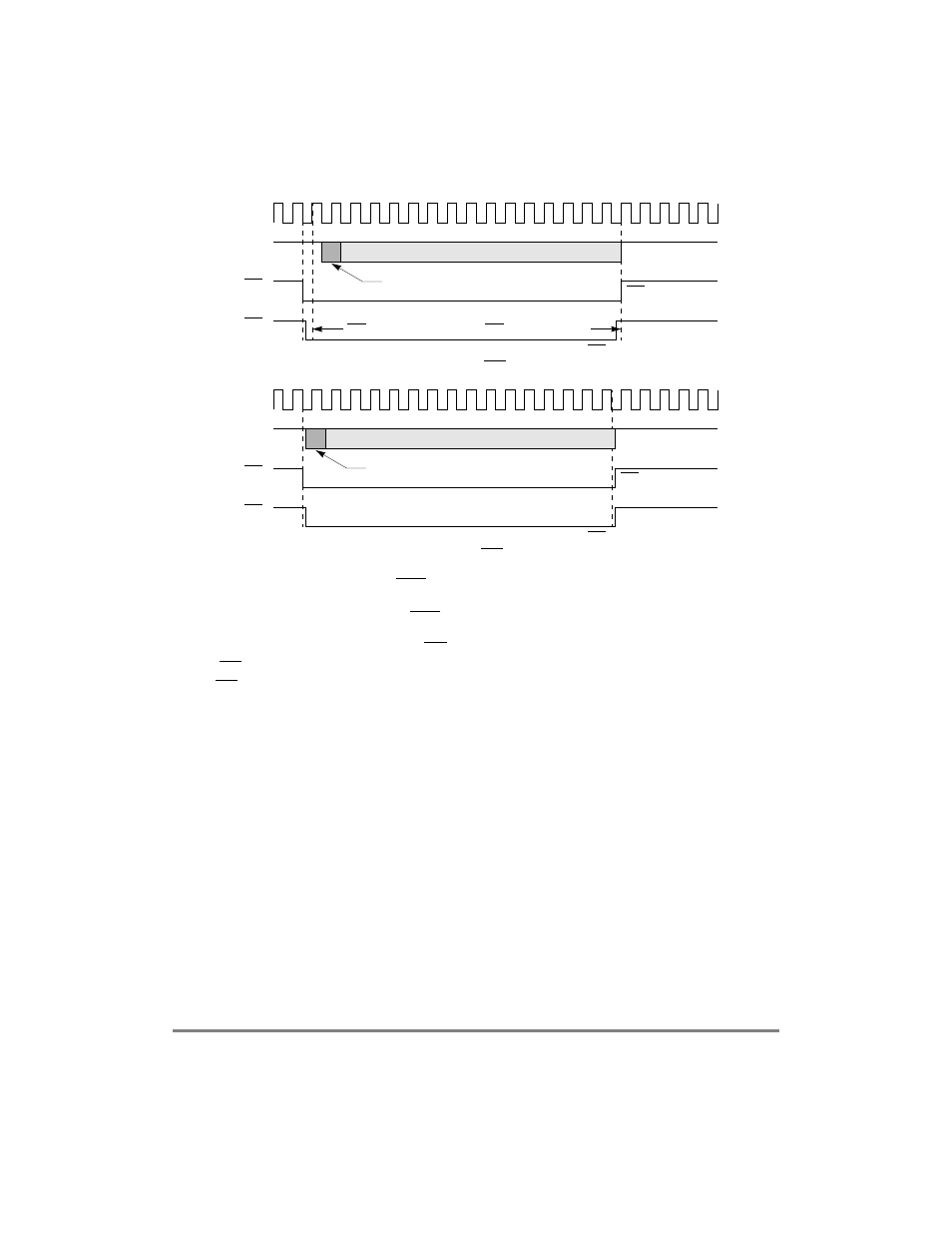

Figure 19-11. CTS Lost in Synchronous Protocols
Note that if GSMR_H[CTSS] = 1, CTS transitions must occur while the Tx clock is low.
Reception delays are determined by CD as shown in Figure 19-12. If GSMR_H[CDS] is
zero, CD is sampled on the rising Rx clock edge before data is received. If GSMR_H[CDS]
is 1, CD transitions cause data to be immediately gated into the receiver.
1. GSMR_H[CTSS] = 0. CTSP=0 or no CTS lost can occur.
TCLK
TXD
First Bit of Frame Data
NOTE :
CTS Sampled Low Here
1. GSMR_H[CTSS] = 1. CTSP=0 or no CTS lost can occur.
TCLK
First Bit of Frame Data
NOTE:
CTS Sampled High Here
Data Forced High
RTS Forced High
Data Forced High
RTS Forced High
CTS Lost Signaled in Frame BD
CTS Lost Signaled in Frame BD
(Output)
RTS
(Output)
CTS
(Input)
CTS
(Input)
RTS
(Output)
TXD
(Output)
