10-58 MPC8260 PowerQUICC II UserÕs Manual MOTOROLA
Part III. The Hardware Interface
Figure 10-50 through Figure 10-53 show timing examples.

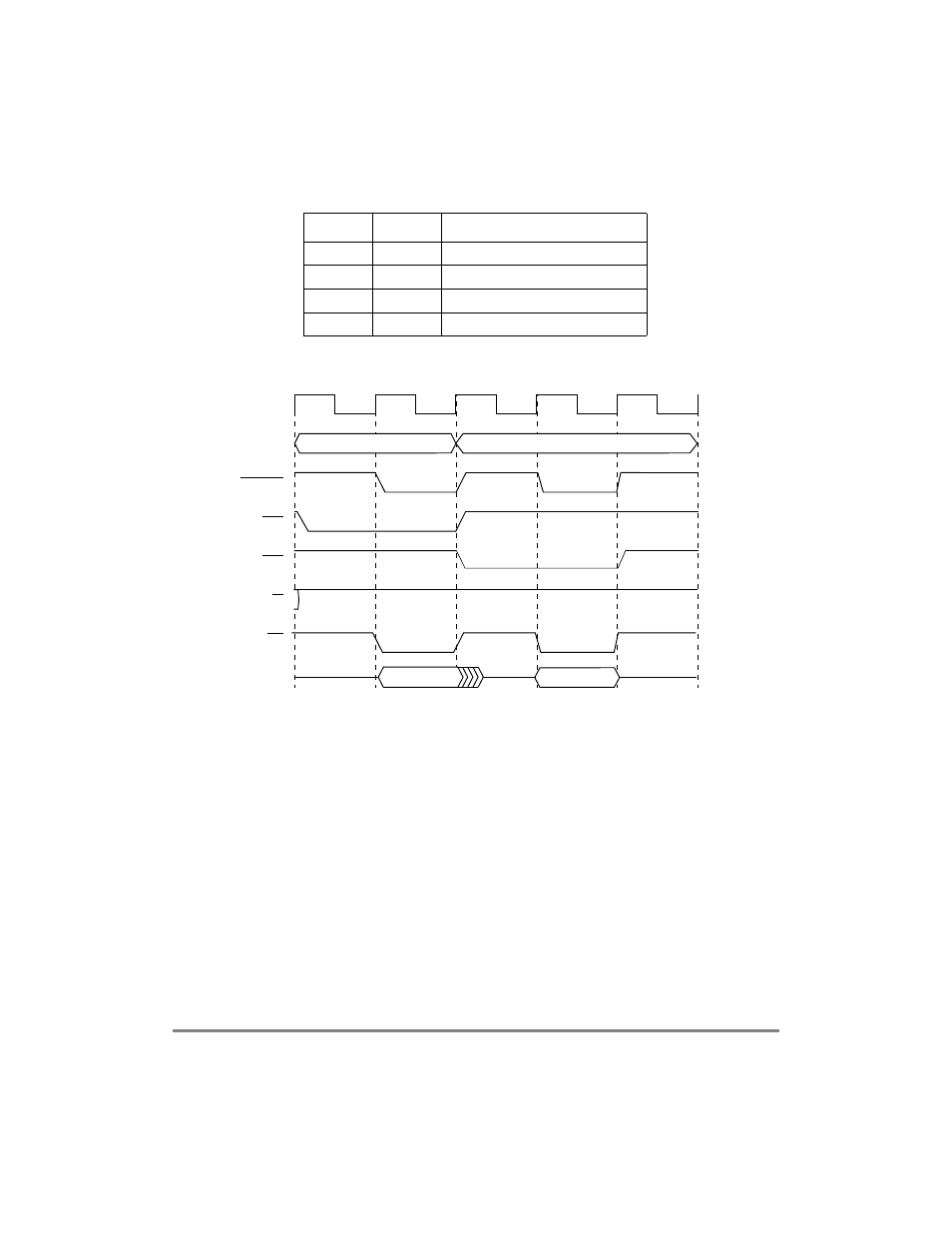

Figure 10-50. GPCM Read Followed by Read (ORx[29Ð30] = 0x, Fastest Timing)
Table 10-31. TRLX and EHTR Combinations
ORx[TRLX] ORx[EHTR] Number of Hold Time Clock Cycles
0 0 0
0 1 1
1 0 4
1 1 8
Clock
Address
PSDVAL
CSx
CSy
R/W
OE
Data
