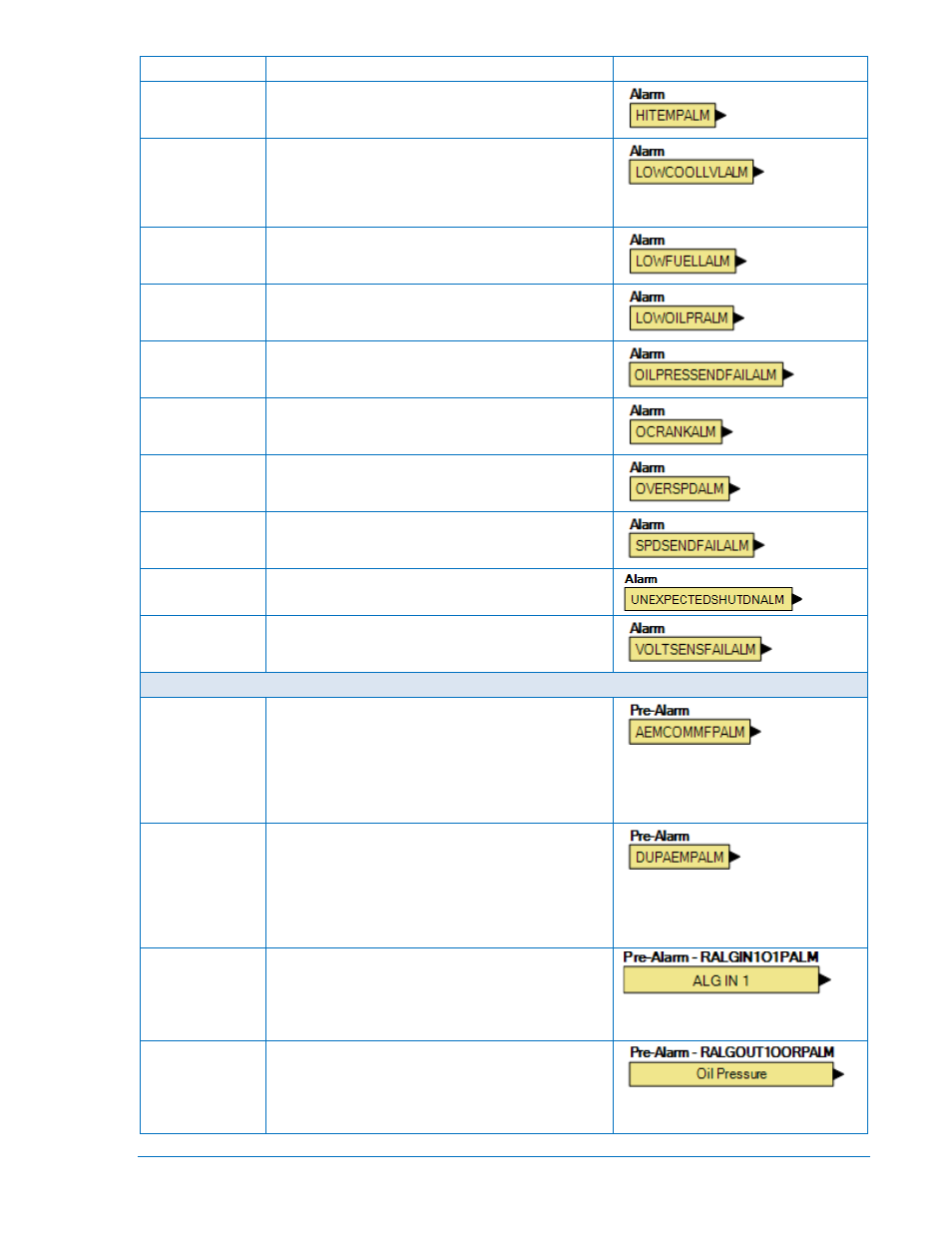

Name Description Symbol
Hi Coolant Temp True when the High Coolant Temp Alarm settings
have been exceeded.
Low Coolant
Level True when the Low Coolant Level function is
configured as an alarm and the activation delay has
expired. In addition, true when CANBus is enabled
and the Low Coolant Level Alarm threshold has been
exceeded.
Low Fuel Level True when the Low Fuel Level Alarm settings have
been exceeded.
Low Oil Pressure True when the Low Oil Pressure Alarm settings have
been exceeded.
Oil Pressure
Sender Fail True when the Oil Pressure Sender Fail is configured
as an alarm and the activation delay has expired.
Overcrank True when an Overcrank condition exists.
Overspeed True when the Overspeed Alarm settings have been
exceeded.
Speed Sender
Fail True when the Speed Sender Fail activation delay
has expired.
Unexpected
Shutdown True when the metered engine speed (RPM)
unexpectedly drops to 0 while the engine is running.
Voltage Sensing
Fail True when the Voltage Sensing Fail is configured as
an alarm and the activation delay has expired.
Pre-Alarms
Analog
Expansion
Module
Analog
Expansion
Module Comm
Fail
True when communication from the AEM-2020 to the
DGC-2020 has been lost.
Analog
Expansion
Module
Multiple Analog
Expansion
Modules
Detected
True when more than one AEM-2020 is connected.
Analog
Expansion
Module
Remote Analog
Inputs 1-8
True when Over 1, Over 2, Under 1, Under 2, or Out
of Range is configured as a pre-alarm and the
threshold has been exceeded. (Over 1 shown.)
Analog
Expansion
Module
Remote Analog
Outputs 1-4
True when the analog output connection is open and
the Out of Range Alarm Configuration is set to pre-
alarm.
