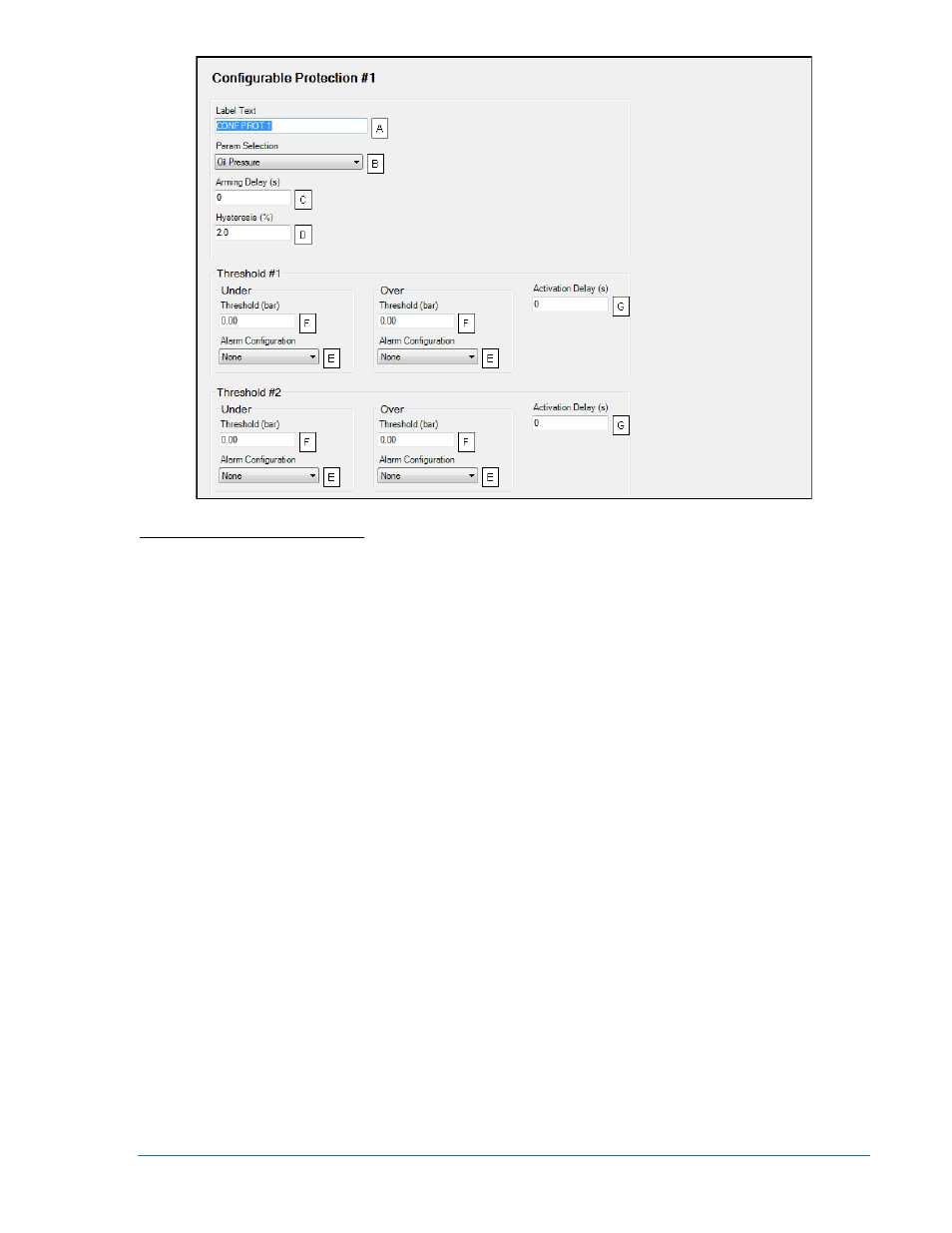

Figure 4-45. Configurable Protection #1
A Label Text: An alphanumeric character string with a maximum of 16 characters.
B Param Selection: Oil Pressure, Coolant Temp, Battery Volts, RPM, Fuel Level, Gen VAB, Gen VBC,
Gen VCA, Gen VAN, Gen VBN, Gen VCN, Bus Freq, Bus Volts, Gen Freq, Gen PF, Gen IA, Gen IB, Gen
IC, kW A, kW B, kW C, kW Total, kVA A, kVA B, kVA C, kVA Total, Analog Input 1-8, RTD Input 1-8,
Thermocouple Input 1-2, Fuel Delivery Pressure, kvar A, kvar B, kvar C, kvar Total, Injector Metering Rail
Pressure, Total Fuel Used, Fuel Temperature, Engine Oil Temperature, Engine Intercooler Temperature,
Coolant Pressure, Fuel Rate, Boost Pressure, Intake Manifold Temperature, Charge Air Temperature,
Engine Percent Load, Bus VAB, Bus VBC, Bus VCA, kW Load Percent, Number of Units On Line, System
Online kW Capacity, System Generated kW, System Generated kvar, Number of Units, DEF Tank Level 1
%, DEF Tank Level 2 %, System Total kW Capacity, System Generated kW Percent, or DPF Outlet Gas
Temperature.
C Arming Delay: Adjustable from 0 to 300 s in 1 s increments.
D Hysteresis: Adjustable from 0 to 100% in increments of 0.1%.
E Alarm Configuration: None, Alarm, Pre-Alarm, or Status Only.
F Threshold: Adjustable from
−999,999 to 999,999 in increments of 0.01.
G Activation Delay: Adjustable from 0 to 300 s in 1 s increments.
Configurable Protection Scale Factors
The alternate frequency scale factor A is used when Gen Freq or Bus Freq is selected as the parameter for
configurable protection. The voltage low line scale factor B is used when the parameter selection for
configurable protection is set for Gen VAB, Gen VBC, Gen VCA, Gen VAN, Gen VBN, Gen VCN, or Bus
Volts. The current low line scale factor
C is used when the parameter selection for configurable protection
is set for Gen IA, Gen IB, or Gen IC.
The BESTCOMSPlus Scale Factors screen is illustrated in Figure 4-46.
