635

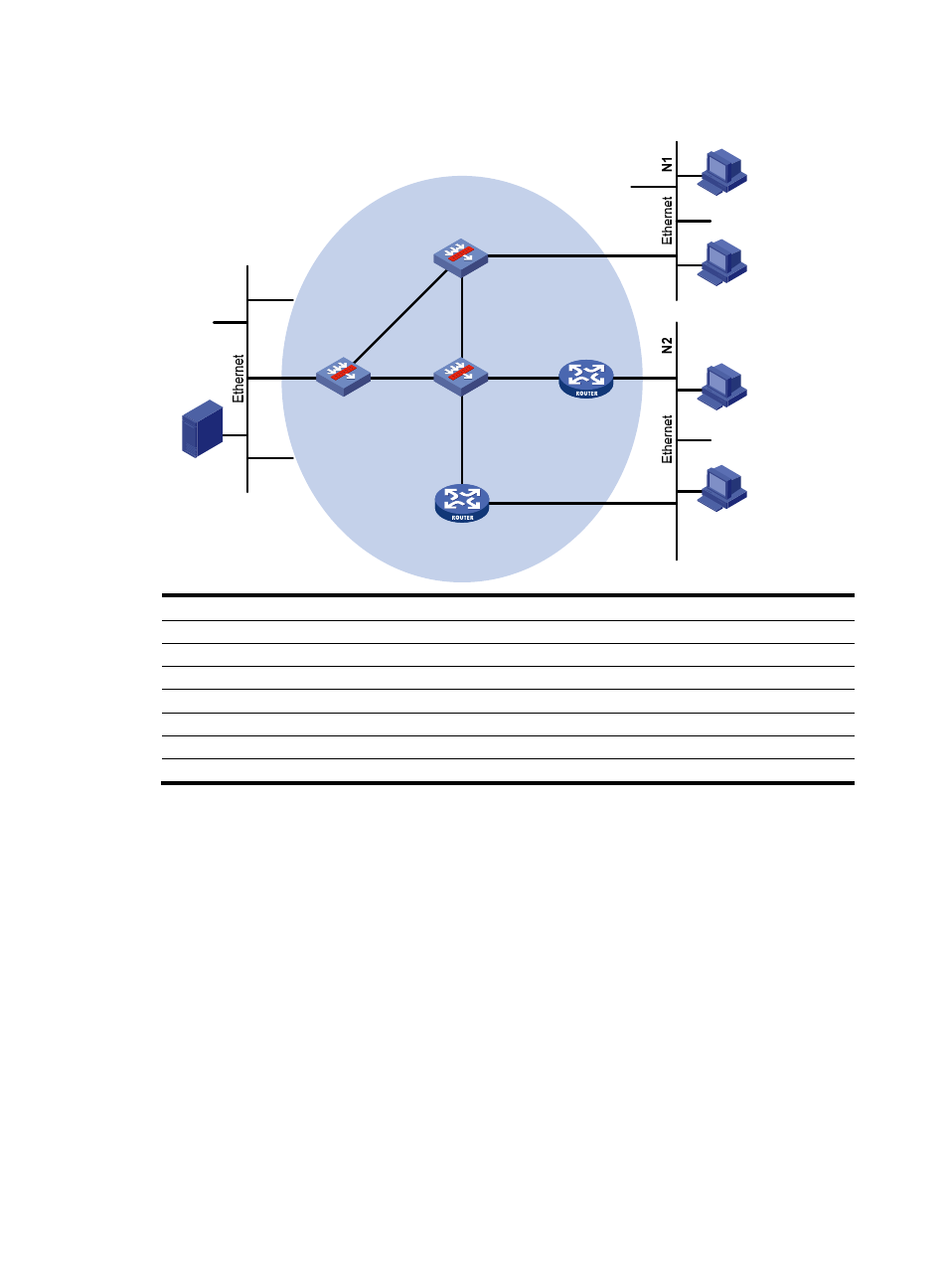

Figure 346 Network diagram
Device Interface IP address Device Interface IP address
SecPath A GE0/1 10.110.1.1/24 SecPath B GE0/1 10.110.5.1/24
GE0/2 192.168.9.1/24 GE0/2 192.168.1.2/24
GE0/3 192.168.1.1/24 GE0/3 192.168.4.2/24
Router A GE0/1 10.110.2.1/24 SecPath C GE0/1 192.168.3.2/24
GE0/2 192.168.2.1/24 GE0/2 192.168.2.2/24
Router B GE0/1 10.110.2.2/24 GE0/3 192.168.9.2/24
GE0/2 192.168.3.1/24 GE0/4 192.168.4.1/24
Configuration procedure
1. Configure IP addresses and unicast routing:
Configure the IP address and subnet mask for each interface as per
Figure 346 . (Details not
shown.)
Configure OSPF on the routers and firewalls in the PIM-SM domain to make sure the network-layer
on the PIM-SM network is interoperable and routing information among routers and firewalls can
be dynamically updated. (Details not shown.)
2. Enable IP multicast routing, and enable PIM-SM and IGMP:
# Enable IP multicast routing on SecPath A, enable PIM-SM on each interface, and enable IGMP
on GigabitEthernet 0/1, which connects to the stub network.
system-view
[SecPathA] multicast routing-enable
[SecPathA] interface GigabitEthernet 0/1
[SecPathA-GigabitEthernet0/1] igmp enable
[SecPathA-GigabitEthernet0/1] pim sm
[SecPathA-GigabitEthernet0/1] quit
Source
10.110.5.100/24
PIM-SM
SecPath A
Router A
Router B
SecPath B
Receiver
Host A
Host B
Host C
Host D
Receiver
SecPath C
GE0/1
GE0/1
GE0/1
GE0/1
GE0/2
GE0/3
GE0/3
GE0/2
GE0/2
GE0/2
GE0/2
GE0/1
GE0/4
GE0/3
