5-14
August 2003
Access Navigator - Release 1.8
Physical Installation
Attach Access Navigator to Crossbars

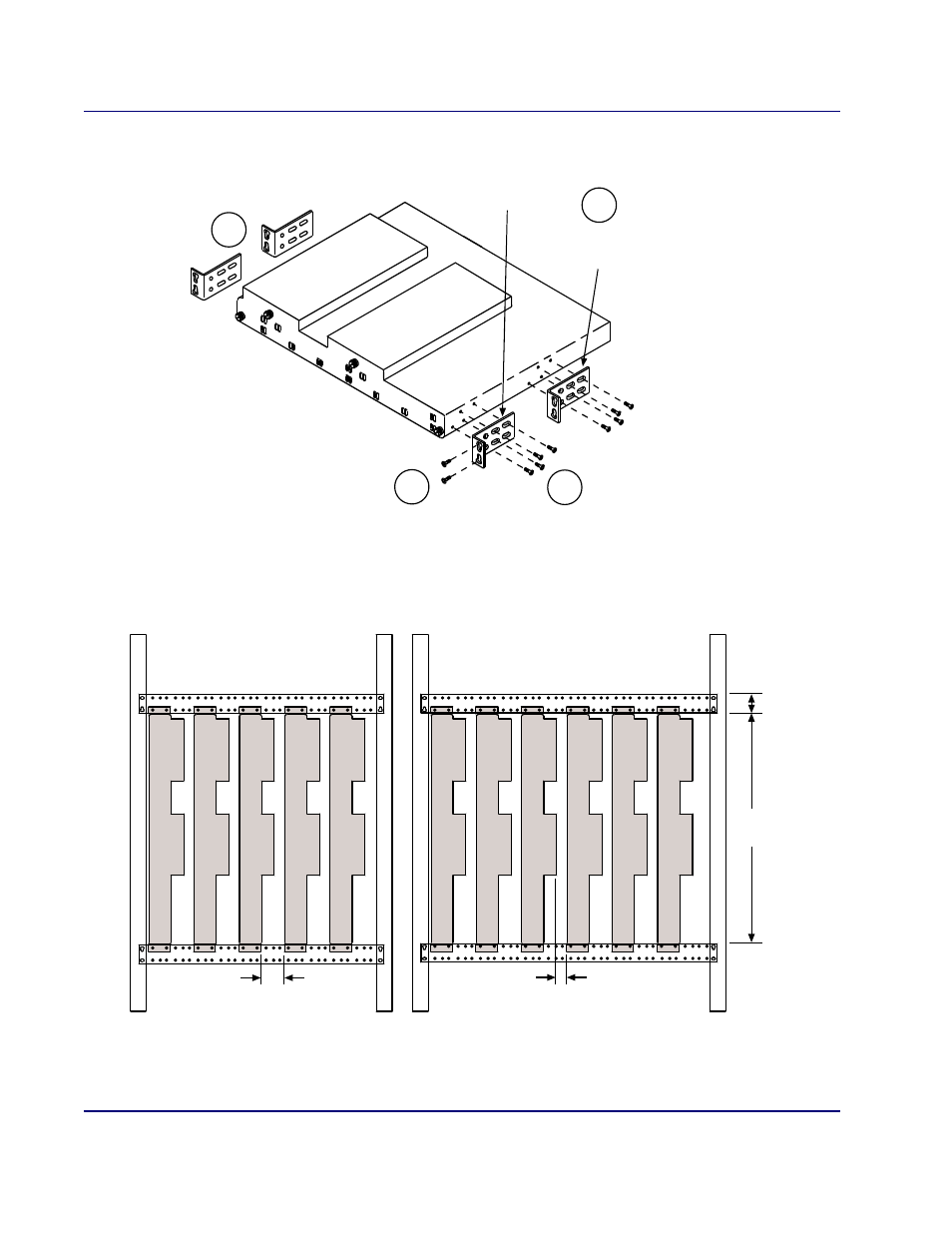

Figure 5-8. Bracket Installation
Figure 5-9. Spacing Requirements
Mount bracket here
for flush mount.
Mounting
Brackets
Mount bracket here for
5 inch forward offset.
Fasten brackets to
Access Navigator
with 6-32 x 3/8"
undercut screws
(four per side).
C
A
D
Fasten brackets to
crossbar with
12-24 x 5/8 inch
machine screws
(two per side).
B
19-inch Equipment Rack
(5 units per row maximum)
23-inch Equipment Rack
(6 units per row maximum)
1.75 inch
Bracket spacing
0.75 inch
Minimum air space
A
B
C
D
E
A
B
C
D
E
F
1.75
17.25
