5-18 August 2003 Access Navigator - Release 1.8
Physical Installation
Attach Access Navigator to Plywood

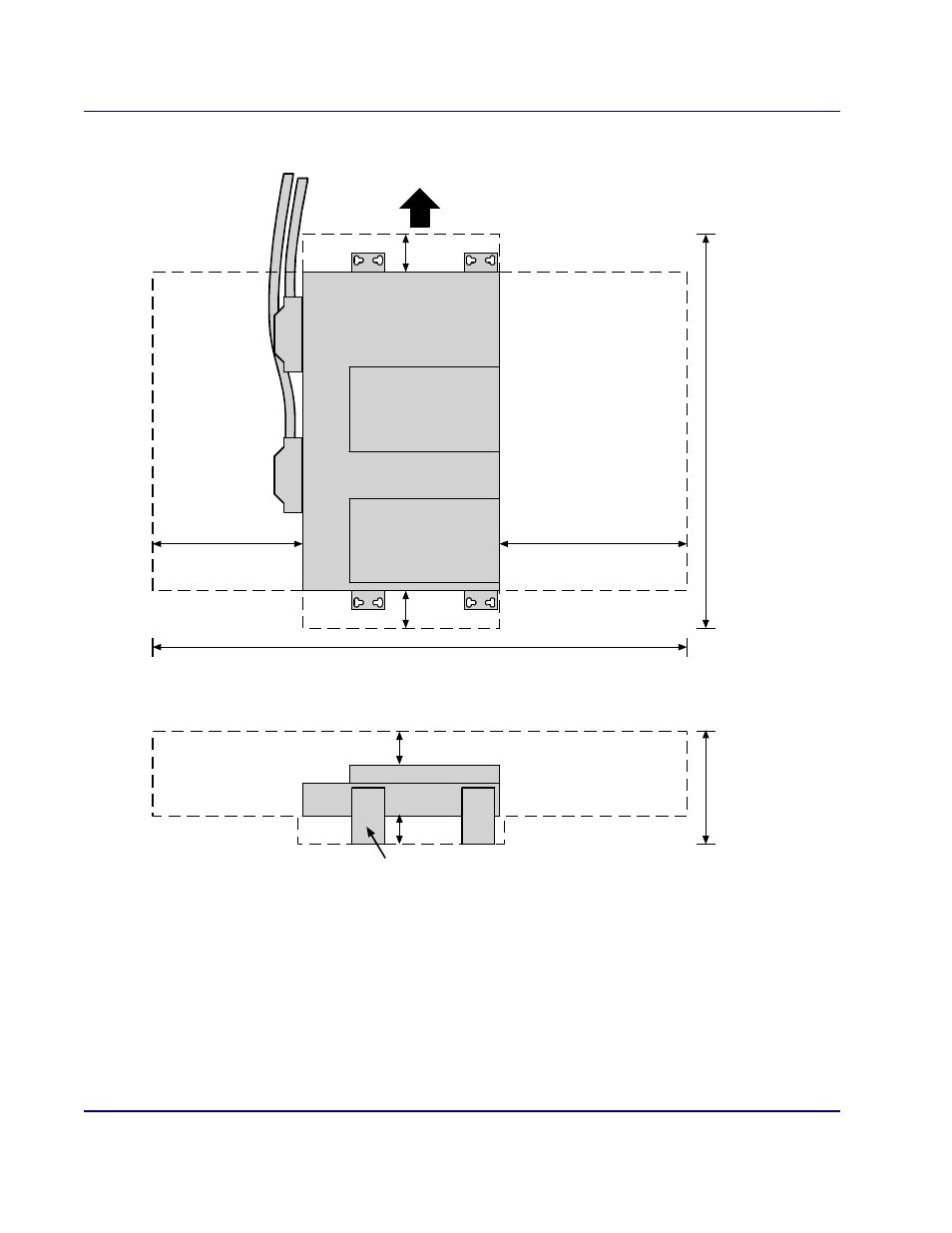

Figure 5-10. Access Clearance Requirements
Control Panel and
Circuit Board
Access
Connector
Panel
Access
Ventilation
10 inches 6 inches
2 in.
2 in. Ventilation
Wall View
End View
Ventilation 1.75 in.
6 inches
21 inches
28.5 inches
Control Panel and
Circuit Board
Access
Connector
Panel
Access
Mounting brackets provide bottom clearance for ventilation
1.5 in.
UP
