Provision DCS Service
Provisioning TR-08 Service with DCS
Provisioning Enhanced Voice and Data Services
DCS also works with drop DS1s carrying both voice and data channels. For example, an Access
Bank® II with Special POTS (SPOTS) cards provides TR-08 voice channels as well as high-speed
data over the same DS1. The Access Navigator can easily crossconnect the data channels to groom
DS1s providing access to Internet and other data services.

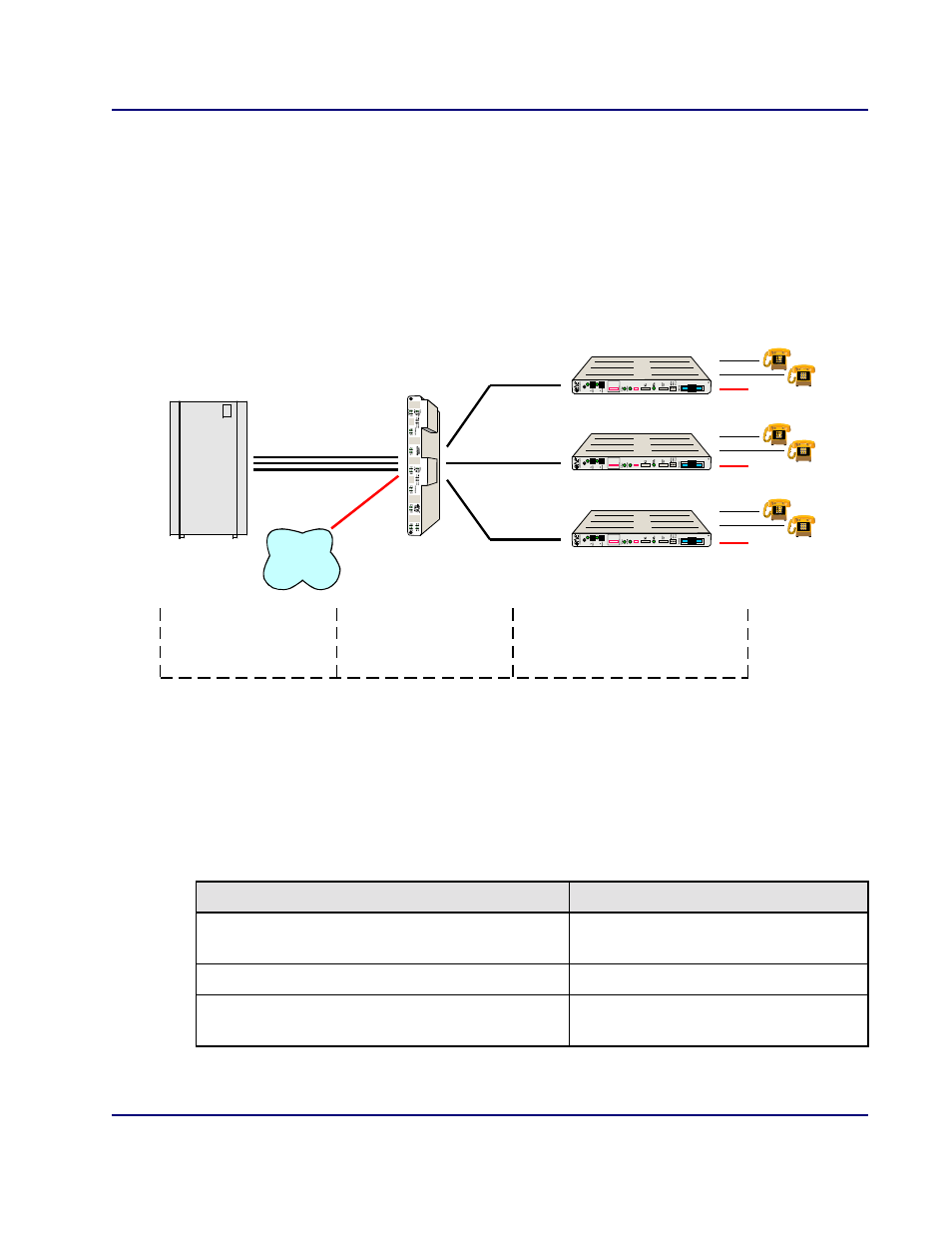

Figure 9-3 Access Bank II TR-08 Provides Enhanced Voice and Data Services
Special TR-08 Settings
DCS provisioning for TR-08 Shelf B, C, D support requires the following settings for the DS1
drop and groom lines. (For other DCS settings, see Provisioning TR-08 Service with DCS on
page 9-3 .)
CLI Commands TR-08 Item Descriptions
set ds1 framing d4
set ds1 framing esf
DS1 drop to TR-08 channel bank
DS1 drop to remote Access Bank II
set ds1 framing d4 DS1 groom to TR-08 switch
set ds0 type voice
set ds0 type data
DS0 type for TR-08 voice channels
DS0 type for enhanced data services
Access
Navigator
TR-08
Voice
Groom
DS1s
Voice
Switch
Drop
DS1s
Shelf B
Shelf C
Shelf D
“B Link”
“C Link”
“D Link”
Special POTS
Plus Data
TR-08 Voice
Plus Data
DCS
Groom and Fill
Switch
Center
Data
Switch
Data
Access Bank II
Data
Data
Data
• TR-08 Mode I
• No Concentration
• No Link Management
• Data Grooming Remote Provisioning
With ESF Framing
