Access Navigator - Release 1.8 August 2003 15-41
Diagnostics & Troubleshooting
Send Remote T1 Drop Payload Loopup
Send Remote T1 Drop Payload Loopup
This command makes the remote Access Bank II perform a Time Slot Interface (TSI) loopback on the
T1drop side. This takes the received T1drop DS0s, loops them in the TSI, and sends them back to the
T1drop output. See Figure 15-19.
Syntax: send remote t1drop tsi loopup

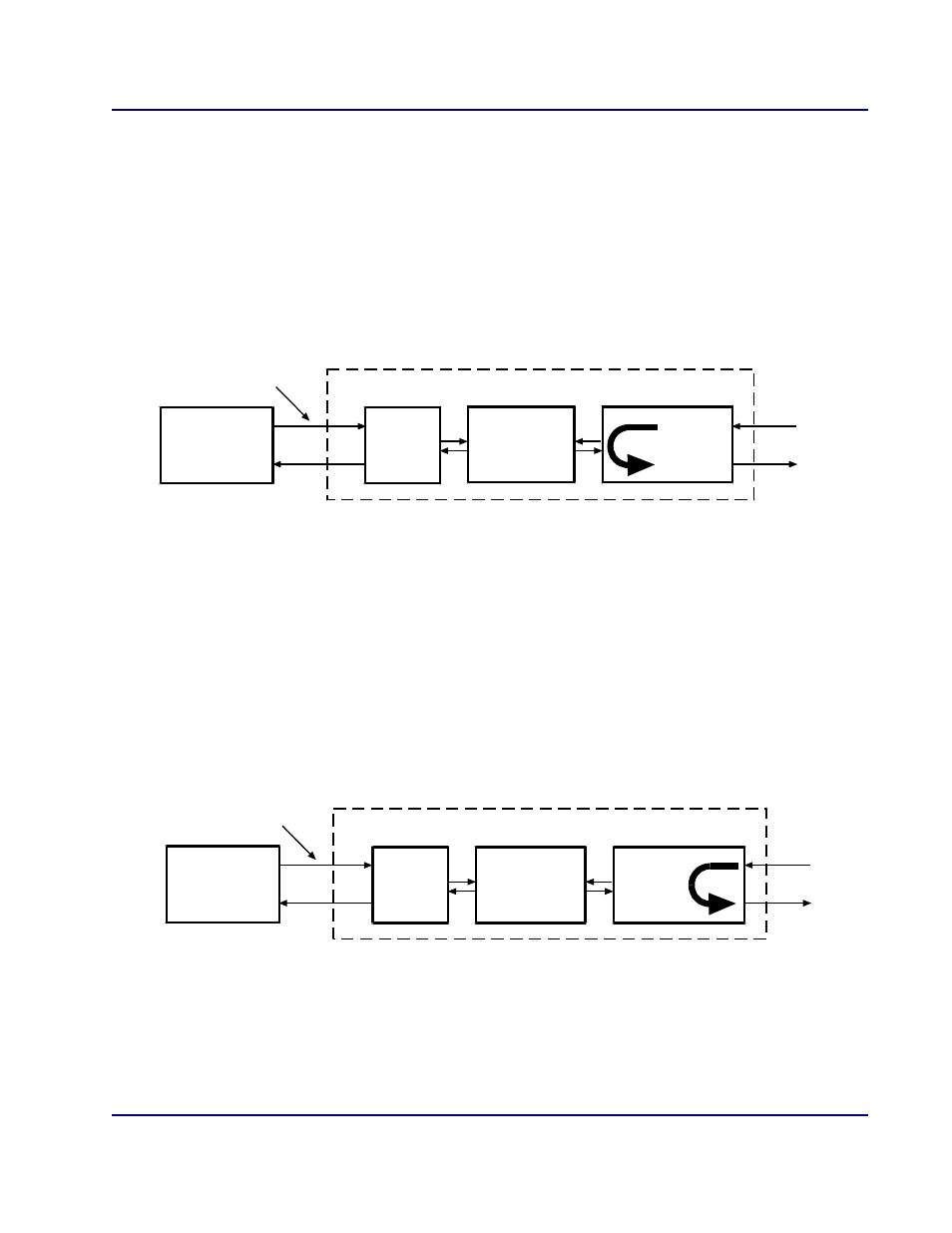

Figure 15-19. Remote T1 Drop Payload Loopup
Send Remote V35 Line Loopup
This command makes the remote Access Bank II perform a line loopback in the V.35 interface. This
takes the received V.35 signal, loops it in theV.35 interface, and sends it back to the V.35 output. See
Figure 15-20.
Syntax: send remote v35 line loopup
Figure 15-20. Remote V.35 Line Loopup
DS0s DS1
Access
Navigator
Framer
CA FDL
Command
Access Bank II
T1 Drop
Payload Loopup
T1 Framer T1 Drop
Time Slot
Interchange
V.35 DS1
Access
Navigator
CA FDL
Command
Access Bank II
V.35
Line Loopup
T1 Interface
Time Slot
Interchange
Framer
