Electrical Installation
Install Controller Card
Install Controller Card
1. Locate Controller B card slot (see Figure 6-34).
2. Straighten card ejector latches (see Figure 6-35), position Controller card in guide rails, and
carefully slide card into slot.
3. Press card ejector latches in toward center of card until card connector mates with backplane
connector.

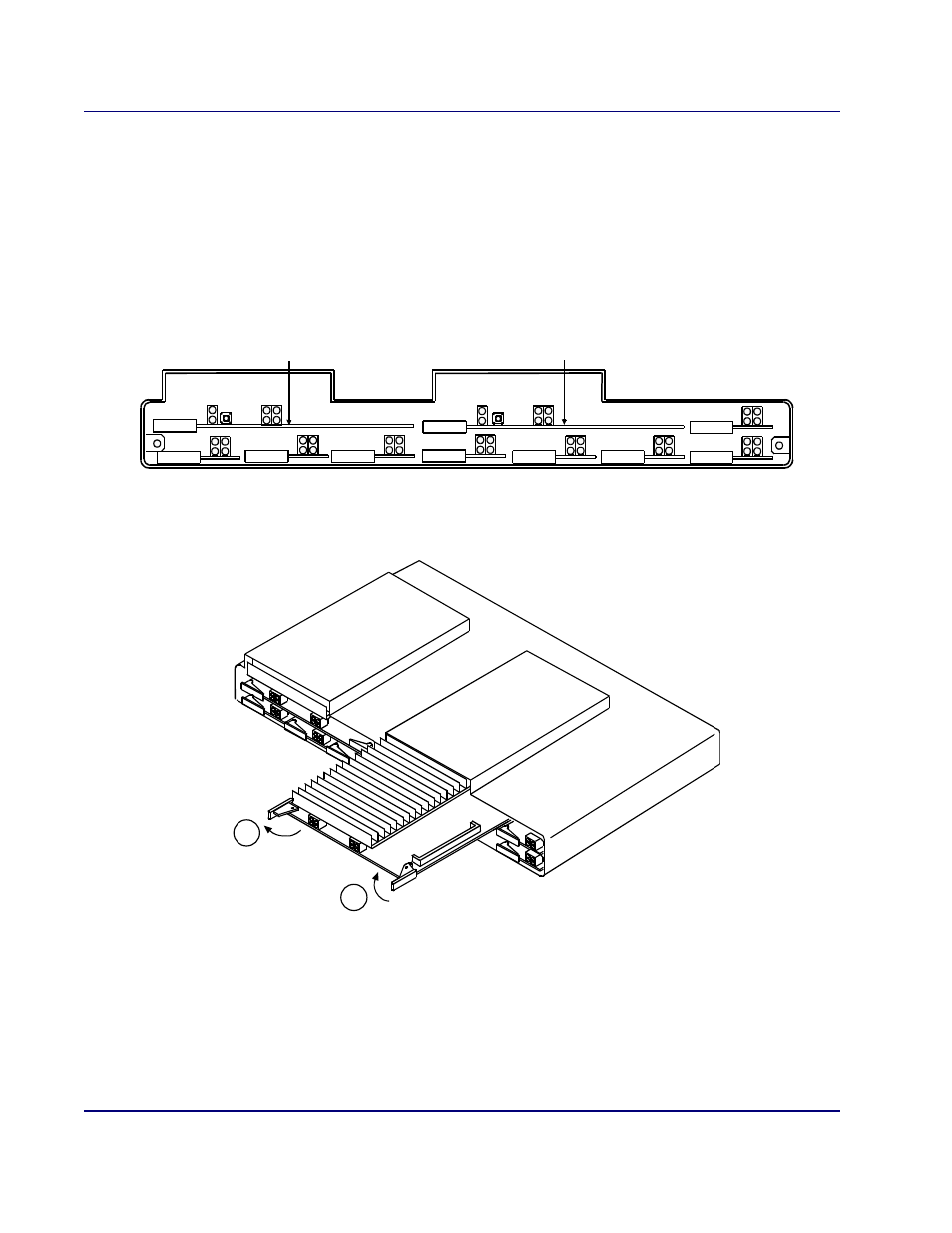

Figure 6-34. Location of Controller Cards
Figure 6-35. Installing Controller Card
Controller A Controller B
Card Ejector
Latches B
A
Eject
Lock
