4-8 August 2003 Access Navigator - Release 1.8
Access Navigator / GR-303 Host with P-Phone
Management Architecture
Management Architecture
Access Navigators provide management access via Ethernet SNMP, Telnet CLI, and RS-232 CLI. Valet™
and NetworkValet™ EMS software provides a graphical user interface (GUI) for SNMP management.
Flow-through provisioning of the remote Access Bank II and testing control over T1 connections reduce
truck rolls and monitors voice and data service availability at customer locations.
IP DS0 Management
The Access Navigator can use IP management commands and dedicated DS0s to manage up to 24
remote Adit 600 terminals. (Up to 14 of the remote Adit 600s may have P-Phone cards.) IP DS0
management uses a colocated Adit 600 terminal with an IP Router card to redirect IP messages between
the Access Navigator’s IP port and the 24 DS0s on a groom DS1. The Access Navigator then cross-
connects the groom DS0s to a dedicated drop DS0 going to each remote Adit 600. Customers wishing
to conserve IP addresses can use an Ethernet hub or router providing port addresses translation (NAT)
to isolate the IP DS0 management network.

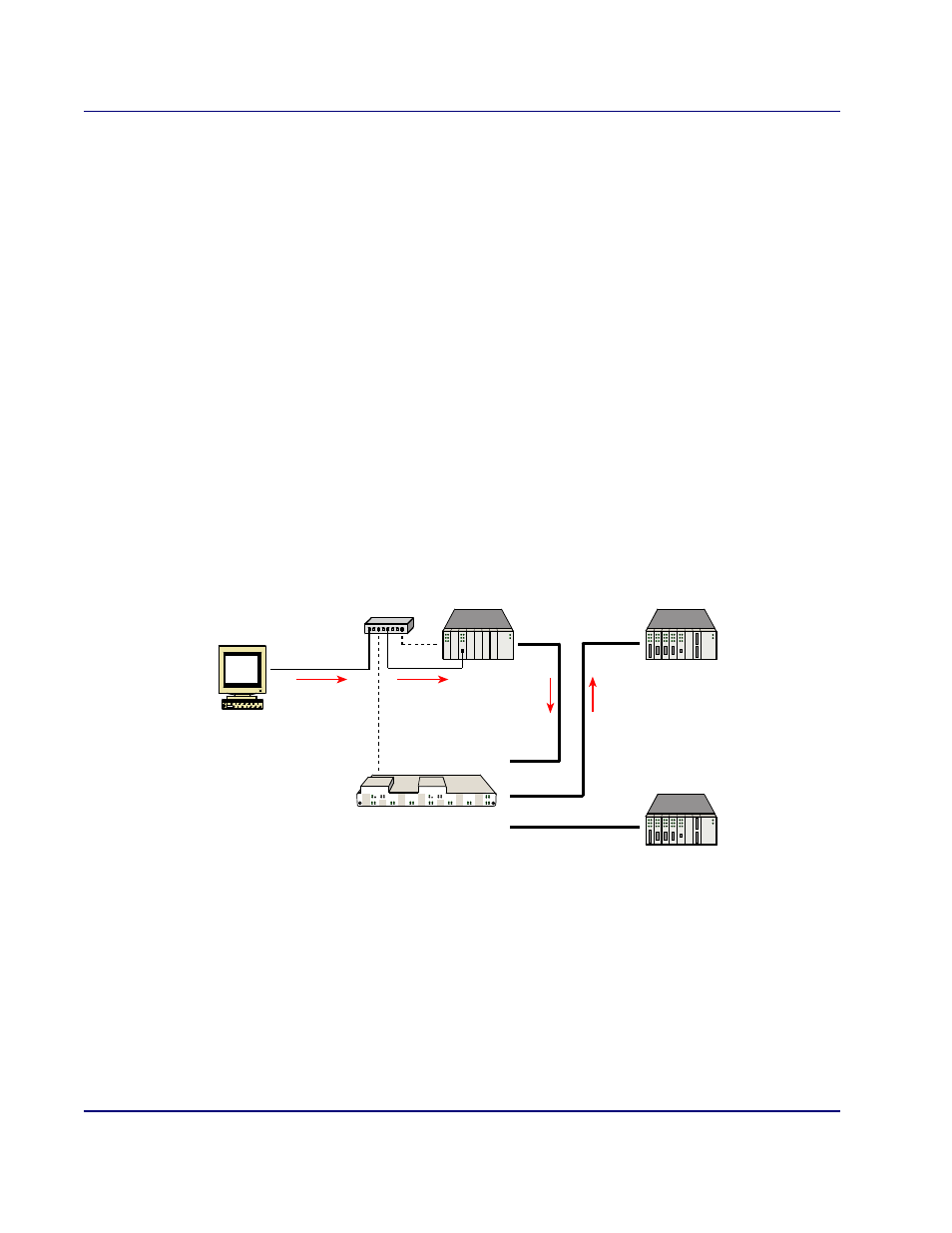

Figure 4-6. Access Navigator IP DS0 Management Architecture
DS 1 ST ATUS
ACCESS NAVIGATOR CARRI ER ACCESS COR PORAT ION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
29 30 31 32
P OWE R A CO (PUSH) CO NTROLL ER A A CTI V E CRI T ACO M AJOR M INOR P OWER ACO (P US H) CO NTROLLE R B A CTI VE C RI T ACO M AJOR M INOR
Adit 60 0
DS1 1
DS0 24
Adit 600
Access
Navigator
Network
Operations
Center
Management
Console
On-Net
Location
Customer
Premises
Adit 6 00
Ethernet
Hub
DS1 24
DS0 24
Adit 6 00
DS1 25
DS0 1
l
l
l
IP = X.X.X.1
IPDS0 = X.X.X.1
Static DS0 Management
Connnections between
Groom and Drop DS1s
l
l
l
IPDS0 = X.X.X.24
Adit 600
Adit 600
IP
Router
(colocated) (remote)
(remote)
Up to 24
Remote Adits Groom
DS1
Drop DS1s
