Provision Remote Access Bank II
Crossconnect Features

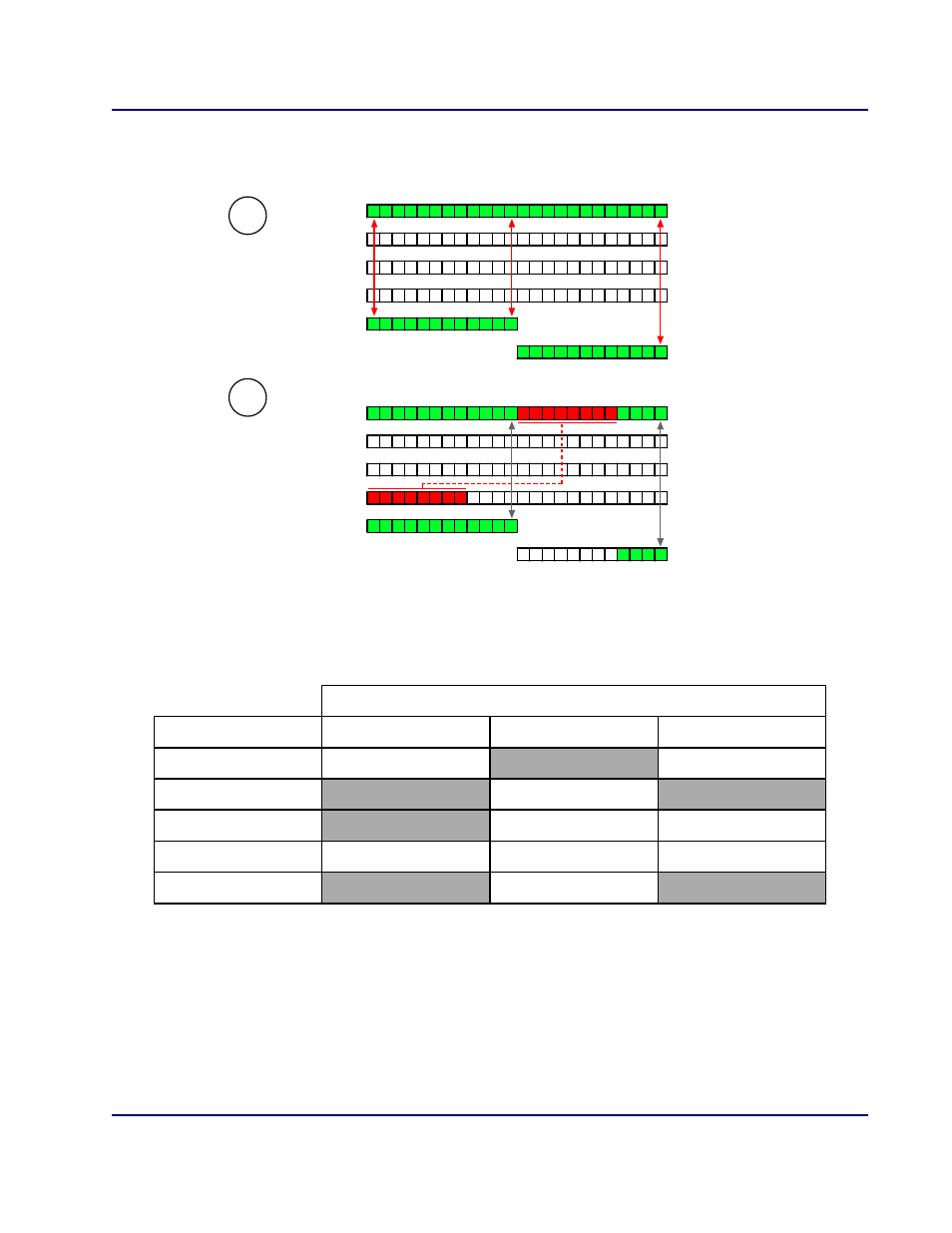

Figure 11-3 Crossconnections (ABII)
Table 11-1 Valid Crossconnect Assignments
Access Navigator Drop DS0 Type
ABII Remote Port Voice Data GR-303
FX analog Valid Valid
RS-232 Valid
SDSL Valid
T1 Drop Valid Valid Valid
V.35 Valid
DS0s
1 24
FX Card 1
RS-232
T1 Drop (or SDSL)
V.35
Default Settings
connect DS0s 1 to 24
to FX channels 1 to 24.
No remote inter-
faces are connected.
A
DS0s
1 24
RS-232
T1 Drop (or SDSL)
V.35
When DS0s are
connected to a
remote interface,
the remaining voice
and GR-303 DS0s
are connected to
the corresponding
FX channels.
B
FX Card 2
FX Card 1
FX Card 2
12
T1
T1
