Provision GR-303 Service
Provisioning TR-08 Service with GR-303 Translation
Provisioning TR-08 Service with GR-303 Translation
n TR-08 Configuration ... 10-6
n Special POTS Cards ... 10-6
n Signaling Translation ... 10-6
n CRV Numbering ... 10-6
n Framing and FDL Settings ... 10-8
n Access Bank I/TR-08 Switch Settings ... 10-8
n Special TR-08 Settings ... 10-8
The Access Navigator/GR-303 includes GR-303 to TR-08 translation to allow simple migration from
older AT&T SLC-96® type digital loop carrier systems with TR-08 interfaces to newer systems with
GR-303 interfaces (see Figure 10-2). In addition, the Access Navigator can perform GR-303 call
concentration and DCS grooming for data services.

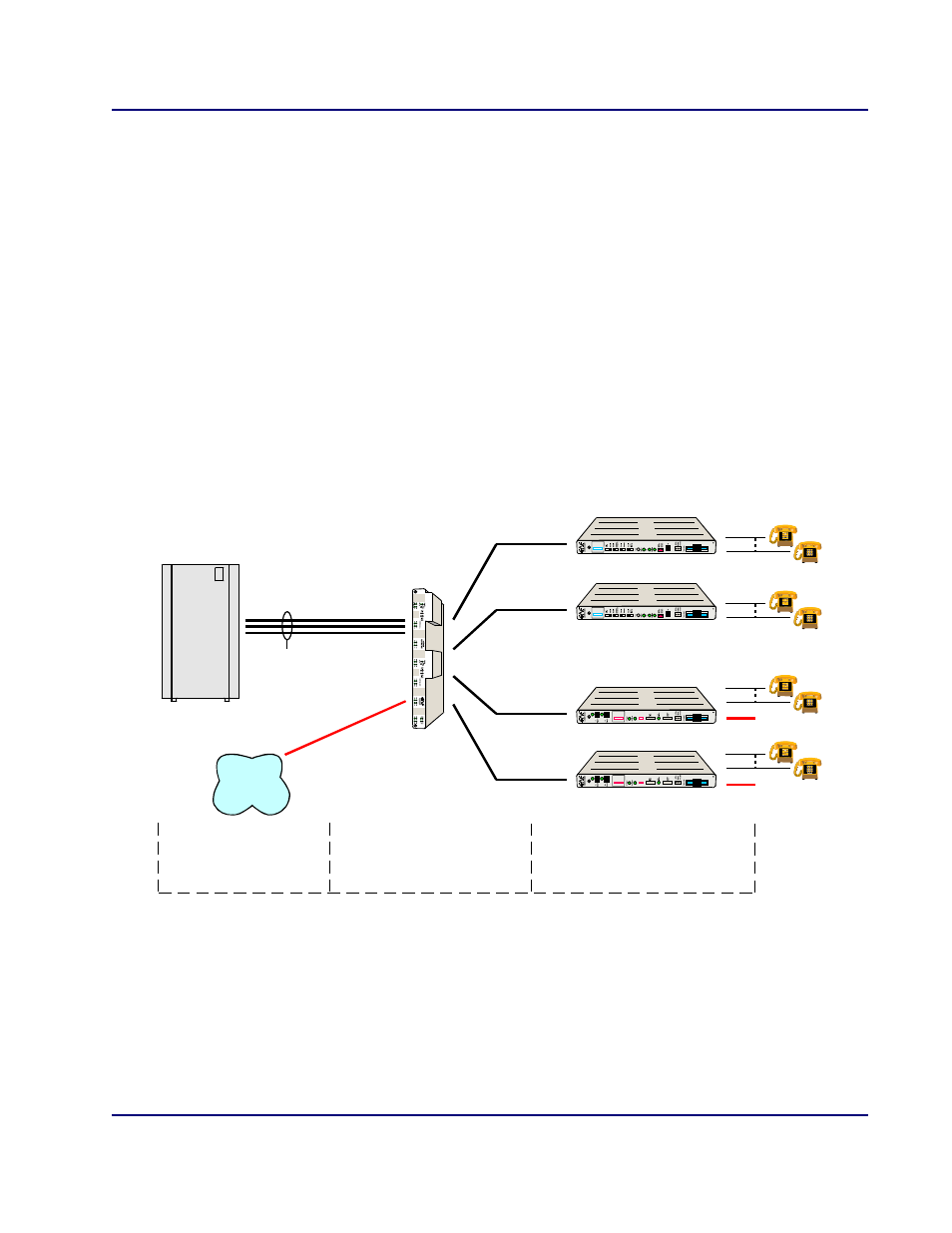

Figure 10-2. Provisioning TR-08 Service to Access Banks
Data
Switch
24
Access Bank I / TR-08
Access
Navigator
GR-303
Voice
Switch
DS1s
GR-303
Interface
Group
Voice
Switch
Drop
DS1s
Shelf B
Shelf C
Shelf A
Shelf D
“B Link”
“C Link”
“A Link”
“D Link”
24
Special POTS
TR-08
Remote Terminals
GR-303 to TR-08
Translation
Switch
Center
• GR-303 Call Concentration
• GR-303 to TR-08 Translation
• TR-08 Mode I (no concentration)
• DCS for Data Grooming
Access Bank II
Data
Data
Data
Groom
DS1s
