Figure 16-16 shows i, Figure 16-16), Figure 16-16 – Carrier Access Access Navigator User Manual
Page 432
16-34
August 2003
Access Navigator - Release 1.8
Maintenance Procedures
Install SIMM on Controller Card

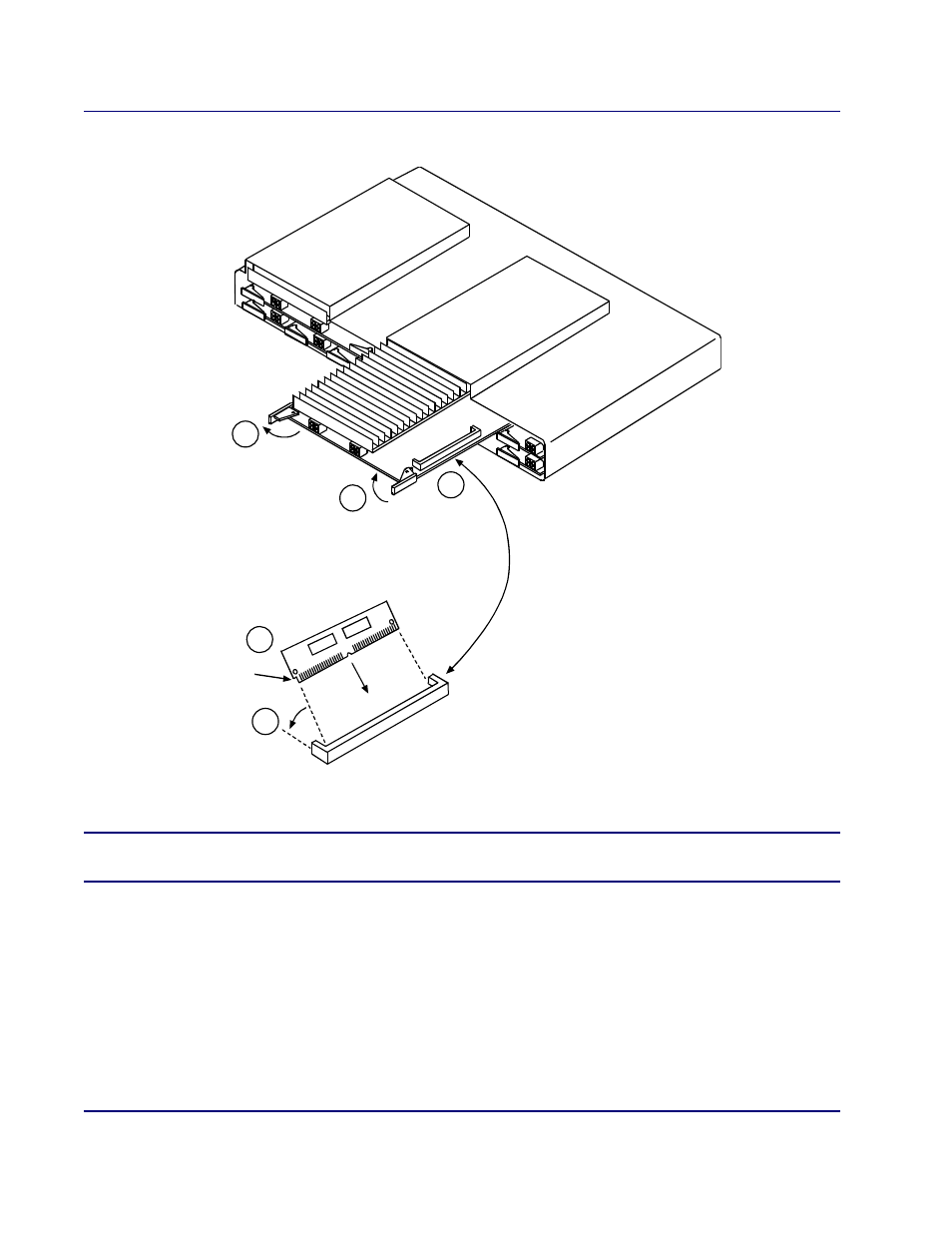

Figure 16-16. Installing Controller Card SIMM
NOTE:
If status indications are not correct, refer to Diagnostics & Troubleshooting on
.
9. Verify power-on status of upgraded Controller. The LED indicators should be as follows:
Requirement:
Upgraded CONTROLLER POWER indicator lights green.
10. Wait two minutes for upgraded Controller to learn system settings.
11. Verify upgraded Controller status by entering the following command:
status equipment
Requirement:
Upgraded Controller status is “Standby”.
12. Put upgraded Controller into active mode by entering following command:
Card Ejector
Latches
C
D
Notch
SIMM
SIMM
Socket
E
A
SIMM
Socket
B
Eject
Lock
