Diagnostics & Troubleshooting
Send Remote V35 TSI Equipment Loopup
Send Remote V35 TSI Equipment Loopup
This command makes the remote Access Bank II perform an equipment loopback on the V.35 signal.
This takes the received DS0s from the V.35 equipment interface, loops them in the Time Slot
Interchange (TSI), and sends them back to the V.35 output. See Figure 15-21.
Syntax: send remote v35 tsi equipment loopup

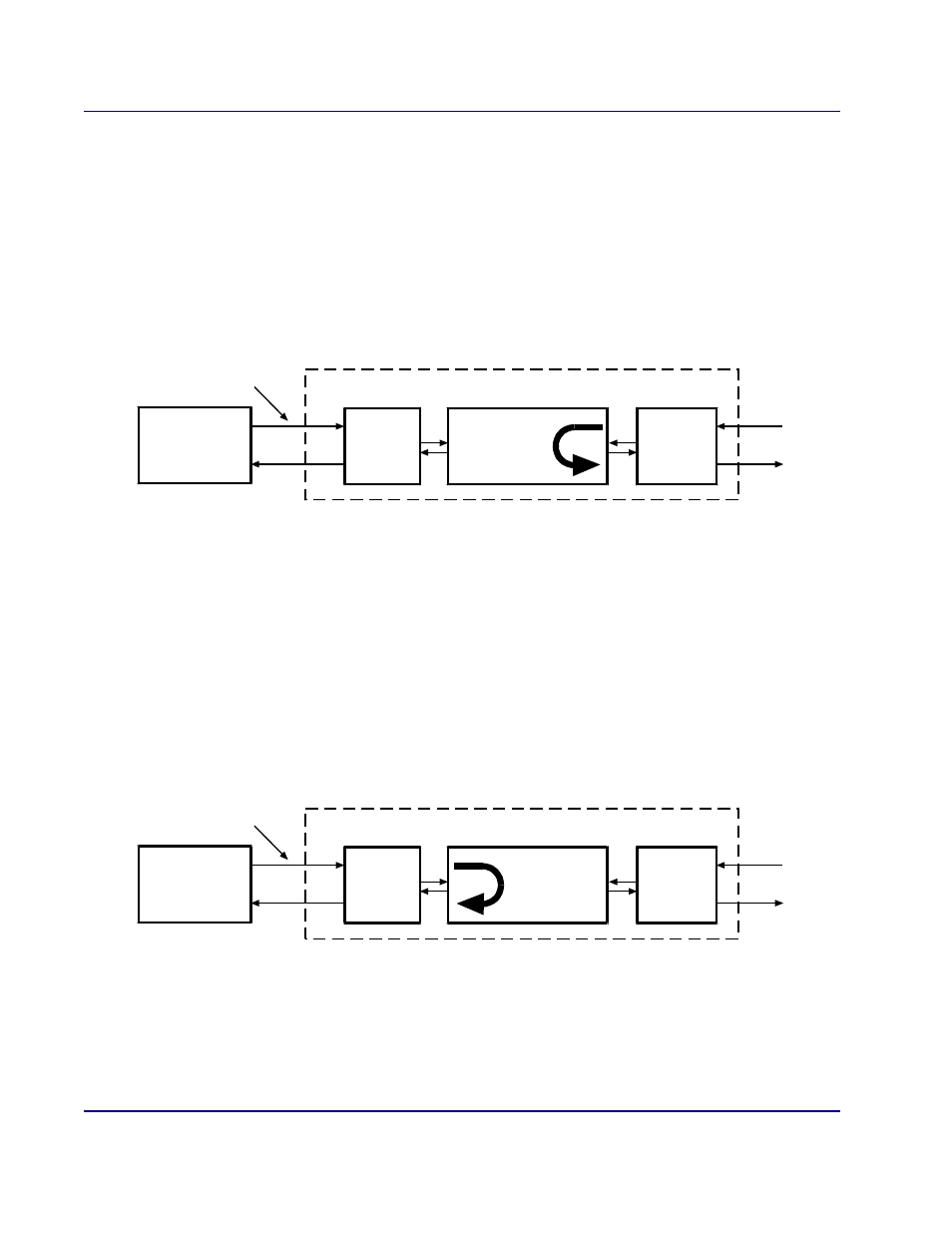

Figure 15-21. Remote V.35 TSI Equipment Loopup
Send Remote V35 TSI Network Loopup
This command makes the remote Access Bank II perform a network loopback on the V.35 data. This
takes the received V.35 DS0s from the DS1, loops them in the Time Slot Interchange (TSI), and sends
them back to the DS1 output. See Figure 15-22.
Syntax: send remote v35 tsi network loopup
Figure 15-22. Remote V.35 TSI Network Loopup
V.35 DS1
Access
Navigator
CA FDL
Command
Access Bank II
V.35
TSI Equipment Loopup
T1 Interface
Time Slot
Interchange
Framer
V.35 DS1
Access
Navigator
CA FDL
Command
Access Bank II
V.35
TSI Network Loopup
T1 Interface
Time Slot
Interchange
Framer
