Access Navigator - Release 1.8
August 2003
6-13
Electrical
Installation
Connect DSX-1 Cables to Access Navigator
Attach Ferrite Beads
WARNING!
NEBS R
EQUIREMENT
. D
O
NOT
CONNECT
THIS
EQUIPMENT
DIRECTLY
TO
METALLIC
TIP
-
AND
-
RING
OUTSIDE
PLANT
CONDUCTORS
. T
HIS
EQUIPMENT
CAN
ONLY
BE
USED
FOR
INTRA
-
BUILDING
(
INSIDE
PLANT
)
INSTALLATION
IN
A
CENTRAL
OFFICE
OR
CUSTOMER
PREMISES
.
1. Obtain two ferrite beads to attach each DSX-1 cable (see Figure 6-6).
2. Position ferrite beads for most convenient cable dressing and wire tying (see example in Figure
6-6). Location is not critical.
3. Open the snap-on ferrite beads along hinge cover (see Figure 6-6, Detail A).
4. Fold ferrite bead hinge covers together over DSX-1 cables. Press covers together until they snap
together.

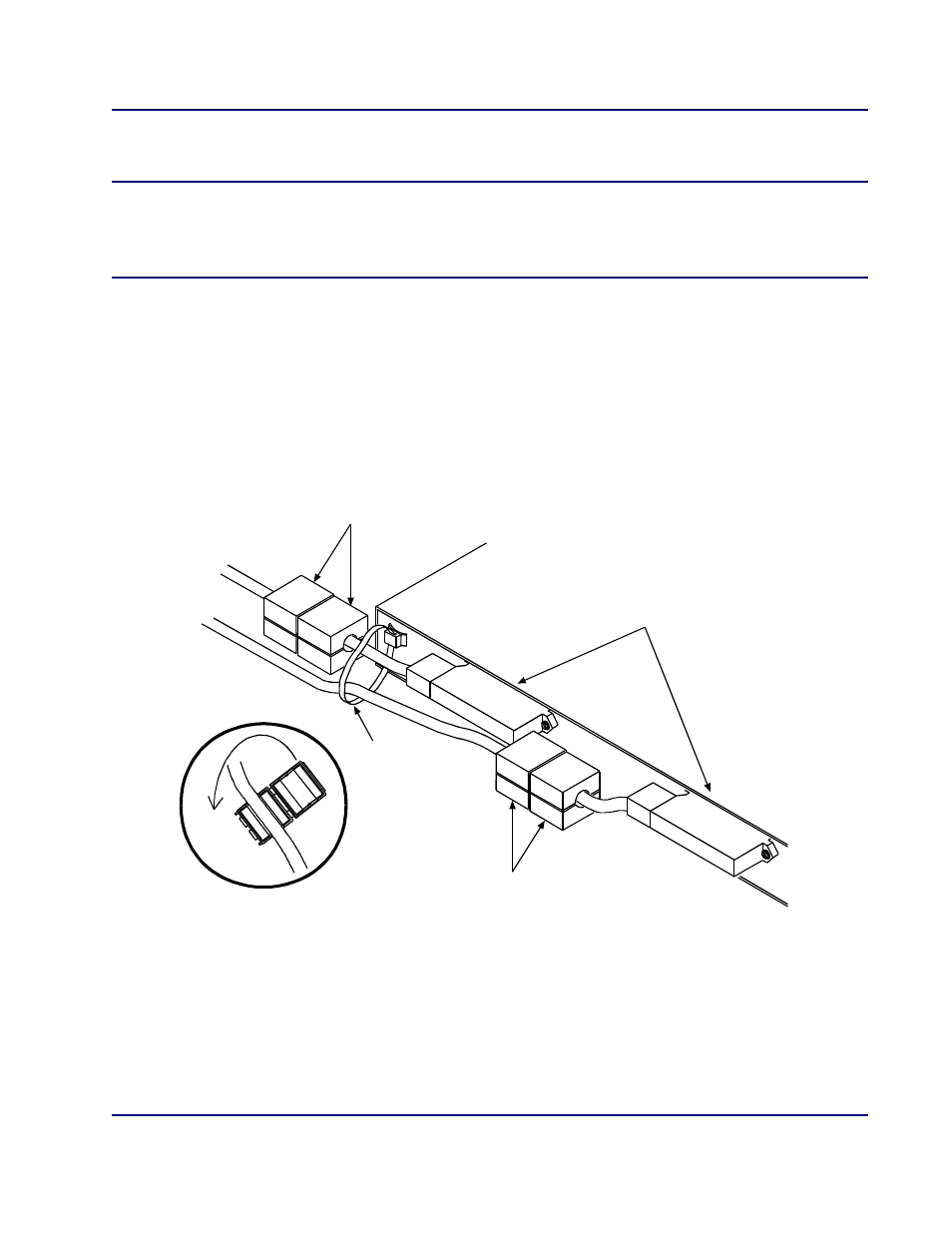

Figure 6-6. Attaching Ferrite Bead RF Suppressors
Detail A
Ferrite
Beads
Ferrite
Beads
Wire
Tie
DSX-1 Cable
Connectors
