Access Navigator - Release 1.8
August 2003
5-21
Physical
Installation
Attach Access Navigator to Plywood

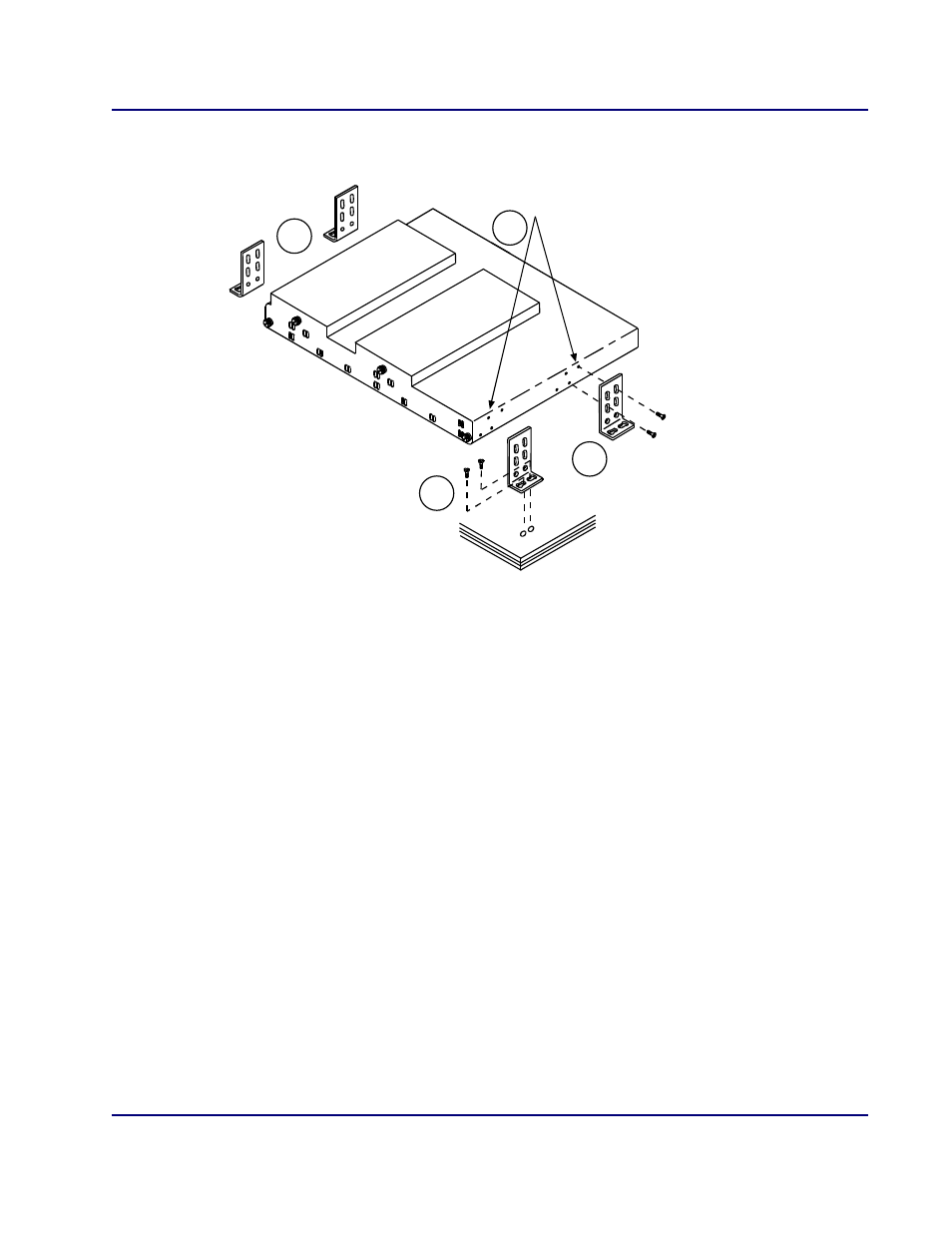

Figure 5-13. Wall Mount Bracket Installation
Postion brackets here
for wall mount.
Mounting
Brackets
Fasten brackets to
Access Navigator
with 6-32 x 3/8"
undercut screws
(two per bracket).
C
A
D
Fasten brackets to
Plywood with
#8 x 3/4 inch
pan-head
wood screws
(two per bracket).
B
