18-86
August 2003
Access Navigator - Release 1.8
CLI Language Reference
CLI Command List
NOTE:
To check remote loopback status, use the read remote loopback
command. See Read Remote Loopback on
.
Purpose:
Sends an out-of-band (FDL) message to a remote Access Bank II over the Access
Navigator DS1. It is used to verify T1 signal processing in the Access Bank II. Payload
loopbacks can be used with unframed PRBS and QRSS test patterns (see Send DS1
Payload
).
When the operator enters a send remote command, the Access Navigator transmits
a message over the Carrier Access FDL management channel of the drop DS1. The
Access Navigator’s drop DS1 is the Access Bank’s T1 connection.
The send remote t1 payload loopup command should cause the remote Access
Bank II to perform a payload loopback. This takes the received DS0s from the T1,
loops them in the framer, and sends them back to the T1 output (see Figure 18-16). To
loopdown the interface, use the send remote loopdown command.

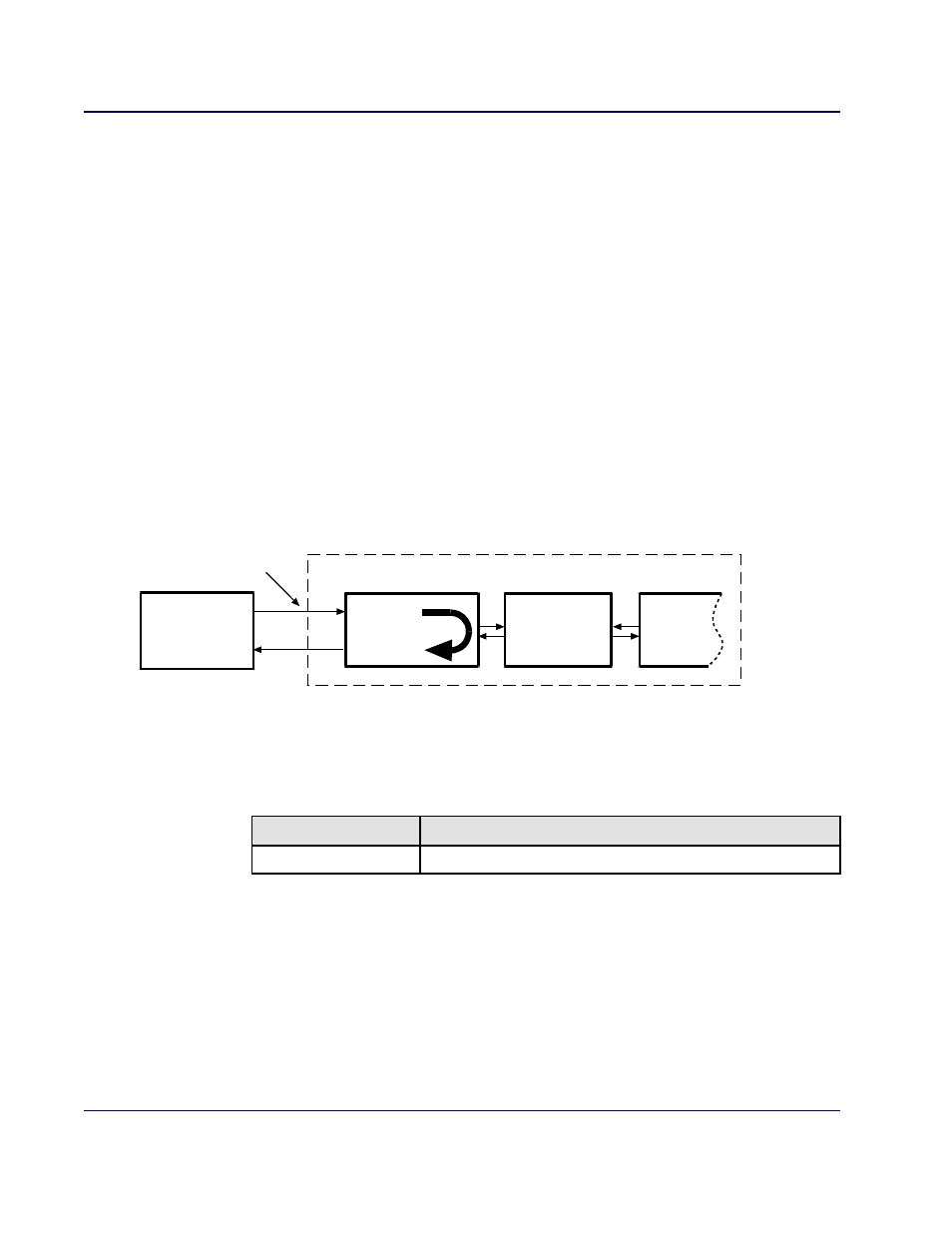

Figure 18-16. Remote T1 Payload Loopup
Security:
Level 2 (operator)
Syntax:
send remote
Example:
send remote 9 t1 payload loopup
Message:
Loop command sent to remote.
Send Remote T1 TSI Loopup
NOTE:
This command applies only to a remote Access Bank II connected
to the Access Navigator by a DS1 using Carrier Access FDL management
protocol. For normal operation, the loopback must be disabled by the send
Field
Description
n
DS1 number, 1 to 32
DS1
Access
Navigator
Framer
CA FDL
Command
Access Bank II
T1
Payload Loopup
T1
DS0s
Time Slot
Interchange
