FDL Management
FDL Management
When T1 Type I lines are available, the Access Navigator can use the ESF Faciltiy Data Link channel
to manage remote Access Bank II and Adit 600 terminals.

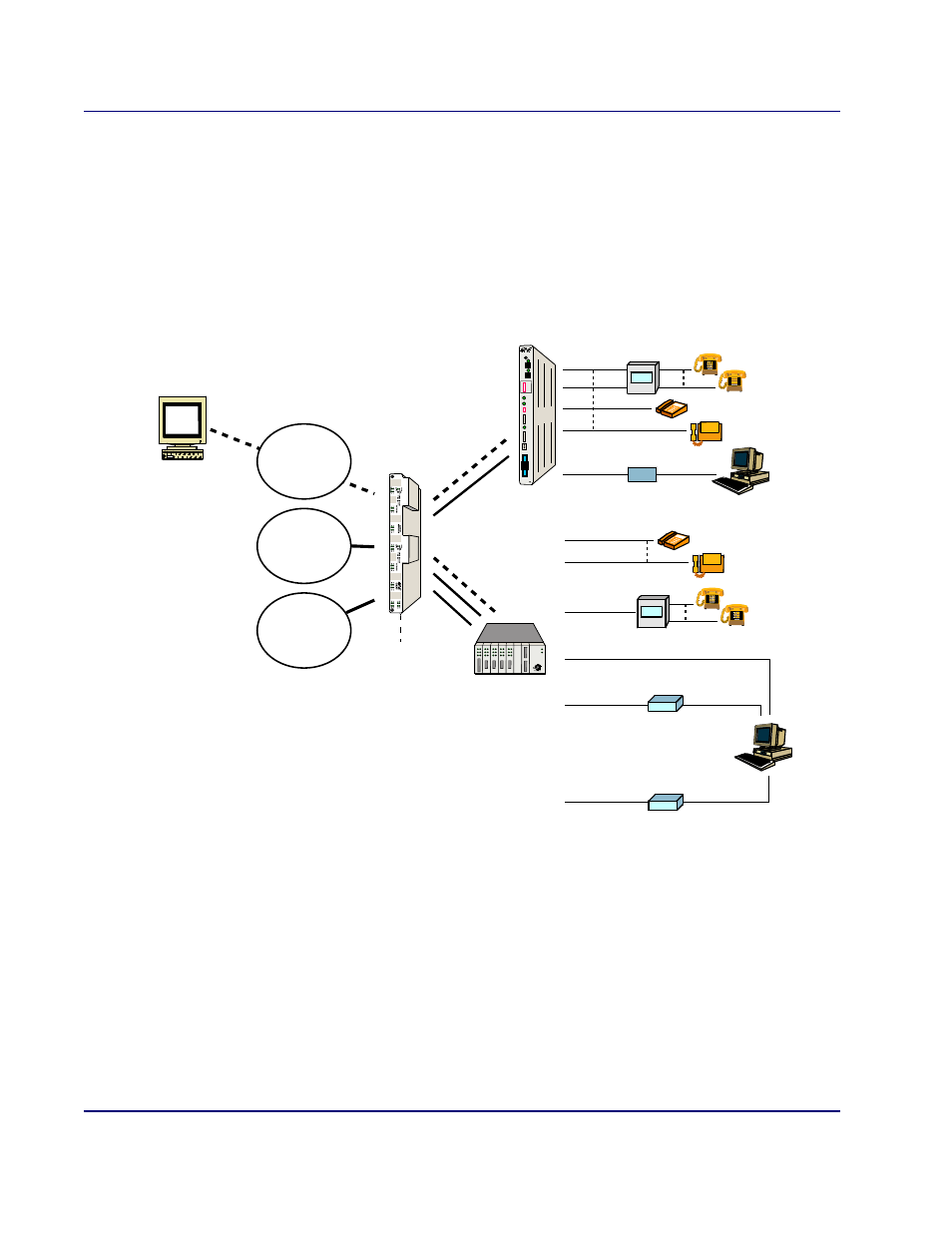

Figure 3-6. Access Navigator FDL Management Architecture
