18-82 August 2003 Access Navigator - Release 1.8
CLI Language Reference
CLI Command List
Send Remote RS232 Line Loopup
NOTE: This command applies only to a remote Access Bank II connected
to the Access Navigator by a DS1 using Carrier Access FDL management
protocol. For normal operation, the loopback must be disabled by the send
remote
loopdown command.
NOTE: Only one port of the Access Bank II can be looped up at a time. If a
loopup command is received for a second port, the first port will be looped down
automatically before the second port is looped up.
NOTE: To check remote loopback status, use the read remote loopback
command. See Read Remote Loopback on page 18-51 .
Purpose: Sends an out-of-band (FDL) message to a remote Access Bank II over the Access
Navigator DS1. It is used to verify RS-232 signal processing.
When the operator enters a send remote command, the Access Navigator transmits
a message over the CAC FDL channel of the drop DS1. The Access Navigator’s drop
DS1 is the Access Bank’s T1 connection.
The send remote rs232 line loopup command should cause the remote Access
Bank II to perform a line loopback in the RS-232 interface. This takes the received RS-
232 data signal, loops it back in the RS-232 interface, and sends it back to the RS-232
output (see Figure 18-13). To loopdown the interface, use the send remote loopdown
command.

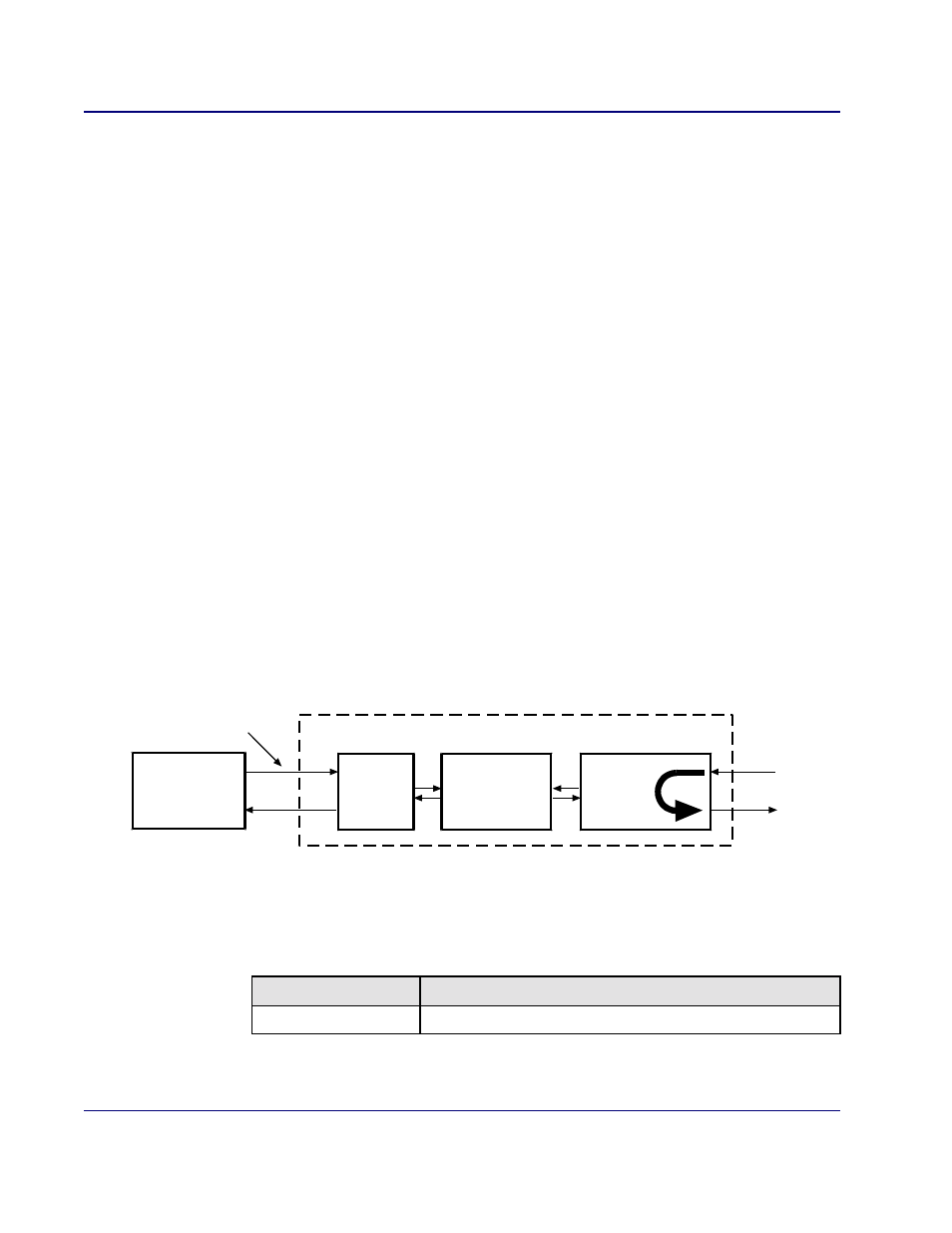

Figure 18-12. Remote RS-232 Line Loopup
Security: Level 2 (operator)
Syntax: send remote rs232 line loopup
Example: send remote 9 rs232 line loopup
Field Description
n DS1 number, 1 to 32
RS-232
Line Loopup
RS-232 DS1
Access
Navigator
CA FDL
Command
Access Bank II
T1 Interface
Time Slot
Interchange
Framer
