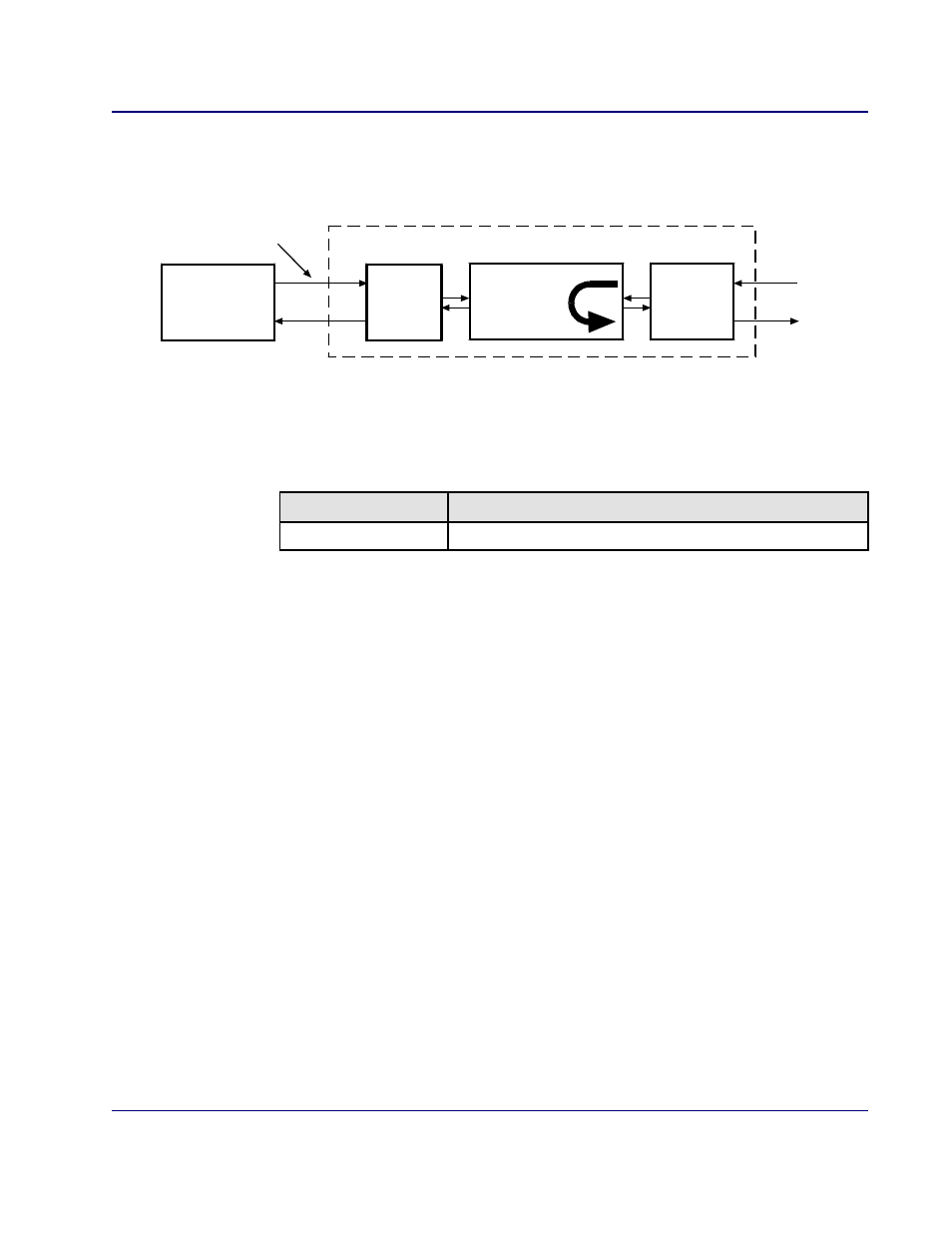

Figure 18-20. Remote T1 Drop TSI Loopup
Security:
Level 2 (operator)
Syntax:
send remote
Example:
send remote 9 t1drop tsi loopup
Message:
Loop command sent to remote.
Send Remote V35 Line Loopup
NOTE:
This command applies only to a remote Access Bank II connected
to the Access Navigator by a DS1 using Carrier Access FDL management
protocol. For normal operation, the loopback must be disabled by the send
remote
loopdown command.
NOTE:
Only one port of the Access Bank II can be looped up at a time. If a
loopup command is received for a second port, the first port will be looped down
automatically before the second port is looped up.
NOTE:
To check remote loopback status, use the read remote loopback
command. See Read Remote Loopback on
.
Purpose:
Sends an out-of-band (FDL) message to a remote Access Bank II over the Access
Navigator DS1. It is used to verify V.35 signal processing.
When the operator enters a send remote command, the Access Navigator transmits
a message over the Carrier Access FDL management channel of the drop DS1. The
Access Navigator’s drop DS1 is the Access Bank’s T1 connection.
The send remote v35 line loopup command should cause the remote Access
Bank II to perform a line loopback in the V.35 interface. This takes the received V.35
Field
Description
n
DS1 number, 1 to 32
DS1
Access
Navigator
Framer
CA FDL
Command
Access Bank II
T1
Framer
T1 Drop
Time Slot
Interchange
