16-10 August 2003 Access Navigator - Release 1.8
Maintenance Procedures
Replace Protected Controller Card

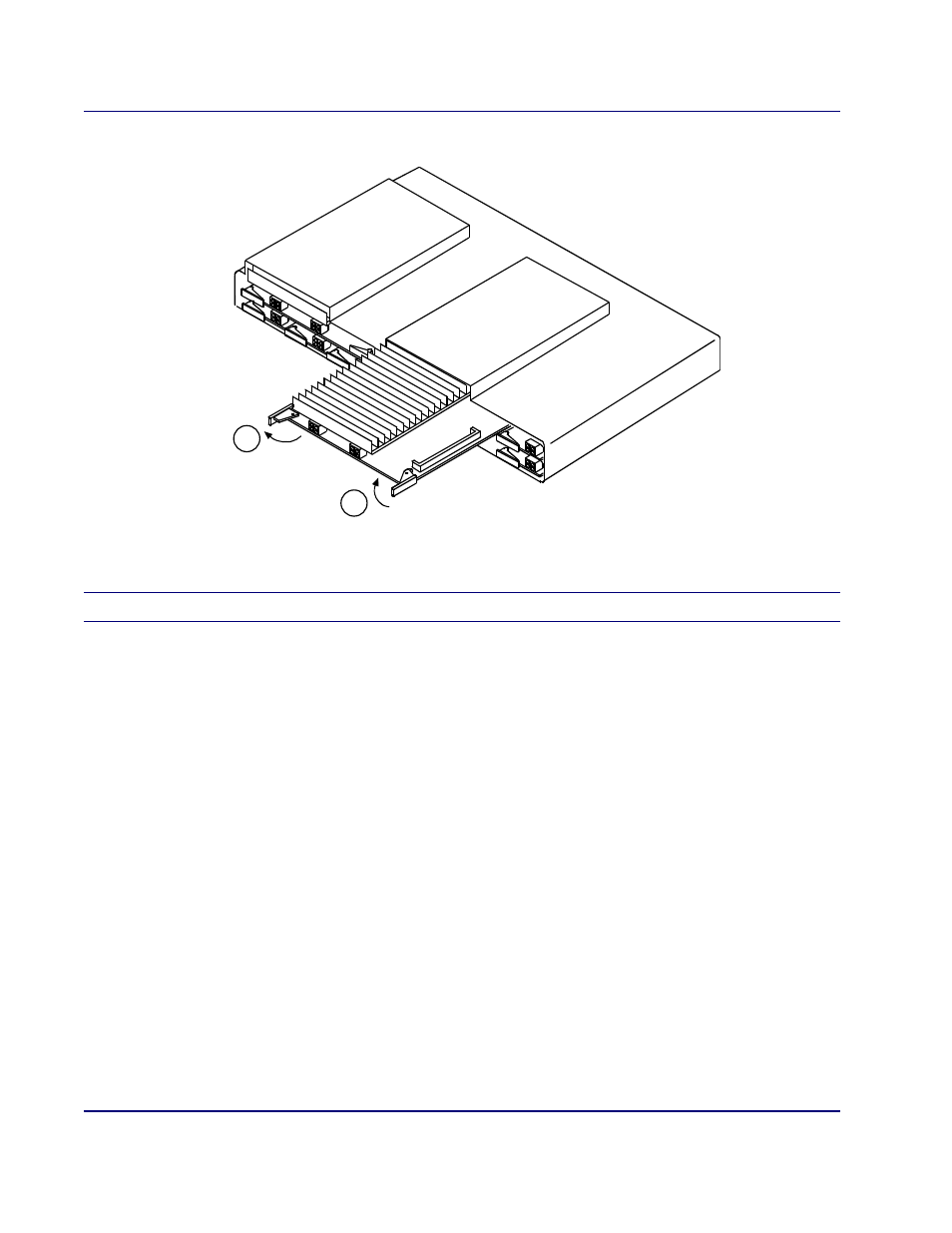

Figure 16-4. Installing and Removing Controller Card
NOTE:
The example in Figure 16-4 shows installation and removal of Controller B.
3. Press standby Controller card ejector latches toward outside of card until card connector releases
from backplane connector (see A in Figure 16-4).
4. Slide old standby Controller out of card slot and set aside for return to repair facility.
5. Remove new Controller card from anti-static bag.
6. Straighten card ejector latches (see A in Figure 16-4), position new Controller card in guide rails,
and carefully slide into old Controller card slot.
7. Press card ejector latches in toward center of card (see B in Figure 16-4) until card connector mates
with backplane connector.
Card Ejector
Latches B
A
Eject
Lock
