Access Navigator / GR-303 Host with P-Phone
FDL Management
FDL Management
When T1 Type I lines are available, the Access Navigator can use the ESF Faciltiy Data Link to manage
remote Access Bank II and Adit 600 terminals. (FDL can not be used to manage remote Adit 600s with
P-Phone cards.)

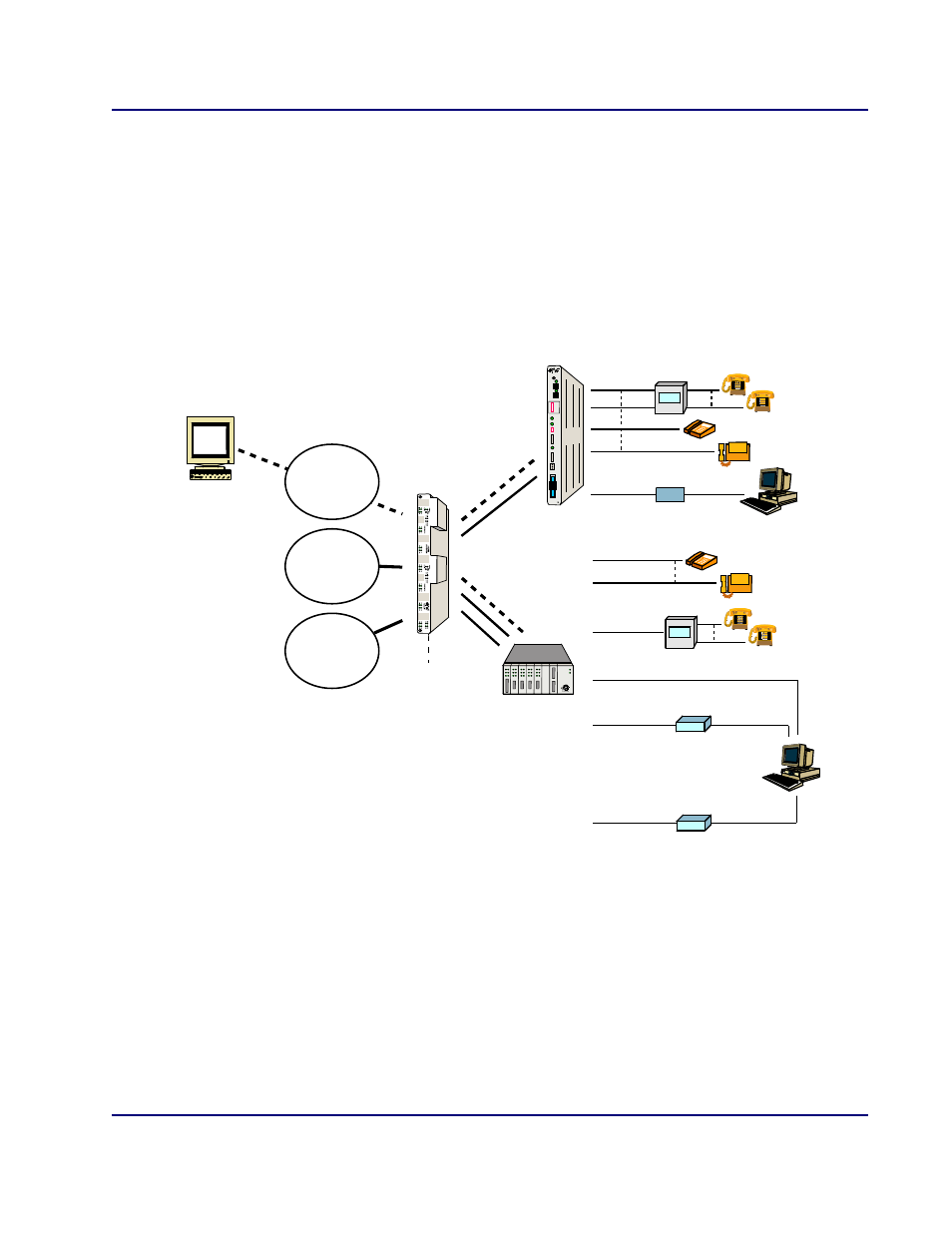

Figure 4-7. Access Navigator FDL Management Architecture
