Electrical Installation
Plug Alarm Input Connector into Access Navigator
Plug Alarm Input Connector into Access Navigator
Plug connector into Access Navigator Alarm In connector.
• Inspect connectors to ensure that no bare copper wire is exposed.

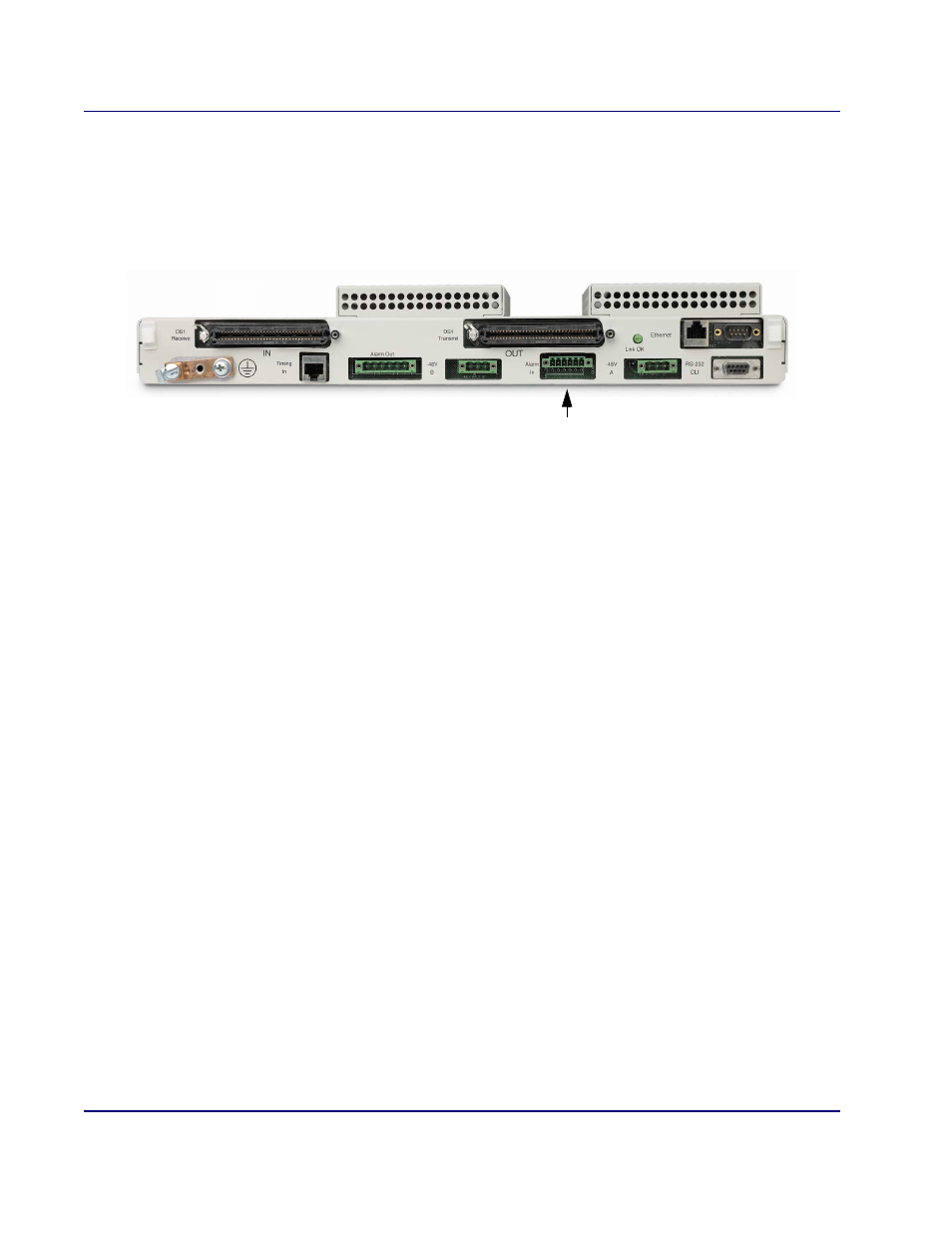

Figure 6-22. Location of Rear Panel Alarm Input Connector
Alarm In
Connector
