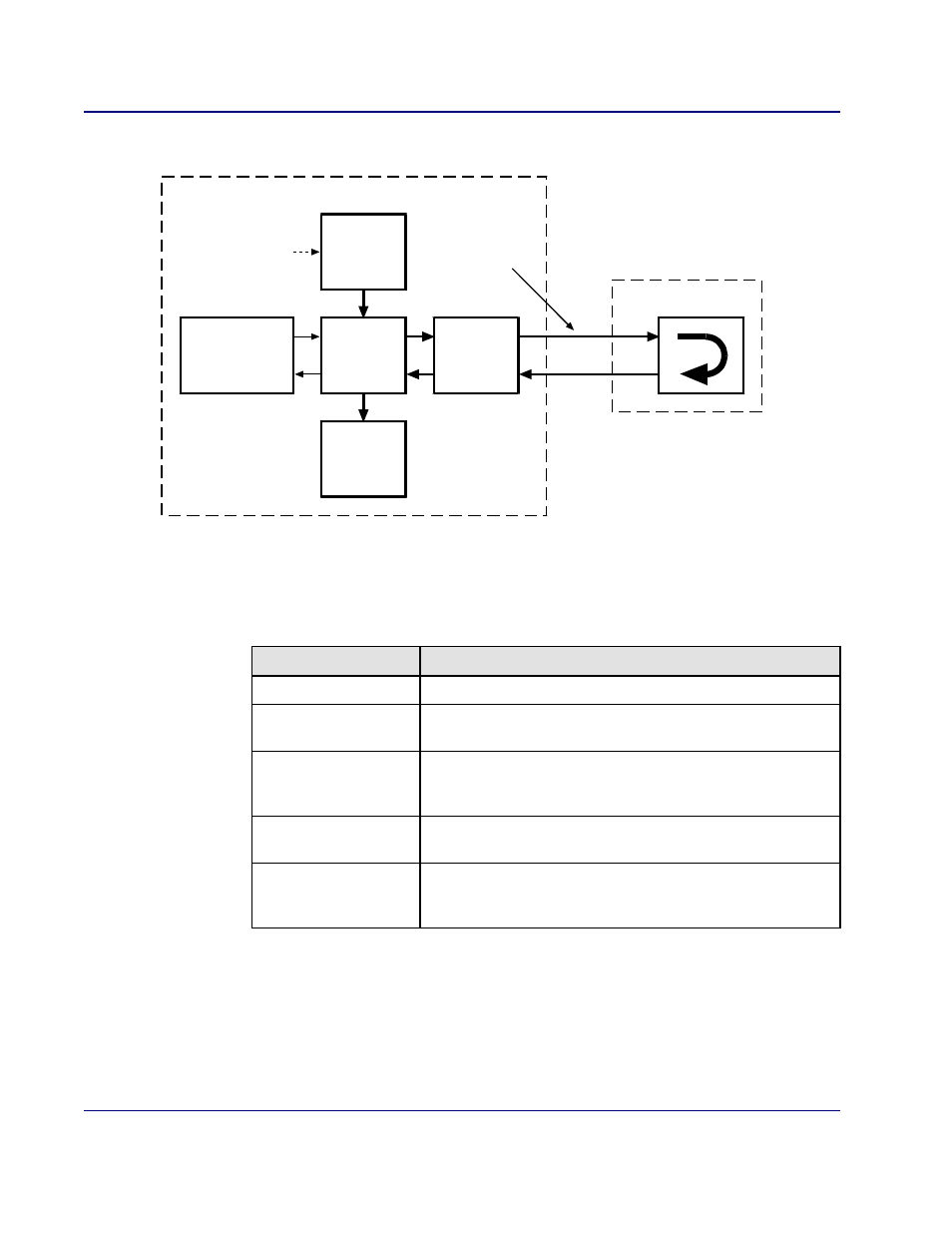

Figure 18-6. Send DS1 Line Pattern with BER Test
Security:
Level 2 (operator)
Syntax:
send ds1
Example:
set ds1 9 line p2e15 test
The CLI will provide a progress message indicating the success (ok) or failure (no
sync) of the command, as in the following samples.
Field
Description
n
DS1 number, 1 to 32, or a range of numbers such as 2-8.
p2e11
Send 2
11
–1 pattern with a maximum of 10 consecutive zeros and
11 consecutive ones. (Minimum stress testing.)
p2e15
Send 2
15
–1 pattern with a maximum of 14 consecutive zeros and
15 consecutive ones. (Provides maximum number of consecutive
zeros permissible in framed, non-B8ZS testing.)
p2e23
Send 2
23
–1 pattern with a maximum of 22 consecutive zeros and
23 consecutive ones. (Maximum stress testing.)
qrss
Send QRSS pattern (a modified 2
20
–1) with a maximum of 14
consecutive zeros and 20 consecutive ones. (Common stress test
for T1 data applications.)
DS1
Line
Interface
Unit
Framer
Access Navigator
IN
OUT
Time Slot
Interchange
Code
Generator
CSU
Access Bank II
Bit Error
Rate
Tester
Line
Pattern
with BERT
Unframed
Pattern
Far End
Line Loopup
