18-76 August 2003 Access Navigator - Release 1.8
CLI Language Reference
CLI Command List

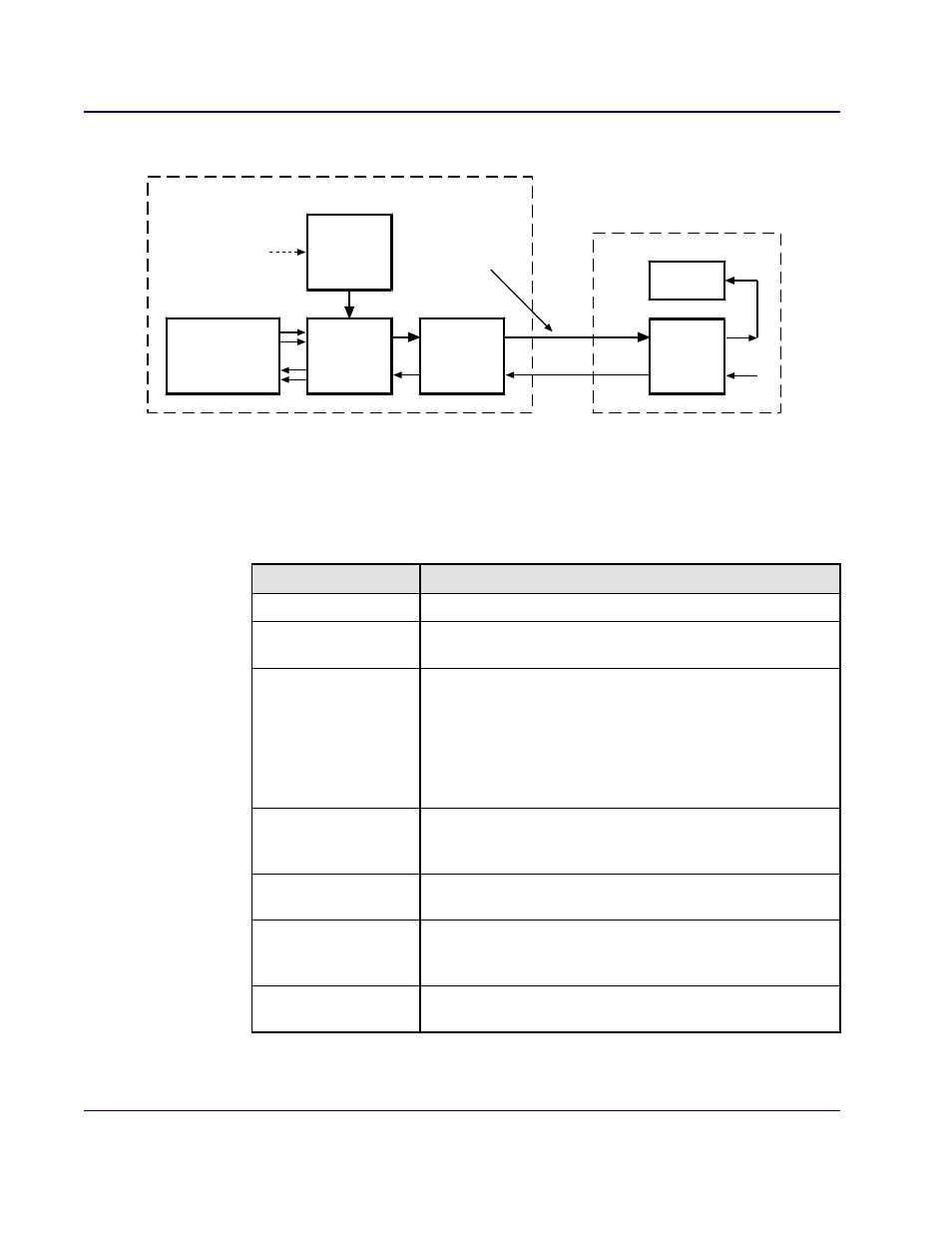

Figure 18-10. Send DS1 Payload Pattern
Security: Level 2 (operator)
Syntax: send ds1 payload
<allones|allzeros|f1in8|p2e11|p2e15|p2e23|qrss>
Field Description
n DS1 number, 1 to 32, or a range of numbers such as 2-8.
allones Send framed all-ones pattern. This can be used as a “keep alive”
signal, idle code, and in measuring the T1 power level.
allzeros Send framed all-zeros pattern. This can be used to test T1 circuits
for B8ZS clear channel capability and to find equipment
incorrectly set to AMI line code.
Note: When using an all-zeros pattern, a T1 test set (such as a
T-Berd 224 or Sunset T3) must be used to monitor for errors in
the all-zeros pattern from the Access Navigator or looped back
from a far-end network element.
f1in8 Send framed 1-in-8 pattern (also called a 1-and-7 pattern) in
which each payload byte contains the bit pattern 01000000.
(Minimal ones density test for T1 circuits with AMI coding.)
p2e11 Send 2
11
–1 pattern with a maximum of 10 consecutive zeros and
11 consecutive ones. (Minimum stress testing.)
p2e15 Send 2
15
–1 pattern with a maximum of 14 consecutive zeros and
15 consecutive ones. (Provides maximum number of consecutive
zeros permissible in framed, non-B8ZS testing.)
p2e23 Send 2
23
–1 pattern with a maximum of 22 consecutive zeros and
23 consecutive ones. (Maximum stress testing.)
DS1
Line
Interface
Unit
Framer
Access Navigator
Time Slot
Interchange
Code
Generator
Payload
Pattern
Command
IN
OUT
CSU
Far End
Bit Error Rate Test
DS0s
BERT
Payload
Test
Framed
Pattern
