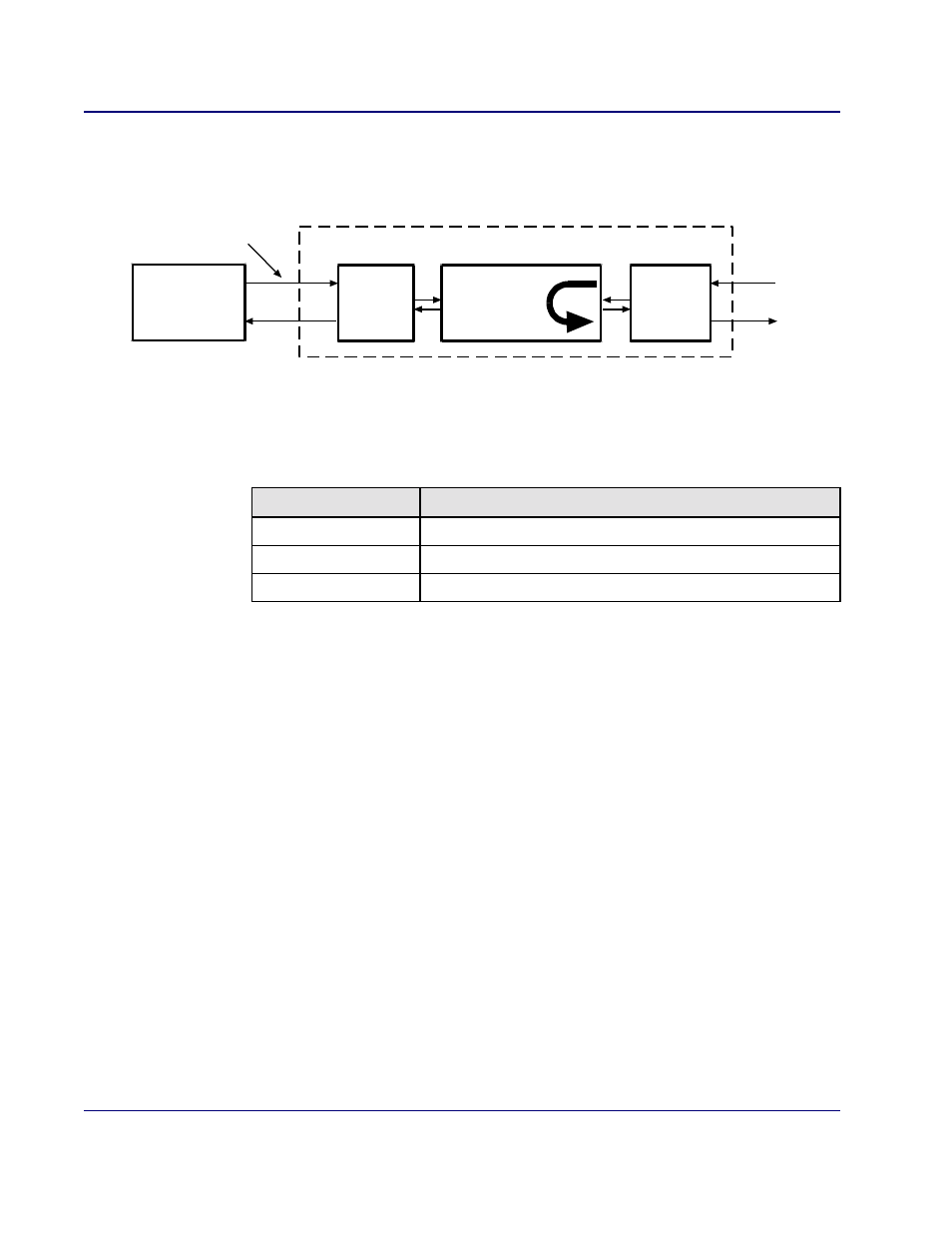

Figure 18-14. Remote RS-232 TSI Equipment Loopup
Security:
Level 2 (operator)
Syntax:
send remote
Example:
send remote 9 rs232 tsi equipment loopup
Example:
send remote 9 rs232 tsi network loopup
Message:
Loop command sent to remote.
Send Remote SDSL Payload Loopup
NOTE:
This command applies only to a remote Access Bank II connected
to the Access Navigator by a DS1 using Carrier Access FDL management
protocol. For normal operation, the loopback must be disabled by the send
remote
loopdown command.
NOTE:
Only one port of the Access Bank II can be looped up at a time. If a
loopup command is received for a second port, the first port will be looped down
automatically before the second port is looped up.
NOTE:
To check remote loopback status, use the read remote loopback
command. See Read Remote Loopback on
.
Purpose:
Sends an out-of-band (FDL) message to a remote Access Bank II over the Access
Navigator DS1. It is used to verify SDSL signal processing.
Field
Description
n
DS1 number, 1 to 32.
equipment
Loopup the equipment side
network
Loopup the network side
RS-232
TSI Equipment Loopup
RS-232
DS1
Access
Navigator
CA FDL
Command
Access Bank II
T1
Interface
Time Slot
Interchange
Framer
