Electrical Installation
Plug Output Alarm Connector into Access Navigator
Plug Output Alarm Connector into Access Navigator
Plug connector into Access Navigator Alarm Out connector (see Figure 6-18).
• Inspect connectors to ensure that no bare copper wire is exposed.

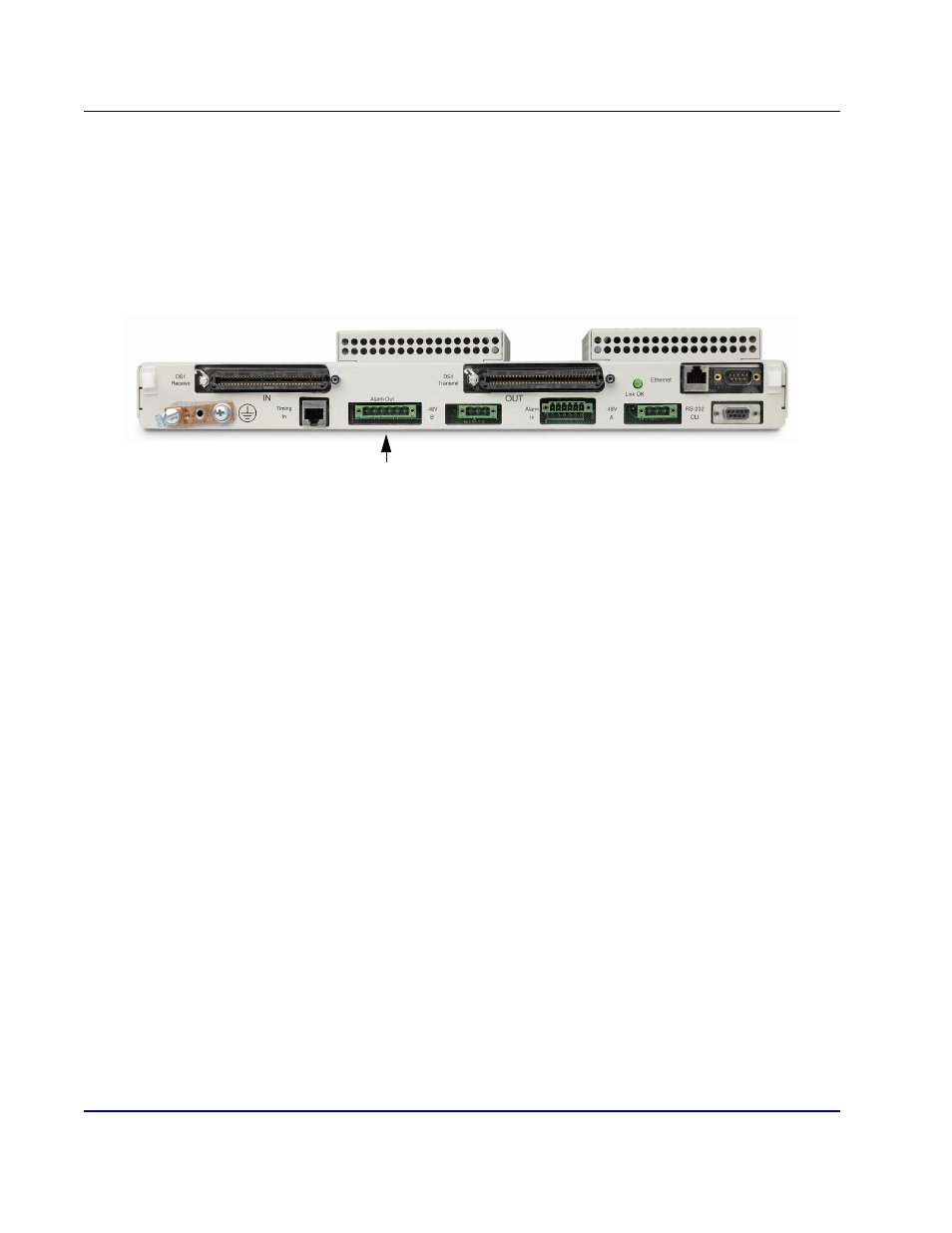

Figure 6-18. Location of Rear Panel Alarm Output Connector
Alarm Out
Connector
