Electrical Installation
Install Quad T1 Framer Card
Install Quad T1 Framer Card
NOTE: Quad T1 Framer (QF) cards are typically installed in sequential order, from 1 to
8. Locate next available Quad T1 Framer card slot (see Figure 6-38).Figure 6-39 shows
installation of QF card #6.
1. Locate card slot in which to install Quad T1 Framer card (see Figure 6-38).

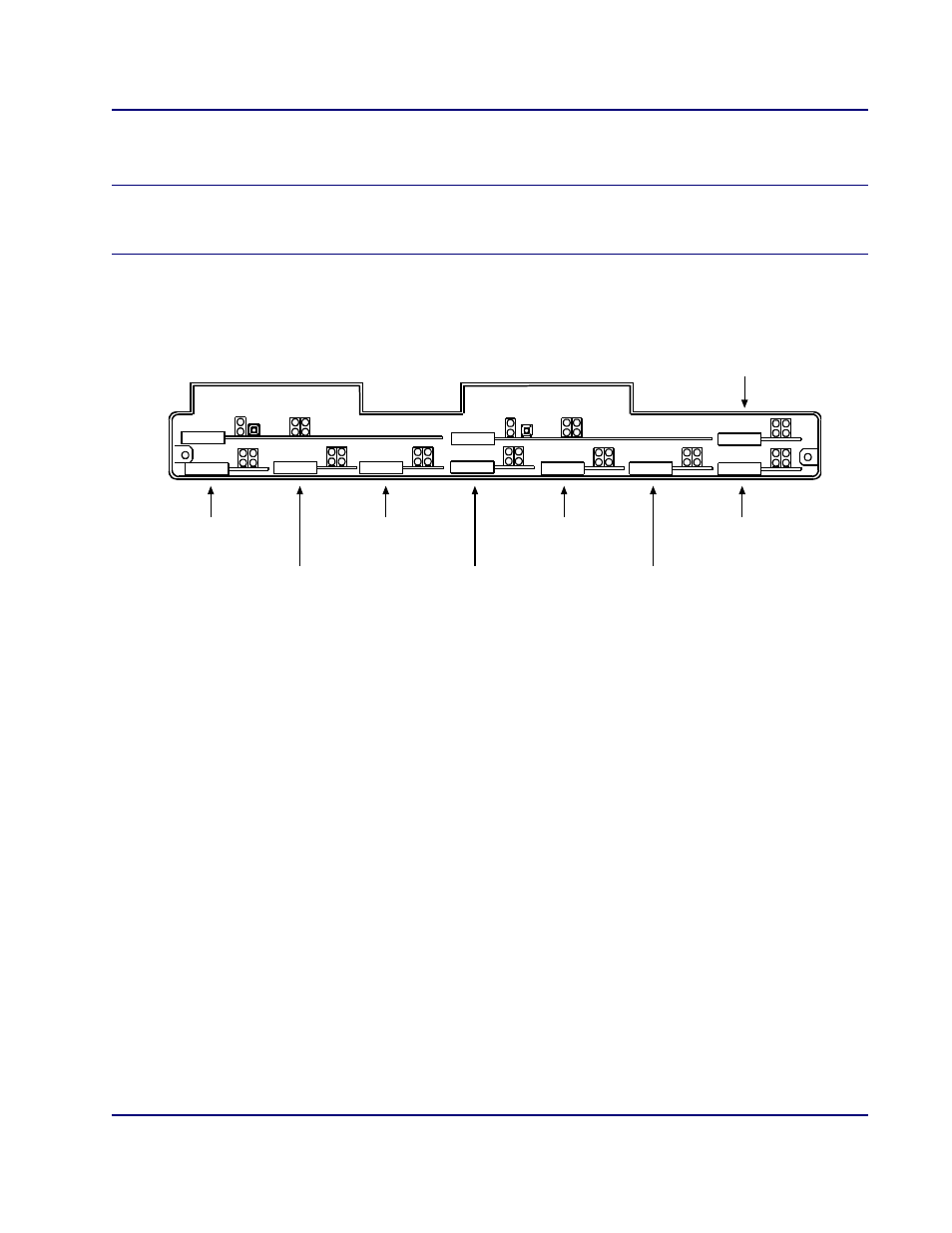

Figure 6-38. Location of Quad T1 Framer Cards
QF Card #6
Circuits 21-24
QF Card #8
Circuits 29-32
QF Card #7
Circuits 25-28
QF Card #5
Circuits 17-20
QF Card #4
Circuits 13-16
QF Card #3
Circuits 9-12
QF Card #2
Circuits 5-8
QF Card #1
Circuits 1-4
