Access Navigator - Release 1.8
August 2003
12-3
Provision Remote Adit 600 via FDL
FDL Management Configuration
After configuring the FDL management connection, the user can remotely provision the Adit 600 by
logging onto the Access Navigator, starting a remote management session, and sending Adit 600 CLI
commands over the FDL channel.
FDL Management Configuration
NOTE:
T1 Type 1 facilities are recommended for reliable remote management. Type 2
facilities – in which the T1 is transported across other carrier networks – may not be
reliable because the FDL channel can be used or disabled by the other carriers.
FDL management requires T1 facilities with ESF framing to carry management and provisioning
commands over the DS1’s Facility Data Link. The Access Navigator must have software version 1.5 or
higher and the DS1 link between the Access Navigator and the remote Adit 600 terminal must be
provisioned for Carrier Access FDL management. Only one FDL management link should be made to the
Controller card of each remote Adit 600.

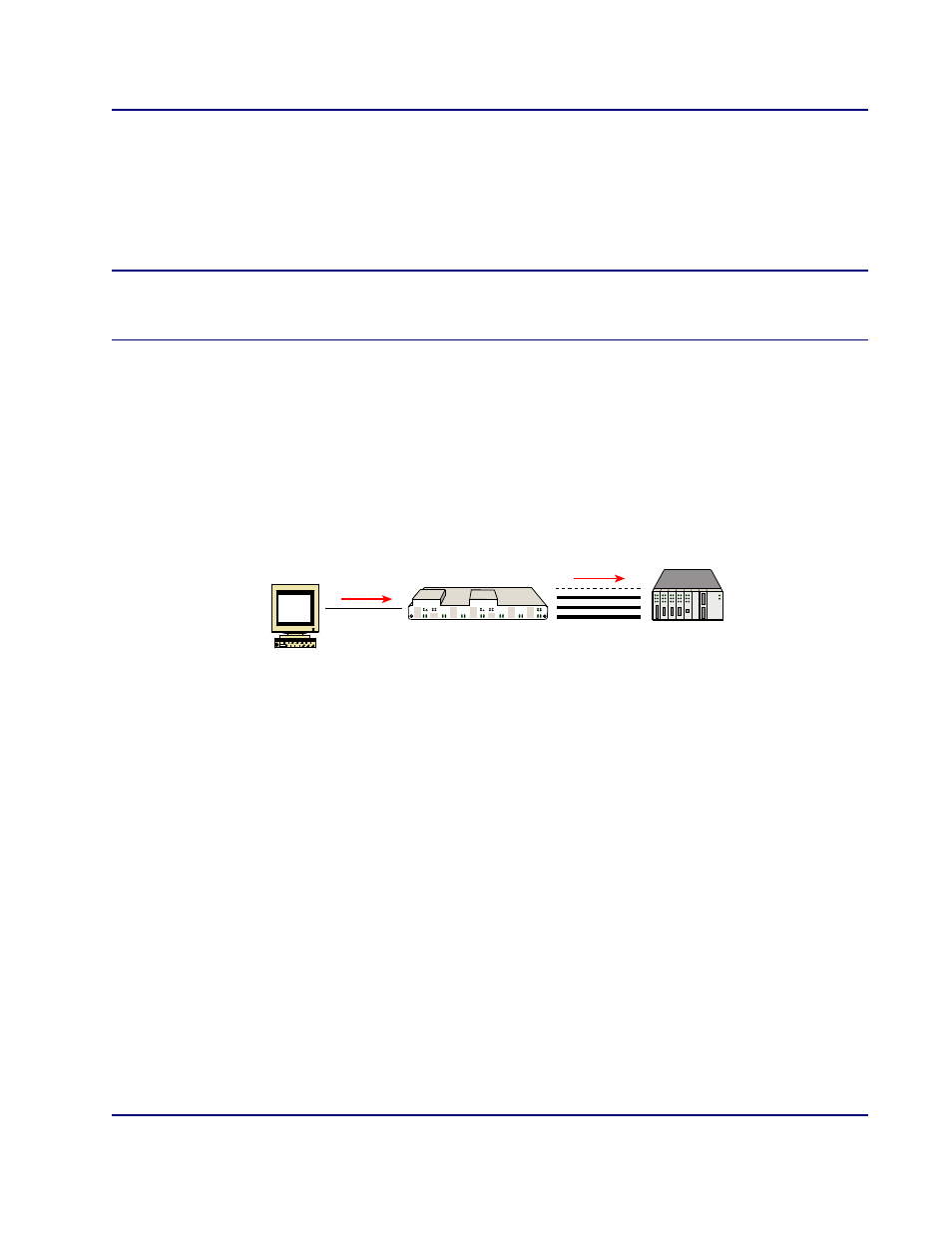

Figure 12-2 Carrier Access FDL Management Configuration
DS 1 STATU S
ACCESS
NAVIGATOR
CARRI ER ACCESS
CORPO RAT ION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
P OWER
ACO
(PU SH)
CONTROLLER A
A CTI VE
CRI T
AC O
MAJ OR
MINO R
P OWER
AC O
(PUS H)
CONT ROLLER B
A CTI VE
CRI T
AC O
MAJ OR
MINO R
Adit 600
Access
Navigator
Network
Operations
Center
Management
Console
On-Net
Location
Customer
Premises
Adit 600
CLI/Telnet
DS1s
FDL
