Provision DCS Service
Provision and Connect DS0s
NOTE:
DS0 voice channels use robbed-bit signaling, while DS0 data are clear channels
(no signaling). ISDN PRI DS0 passthrough channels and ISDN BRI 3DS0 channels must
be set to DS0 Type Data.
4. Set DS0 type to voice or data with the following command:
set ds0 type
Example: set ds0 10:1-18 type voice
Example: set ds0 10:19-24 type data
5. Set DS0 signaling (voice only) to Loop Start (ls), Ground Start (gs), or E&M (em) signaling with
the following command:
set ds0 signal
Example: set ds0 10:1-18 signal gs
6. Connect DS0s (see crossconnect examples in Figure 9-4) to make 2-way connections between
DS0s, or fractional groups of DS0s, with the following command:
connect
Example: connect 10:19-24 5:1-6

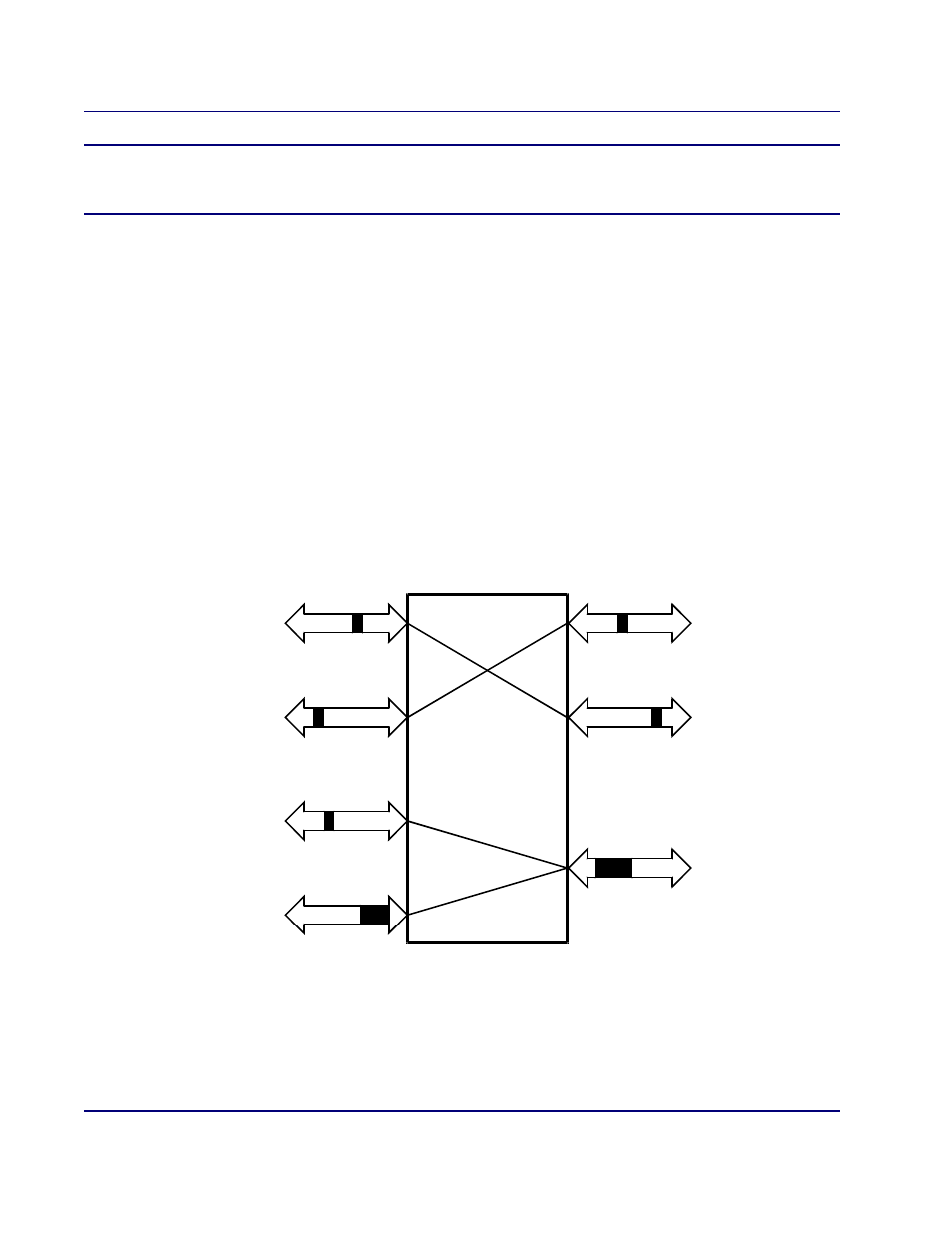

Figure 9-4 Crossconnect Examples
connect ds0 10:16 18:21
connect ds0 12:3 17:10
connect ds0 15:7 21:4
connect ds0 16:17-24 21:5-12
DS1 #10
DS1 #12
DS0 #16
DS0 #3
DS1 #15
DS0 #7
DS1 #16
DS0 #17-24
DS1 #21
DS0 #4
DS0 #5-12
DS1 #17
DS1 #18
DS0 #10
DS0 #21
Access Navigator
Command Examples: (A)
(B)
(C)
(D)
(A)
(B)
(C)
(D)
