1-6

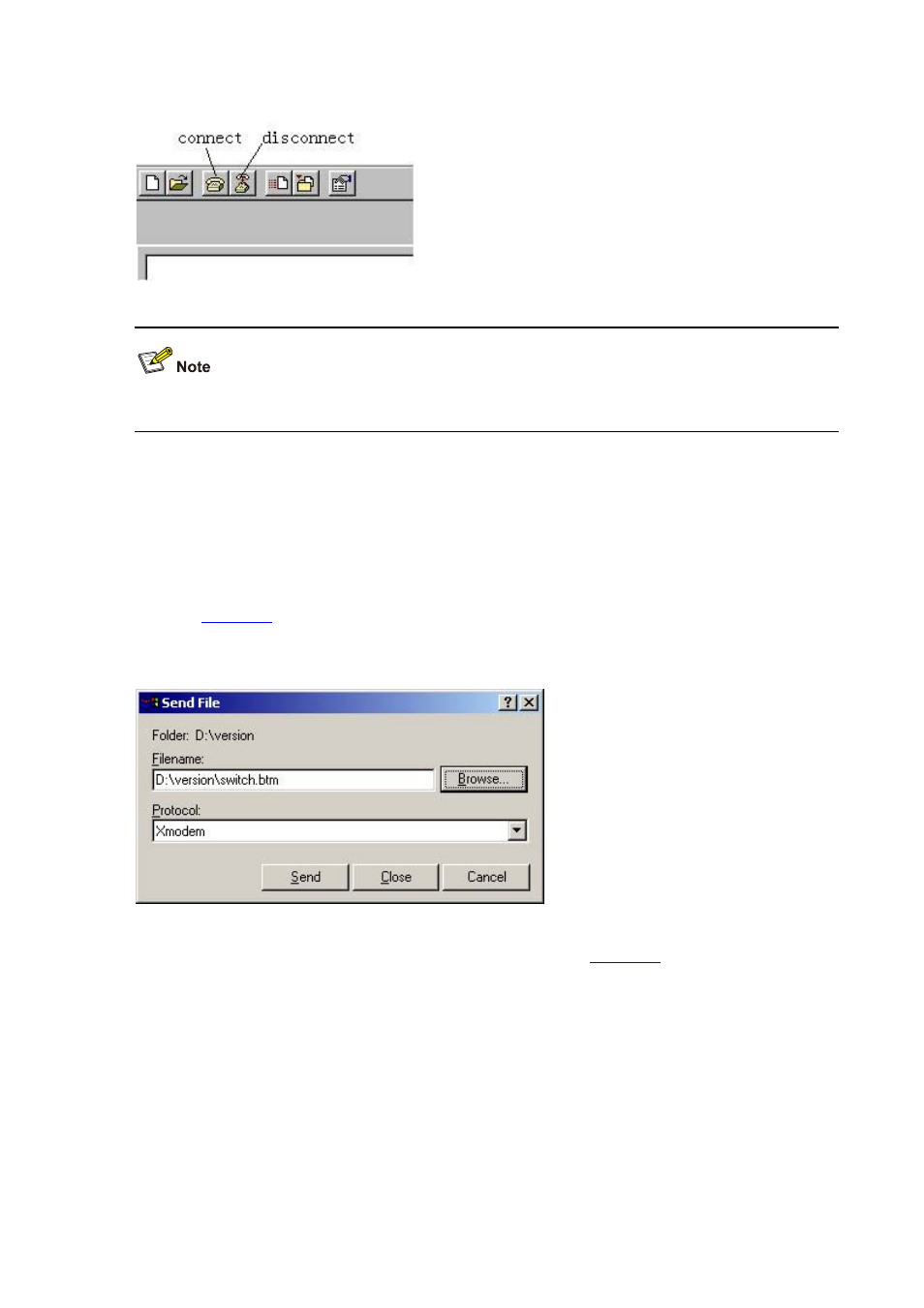

Figure 1-3 Connect and disconnect buttons
The new baudrate takes effect after you disconnect and reconnect the HyperTerminal program.
Step 6: Press to start downloading the program. The system displays the following information:
Now please start transfer file with XMODEM protocol.
If you want to exit, Press .
Loading ...CCCCCCCCCC
Step 7: Choose [Transfer/Send File] in HyperTerminal, and click in pop-up dialog box, as
shown in Figure 1-4 . Select the software file that you need to load to the switch, and set the protocol to
XModem.
Figure 1-4 Send file dialog box
Step 8: Click . The system displays the page, as shown in Figure 1-5 .
