Rockwell Automation Publication 193-UM015B-EN-P - June 2014 305
EtherNet/IP Communications Chapter 8

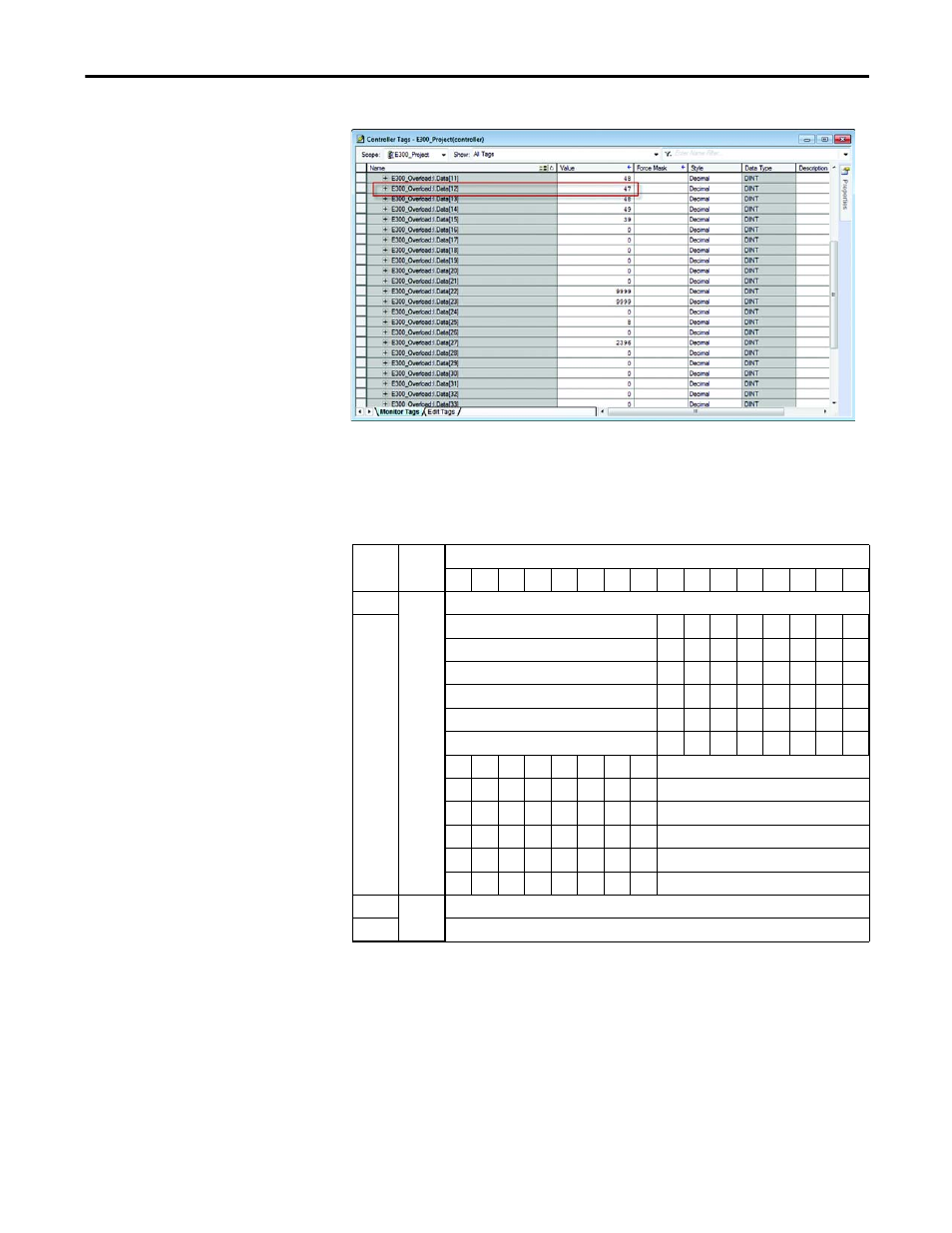

For example, E300_Overload:I.Data[12] represents L1 Current as shown below.
6. To control the output relays or remotely reset the E300 Electronic
Overload Relay, navigate to the output tags created by the Generic Profile.
The table listed below represents the Input Assembly data.
Table 337 - Instance 144 - Output (Consumed) Assembly
Bit
INT DINT 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0
0
OutputStatus0
1
NetworkStart1 X
NetworkStart2 X
TripReset X
EmergencyStart X
RemoteTrip X
Reserved X X X
X HMILED1Green
X HMILED2Green
X HMILED3Green
X HMILED3Red
X HMILED4Red
X X X Reserved
2
1
DLXPtDeviceIn
3 DLXAnDeviceIn
