Logix configuration with add-on profile – Rockwell Automation 592- E300 Overload Relay User Manual User Manual
Page 296
296
Rockwell Automation Publication 193-UM015B-EN-P - June 2014
Chapter 8 EtherNet/IP Communications
Logix Configuration with Add-On Profile
An existing project can be used or a new project can be created to configure
EtherNet/IP I/O Messaging. After the controller configuration, the E300
Electronic Overload Relay EtherNet/IP Communication Module has to be
added to the I/O configuration by following these steps:
1.

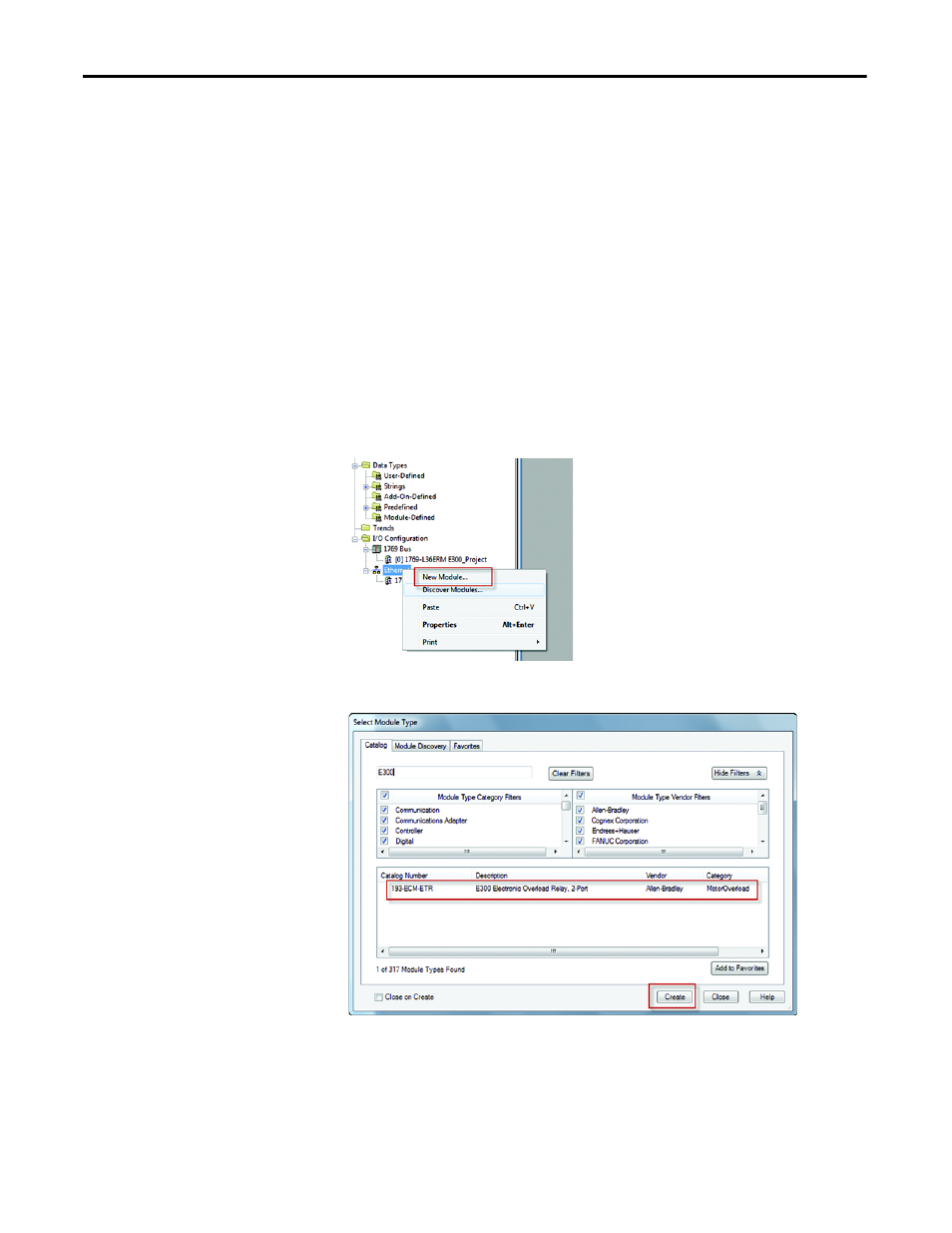

Right-click on the EtherNet/IP scanner within the I/O Configuration
folder, then select New Module to open the Select Module Type window.
2.
Select the E300 Electronic Overload Relay EtherNet/IP Communication
Module (193-ECM-ETR), then click Create.
