Rockwell Automation 592- E300 Overload Relay User Manual User Manual
Page 299
Rockwell Automation Publication 193-UM015B-EN-P - June 2014
299
EtherNet/IP Communications Chapter 8
9.

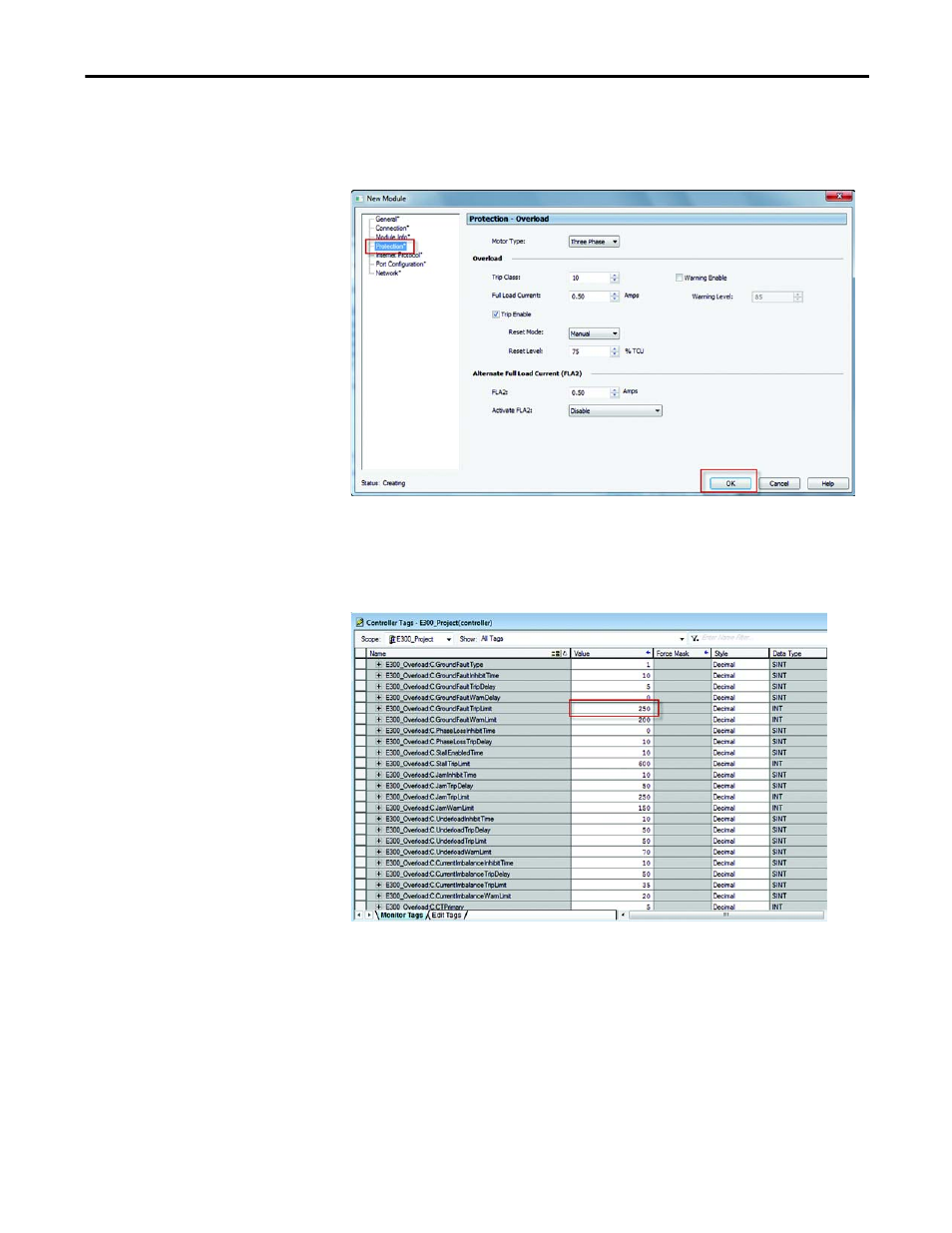

Next, set the overload protection configuration parameters for your
specific motor application by selecting Protection. When finished, press
OK to complete the addition of the E300 Electronic Overload Relay to
the Logix system.
10.
To configure the other protection configuration parameters, navigate to
the configuration tags of the newly added E300 Electronic Overload Relay.
Modify the configuration tags directly to enable and adjust the other
current-based and control-based protection functions of the E300
Electronic Overload Relay.
