EtherNet/IP Communications Chapter 8
Assign Network Parameters via the BOOTP/ DHCP Utility
By default, the E300 Electronic Overload Relay EtherNet/IP Communication
Module is DHCP Enabled. The BOOTP/DHCP utility is a standalone
program that is located in the BOOTPDHCP Server folder accessed from the
Start menu.
This utility recognizes DHCP-enabled devices and provides an interface to
configure a static IP address for each device. To assign network parameters via the
BOOTP/DHCP utility, perform this procedure:
1. Execute the BOOTP/DHCP software.

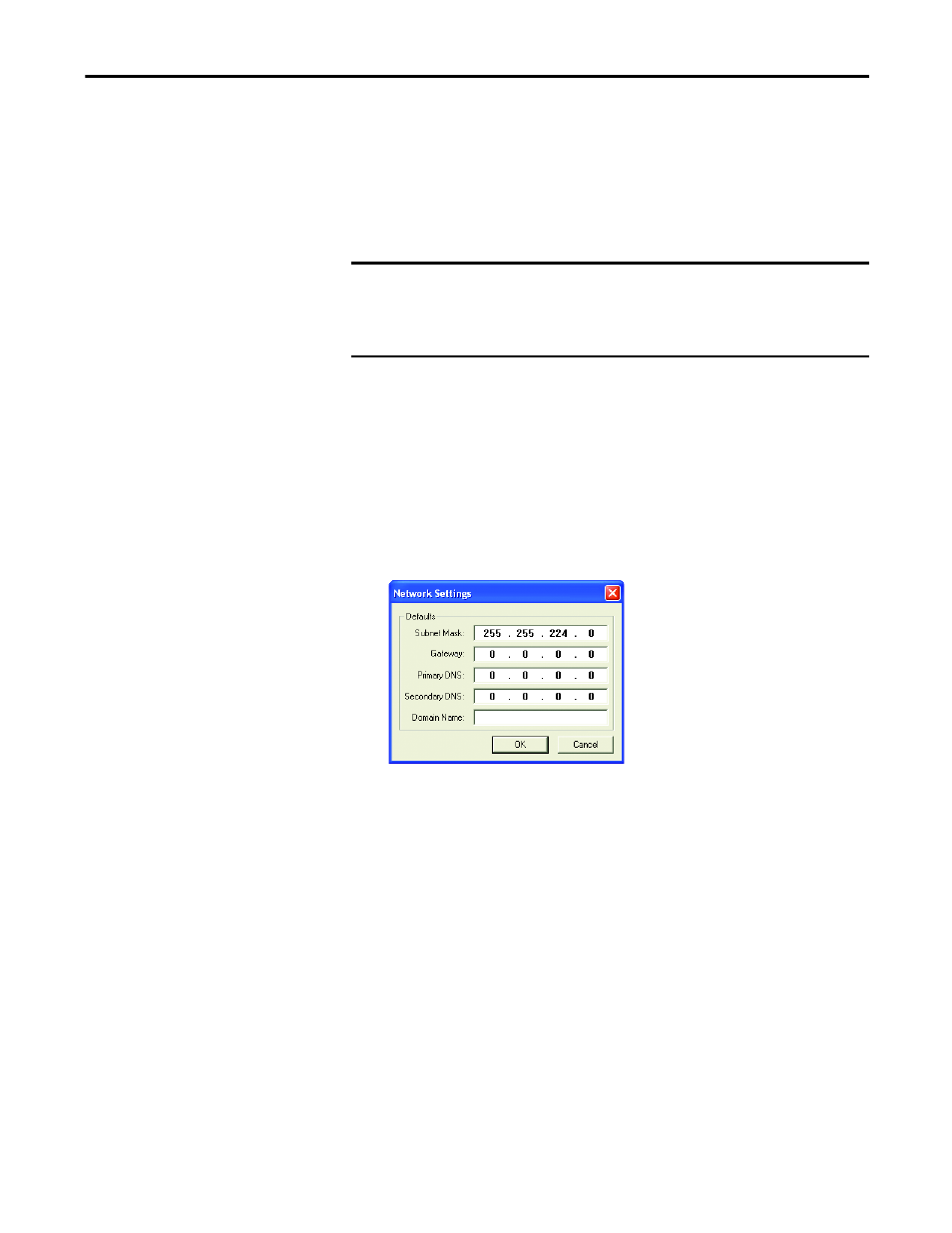

2. Choose Tool >Network Settings.
3. If appropriate for the network, type the subnet mask, gateway address,
primary/secondary server addresses, and domain name in their respective
fields.
4. Click OK.
The Request History panel displays the hardware addresses of modules
issuing BOOTP or DHCP requests.
5. Double-click the MAC address of the module to be configured.
NOTE: The MAC address is printed underneath the sliding front cover of the
E300 Electronic Overload Relay EtherNet/IP Communication Module. The
format of the hardware address resembles: 00-0b-db-14-55-35
IMPORTANT Before starting the BOOTP/DHCP utility, make sure you have the hardware MAC
ID of the module, which is printed on the front of the E300 Electronic Overload
Relay EtherNet/IP Communication Module. The MAC ID has a format similar to:
00-0b-db-14-55-35.
