Page 26
26
Rockwell Automation Publication 193-UM015B-EN-P - June 2014
Chapter 2 Installation and Wiring
Expansion Bus Digital &
Analog I/O Modules and
Power Supply Installation

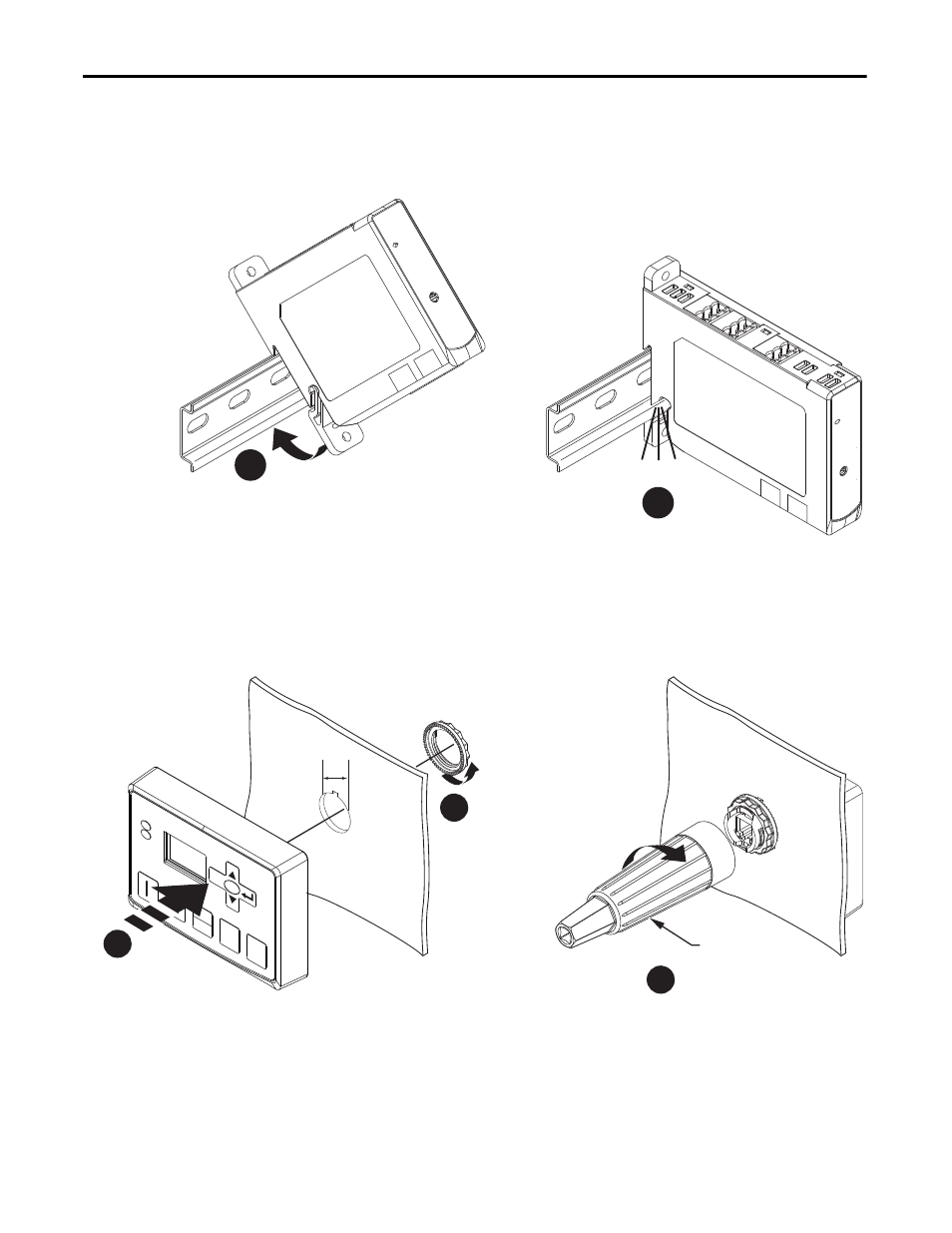

Figure 10 - Expansion Bus Digital& Analog I/O Modules and Power Supply
Expansion Bus Operator
Station Installation
Figure 11 - Expansion Bus Operator Station
Expansion Bus Network
Installation
The E300 Electronic Overload Relay will support up (4) Expansion Digital I/O
modules, (4) Expansion Analog I/O modules, and (1) Operation Station. The
E300 Base Relay can supply enough power for (1) Expansion Digital I/O module
and (1) Operator Station. Any other combination of E300
Expansion Bus
1
2
Click
2
1
1.7 N.m
(15 lb-in)
0
RESE
T
SELE
CT
ESC
REM
OTE
LO
CAL
800F-AW2
3
22 mm
