Starter Assembly
The following illustrations show how to assemble an E300
Electronic Overload
Relay as a motor starter with an Allen-Bradley Bulletin 100-C contactor.
100-C09…-C55 Starter Assembly Installation
The starter assembly installation instructions are for use with E300 Sensing
Module catalog numbers 193-ESM-___-___-C23 and 193-ESM-___-___-C55

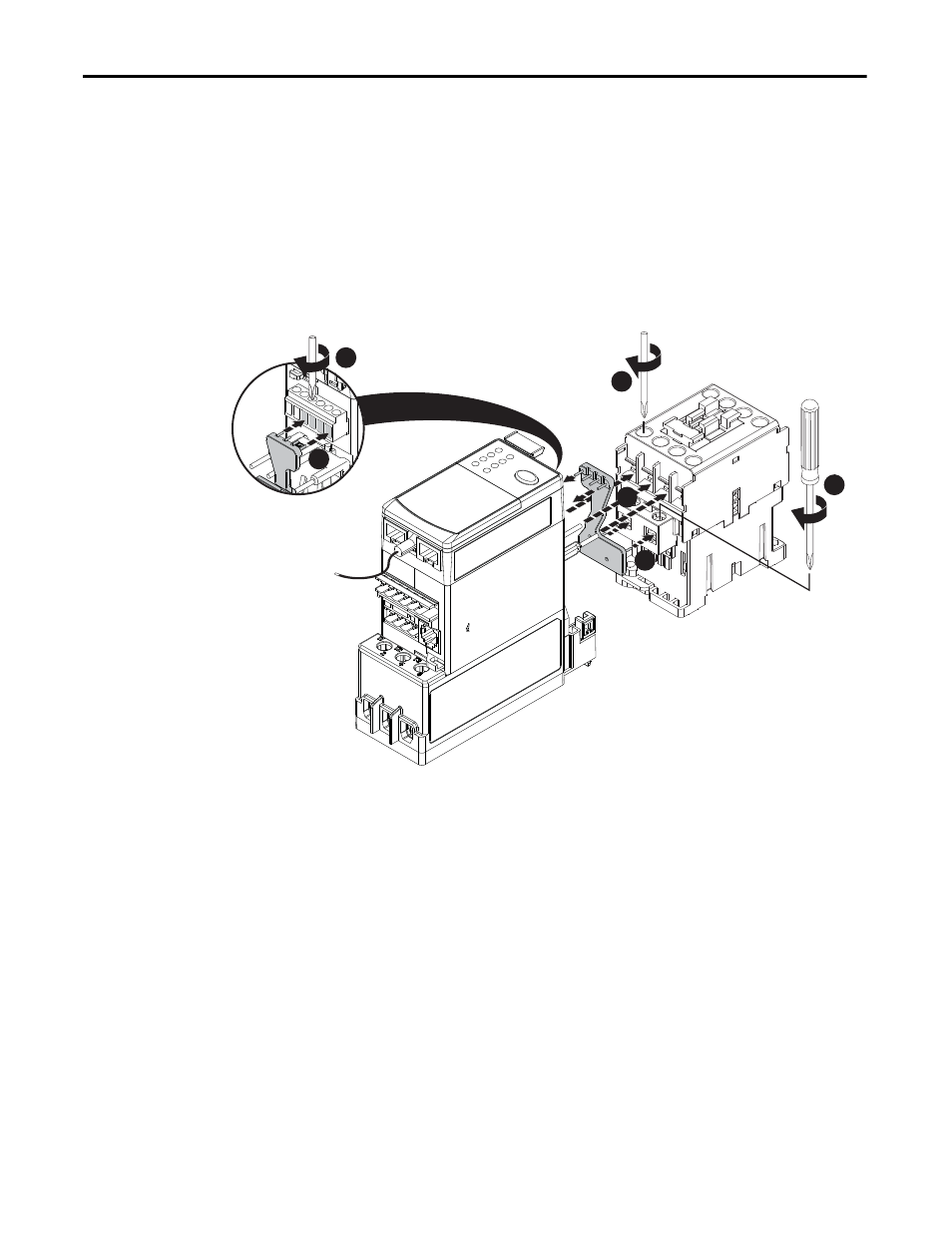

Figure 13 - 100-C09…-C55 Starter Assembly Installation
7 -11 lb-in
9 - 22 lb-in
5 - 7 lb-in
1
2
5
4
6
IN1
IN0
A2
A1
R04
R03
3
