Rockwell Automation 592- E300 Overload Relay User Manual User Manual
Page 291
Rockwell Automation Publication 193-UM015B-EN-P - June 2014
291
EtherNet/IP Communications Chapter 8
3.
Locate the EDS file for the E300 Electronic Overload Relay EtherNet/IP
Communication Module and download it to the personal computer.
4.

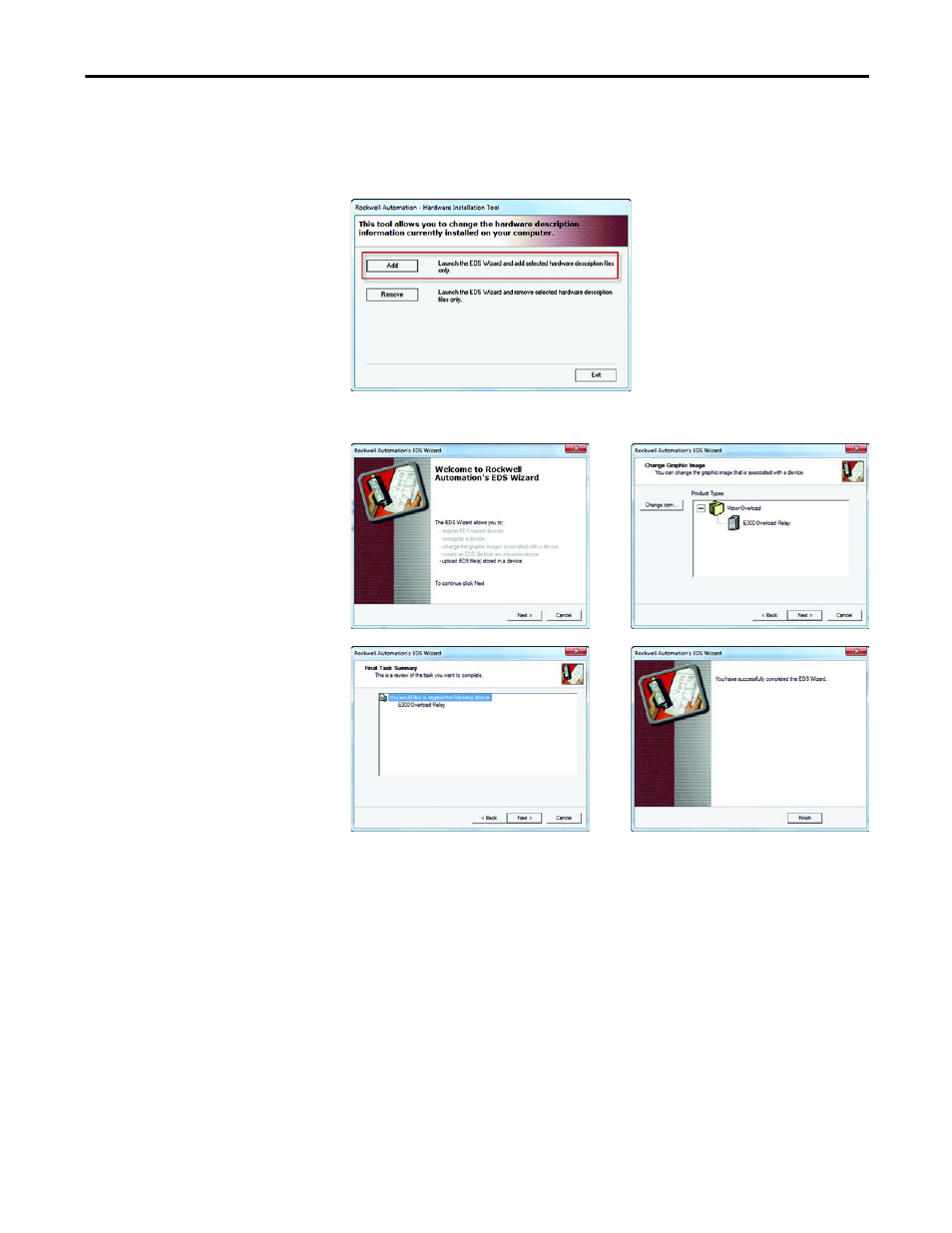

Start the EDS Hardware Installation Tool located at
Start>Programs>Rockwell Software>RSLinx Tools and Add a new device
5.
Using the EDS Wizard, install the downloaded E300 Electronic Overload
Relay EtherNet/IP Communication Module EDS file.
