788 Chapter 10 Using Filters
Parallelogram Tile
Simulates looking through a kaleidoscope with facets made of parallelograms. It is not
automatically animated, but by animating the Angle parameter you can simulate the
effect of twisting the kaleidoscope to rotate the image pattern.
Parameters in the Inspector
Center: Sets the position of the origin of the parallelogram tiles.
Acute Angle: Sets the acute angle at which the parallelogram sides meet.
Angle: Sets the angle of rotation of the panels.
Tile Size: Sets the size of the panels. The panels range in size from 1 to 200.
Dashboard controls
The Dashboard contains the Acute Angle, Angle, and Tile Size controls.
Perspective Tile
Endlessly tiles an image, mapping it onto a grid that can be positioned in simulated 3D
space. Can create an endlessly repeating video wall stretching off into the distance.
Parameters in the Inspector
Top Left: Sets the position of the top-left corner of the grid.
Top Right: Sets the position of the top-right corner of the grid.
Bottom Right: Sets the position of the bottom-right corner of the grid.
Bottom Left: Sets the position of the bottom-left corner of the grid.
Dashboard controls
The Dashboard has no controls for this filter.

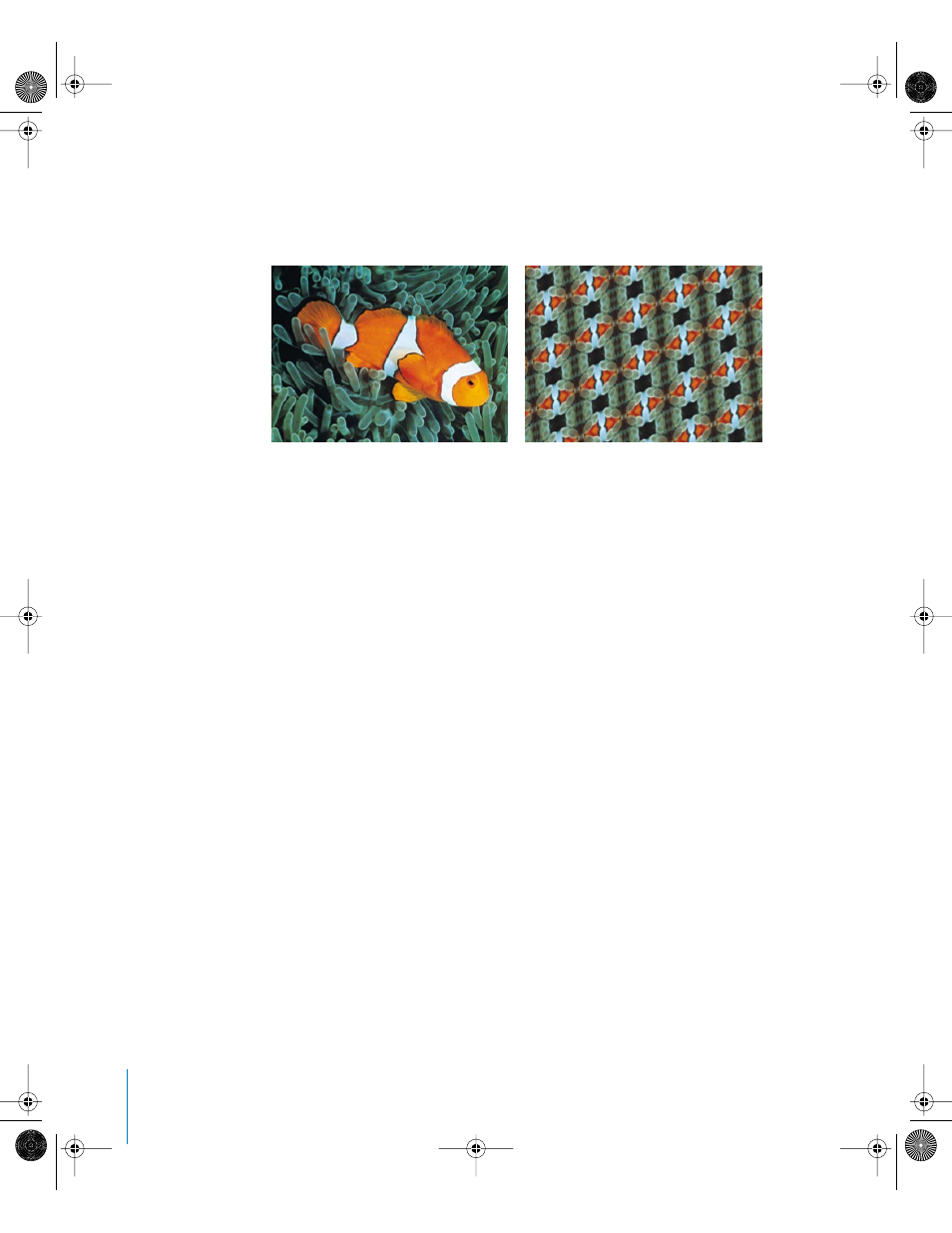

Original image Parallelogram Tile applied
