557
CHAPTER 25 EXAMPLES OF MB90F362/T(S), MB90F367/T(S) SERIAL PROGRAMMING CONNECTION
25.2 Example of Serial Programming Connection (User Power
Supply Used)
Figure 25.2-1 shows an example of a serial programming connection when the user
power supply is used. The value 1 and 0 are input to mode pins MD2 and MD0 from
TAUX3 and TMODE of the AF220/AF210/AF120/AF110 programmer.
Serial reprogramming mode: MD2, MD1, MD0 = 110.
■ Example of Serial Programming Connection (User power supply used)

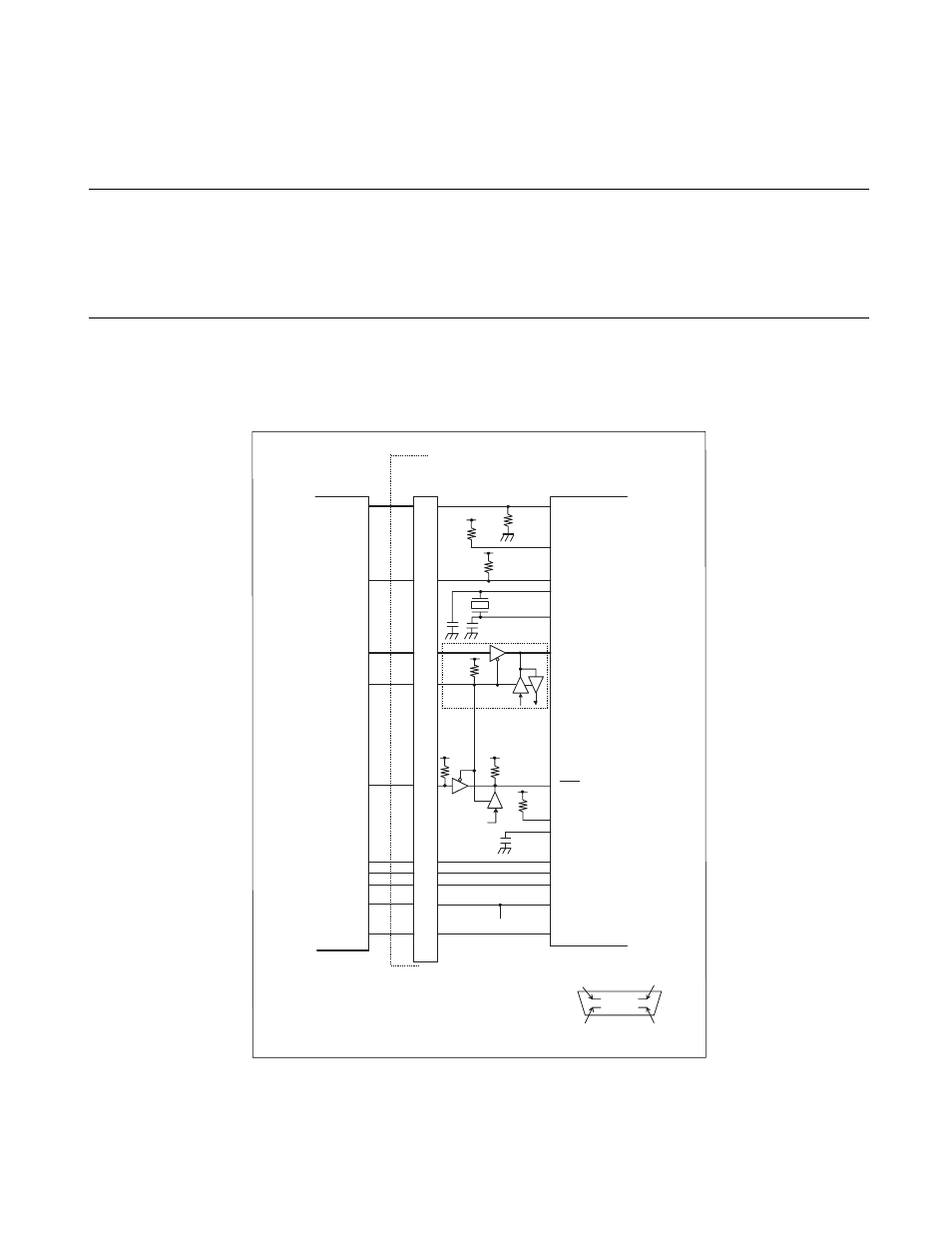

Figure 25.2-1 Example of Serial Programming Connection for MB90F362/T(S), MB90F367/T(S) Single-chip
Modes (User power supply Used)
P83
MD0
MD1
TMODE
TAUX3 MD2
Connector
DX10-28S
DX20-28S
AF220/AF210/AF120/AF110
flash microcontroller
programmer
TAUX
User
User system
X0
X1
10k Ω
Vss
Vcc
GND
SCK1
SOT1
SIN1
TRXD
TTXD
TCK
- DX10-28S : Right-angle type
- DX20-28S : Straight type
RST
P84
TVcc
User power supply
C
Connector (Hirose Electronics Ltd.) pin arrangement
1 pin
28 pin 15 pin
14 pin
DX10-28S
DX20-28S
4MHz
to 16MHz
10k Ω
10k Ω
/TICS
/TRES
10k Ω
(7,8,
14,15,
21,22,
1,28)
(2)
(6)
(27)
(13)
(5)
(10)
(23)
(12)
(19)
0.1 µ F
10k Ω
10k Ω
- 3,4,9,11,16,17,18,20,24,25 and 26 pins are OPEN.
User
10k Ω
MB90F362 /T(S),
MB90F367/T(S)
