147
CHAPTER 8 LOW-POWER CONSUMPTION MODE

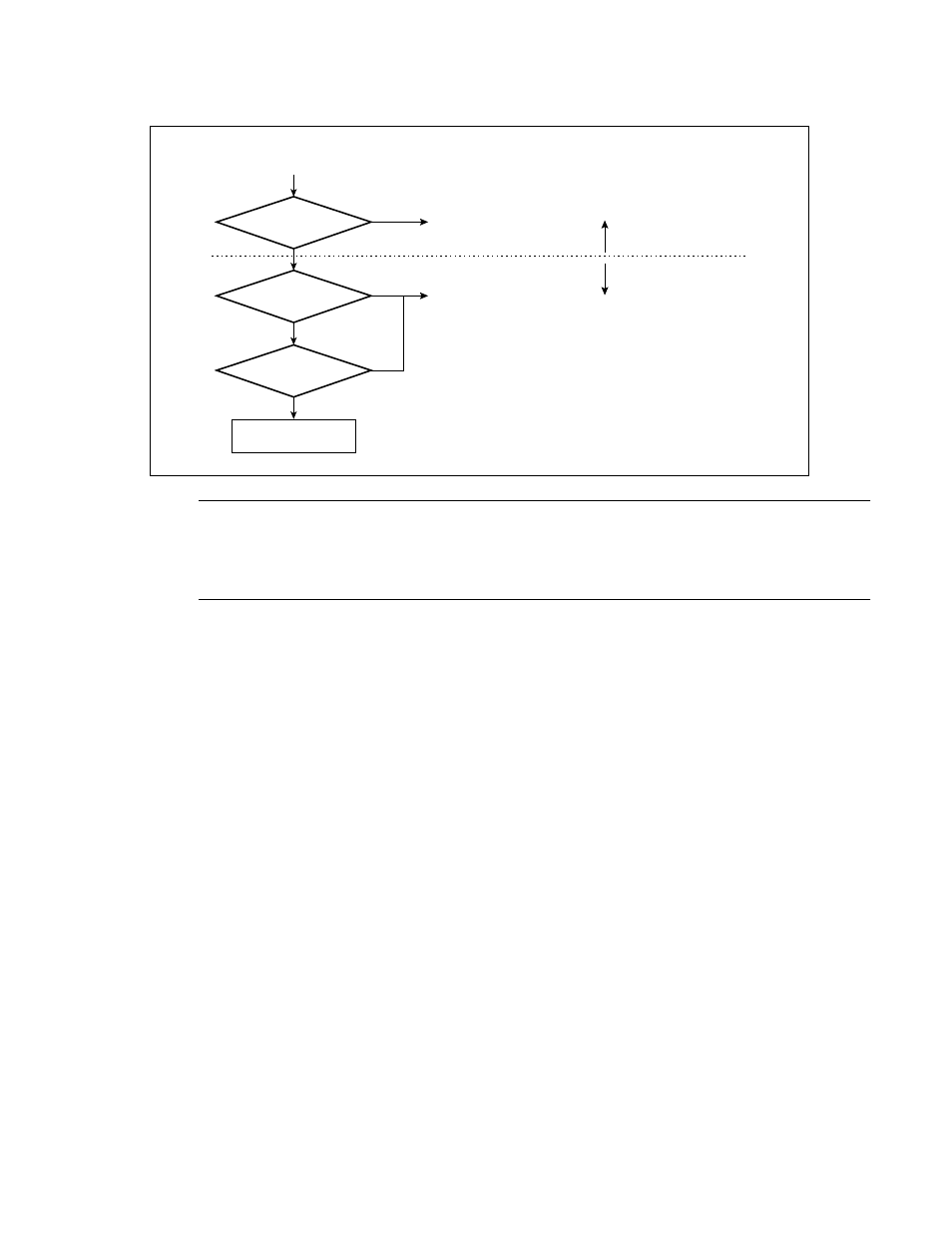

Figure 8.5-1 Release of Sleep Mode by Interrupt Occurrence
Note:
When interrupt processing is executed, the CPU normally executes the instruction that follows the
instruction in which a sleep mode has been specified. The CPU then proceeds to interrupt processing.
I = 0
ILM
NO
YES
YES
YES
NO
NO
Set to interupt flag of resources
No cancellation of sleep
No cancellation of sleep
Cancellation of sleep
Execute the next
instruction
INT generate
(IL<7)
Execution of
interrupt process
