CHAPTER 17 DTP/EXTERNAL INTERRUPTS
17.2 Block Diagram of DTP/External Interrupt
The block diagram of the DTP/external interrupt is shown below.
■ Block Diagram of DTP/External Interrupt

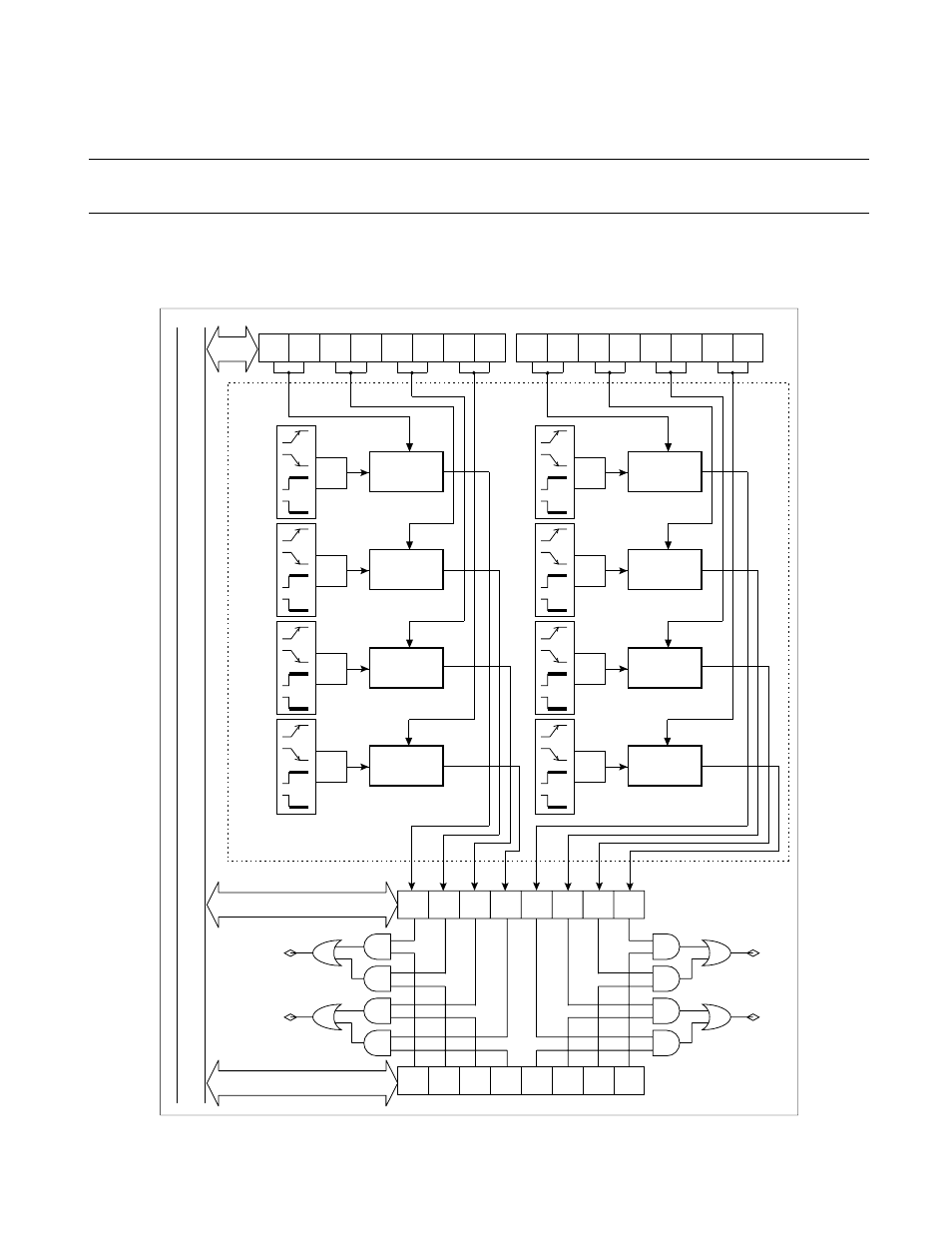

Figure 17.2-1 Block Diagram of DTP/External Interrupt
Detection level setting register (ELVR1)
LA12 LB12 LA13 LB13 LA14 LB14 LA15 LB15 LA8 LB8 LA9 LB9 LA10 LB10 LA11 LB11
EN8 EN9 EN10 EN11 EN12 EN13 EN14 EN15
ER8 ER9 ER10 ER11 ER12 ER13 ER14 ER15
Level edge
selector
INT15R
INT14R
INT13
INT12R
INT11
INT10
INT9R
INT8
Level edge
selector
Level edge
selector
Level edge
selector
Level edge
selector
Level edge
selector
Level edge
selector
Level edge
selector
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Internal data bus
DTP/external interrupt input
detection circuit
Interrupt request
signal
Interrupt request
signal
DTP/external interrupt
factor register (EIRR1)
DTP/external interrupt
enable register (ENIR1)
