48 Kalypso — User Manual
Section 1 — System Overview
Kalypso HD/Duo Video Processor Frame
The Kalypso HD Video Processor frame houses most of the system elec-
tronic. Slots in the front hold system control, video routing, and signal pro-
cessing modules. A fully loaded system is shown in
Figure 35 . 2-M/E
Kalypso systems ship with only 2 M/E modules, and the Still Store and
Transform Engine modules are optional.

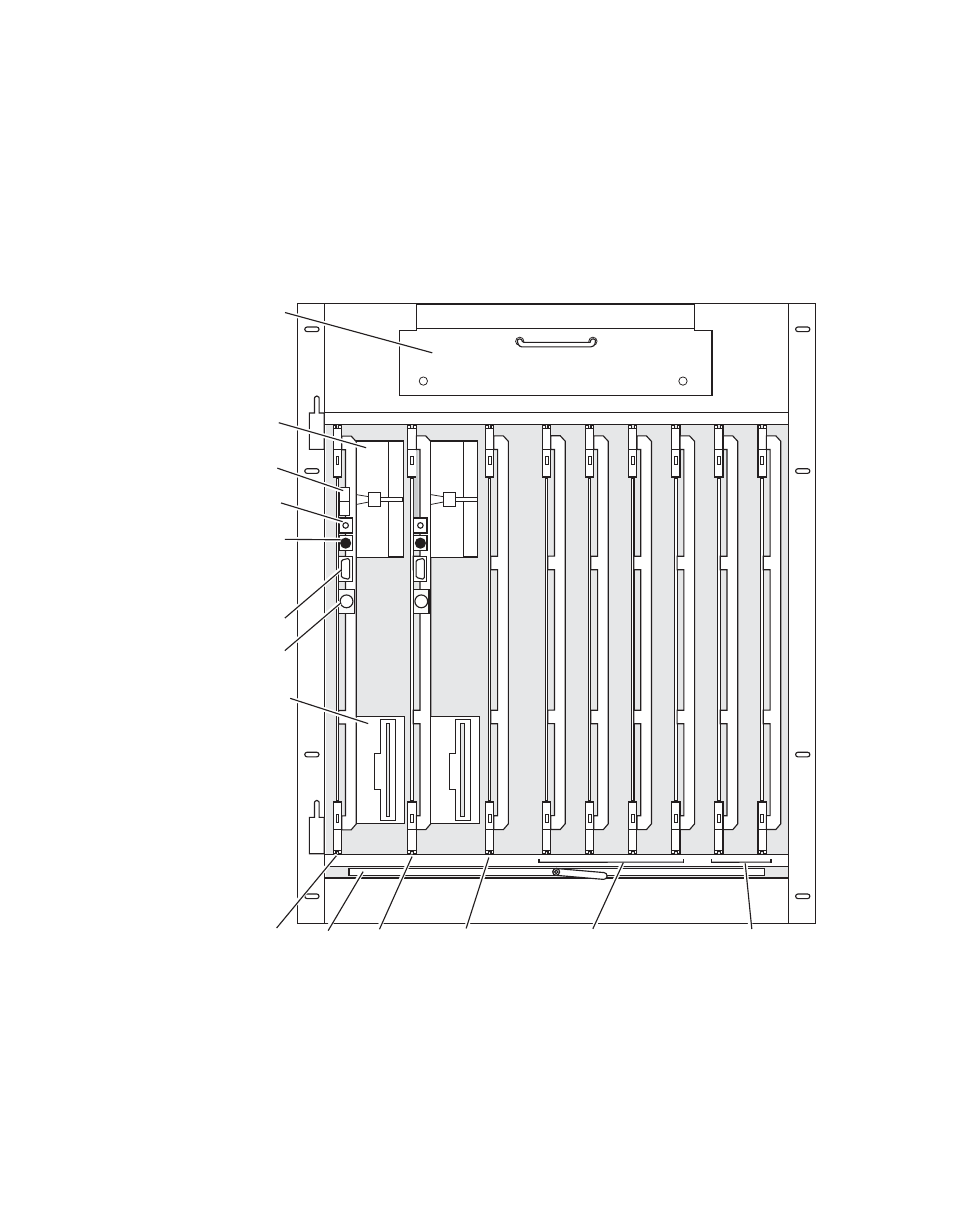

Figure 35. Fully Equipped Kalypso Video Processor Frame Front View, Door Removed
CAUTION The front door of the Kalypso Video Processor must remain closed during
normal system operation for proper cooling airflow.
0619_08_76_r3
OFF
ON
Fan Drawer
Keyboard*
VGA Port*
Floppy Disk
Drive*
* For Service
Personnel
Use Only
Control
Processor
Power
Switch
Frame Reset
Button
COM Boot
Dial
Slot 1
Control
Module
Slot 2
Still Store
Module
(optional)
Air Filter Slot 4 - 7
M/E Modules
(M/E 3, 2, 1, PGM/PST)
Slot 8 - 9
Transform Engine
Modules (2)
(optional)
Slots 3
Crosspoint
Module
