The Menu System Processor for these models resides in the Main panel,
and so extra connections are required for operation (
Figure 11 ).

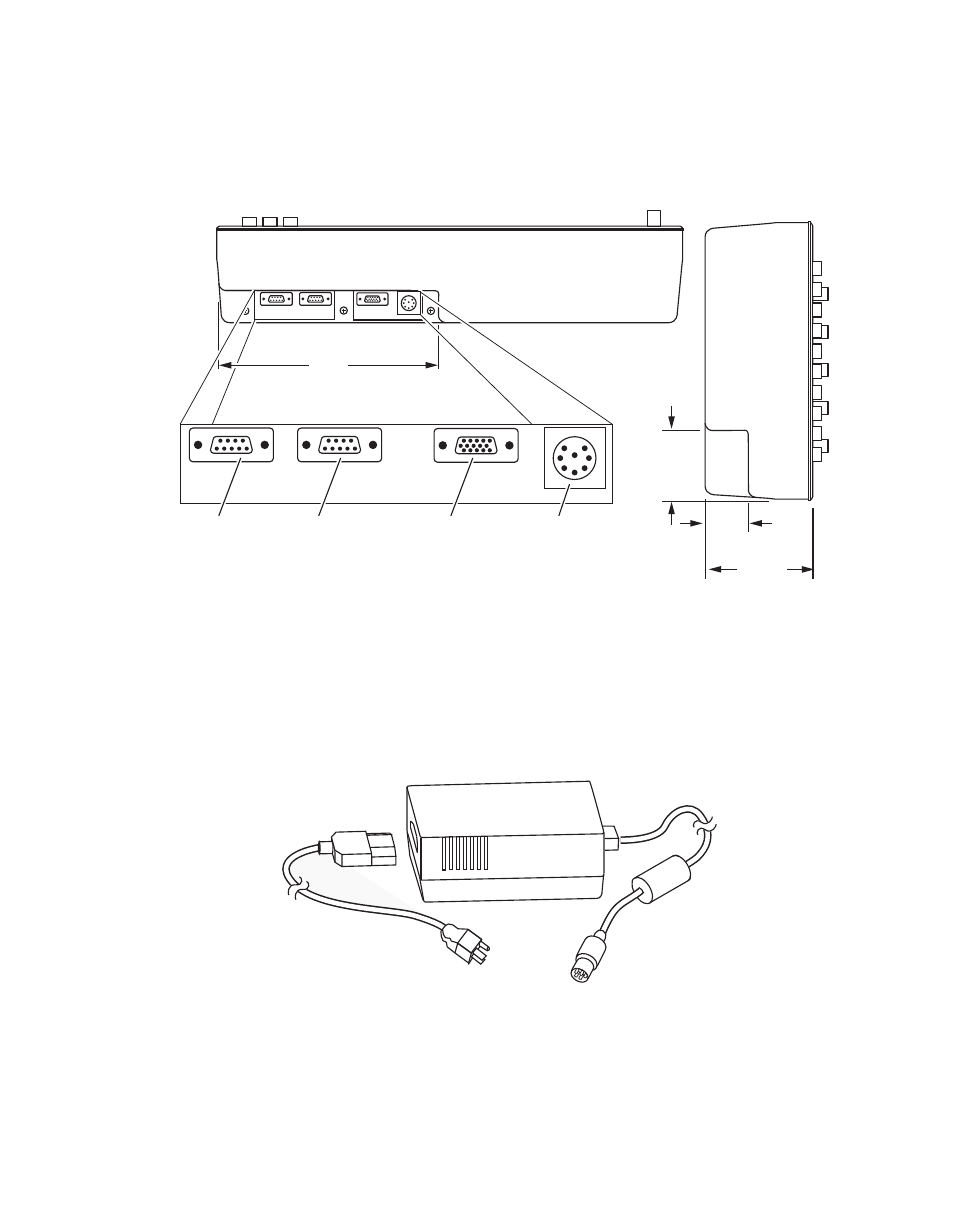

Figure 11. Original Menu Panel, Bottom View of Connectors
Power Cabling
The Menu panel normally receives its power from the Main panel. An
optional brick style external power supply is available that allows the
Menu panel to be powered independently from the Main panel (
Figure 12 ).
This same type of power supply can be used with the Local Aux panel.
Figure 12. Optional External Power Supply
Local Aux Panel
The Local Aux panel provides control of the Kalypso System Aux buses,
Still Store source selection, some switched preview, and also supports
0619_00_15_
r6
2.5 in.
64 mm
Bottom
View
Side
View
Without
Mounting
Bracket
1.6 in.
41 mm
3.9 in.
99 mm
8.4 in.
213 mm
Touch Screen Control Menu Controls SVGA Video DC Power In
