256 Kalypso — User Manual
Section 3 — System Operation
2. Press a source selection button to choose the desired switcher source,
using the
Shift or Unshift buttons if necessary.
3. Press the router source button for the chosen switcher source, using the
Prev Page and Next Page buttons if necessary.
4. After selecting a routed source, the system returns to Step 2 and you
can select another switcher source to change.
5. Release the Router Assign button to return to normal operation.
Menu Panel Router Interface Operation
The Router Select menu provides a way to directly change router sources
from the Menu panel. The Router Select menu is reached by pressing the
R-MEM Menu panel button, then touching the Router Select category selection
button ( Figure 189 ).

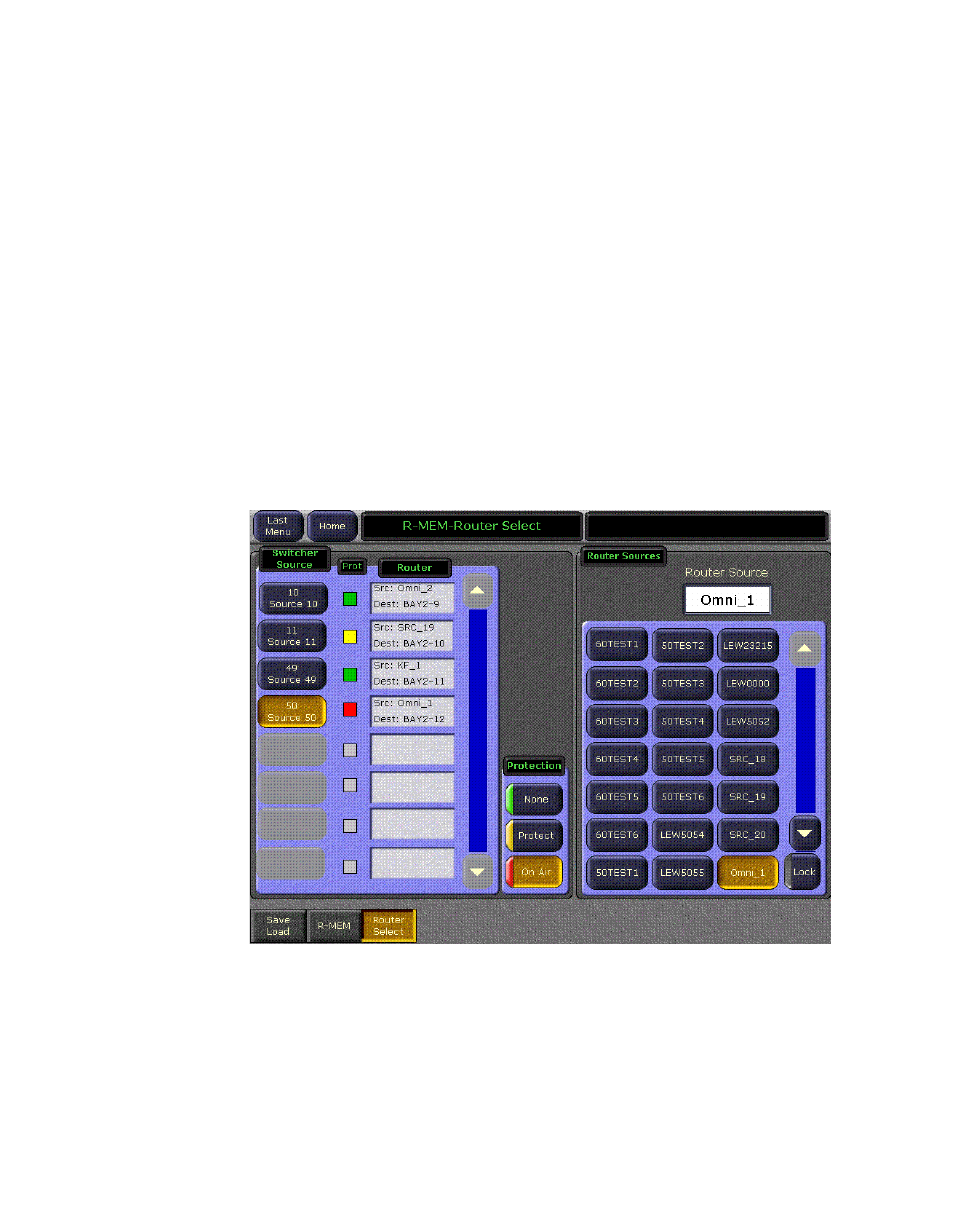

Figure 189. Router Select Menu
The Switcher Source pane on the left is a scrolling list of switcher sources
(only sources configured as routed Kalypso sources appear). Each button
displays the Switcher Source ID number and source name.
The box next to each source shows the names of the router source and
router destination. The currently selected switcher source on the list is
