Chapter 11: File Downloads and Uploads
212 Section II: Advanced Operations
Note: Please select '1K Xmodem' protocol for faster
upload...
10. Begin the file transfer.
Note
The transfer protocol must be Xmodem or 1K Xmodem.
Steps 11 through 14 illustrate how to upload a file with the Hilgraeve
HyperTerminal program.
11. From the HyperTerminal main window, select Receive File from the
Transfer pull-down menu, as shown in Figure 58.

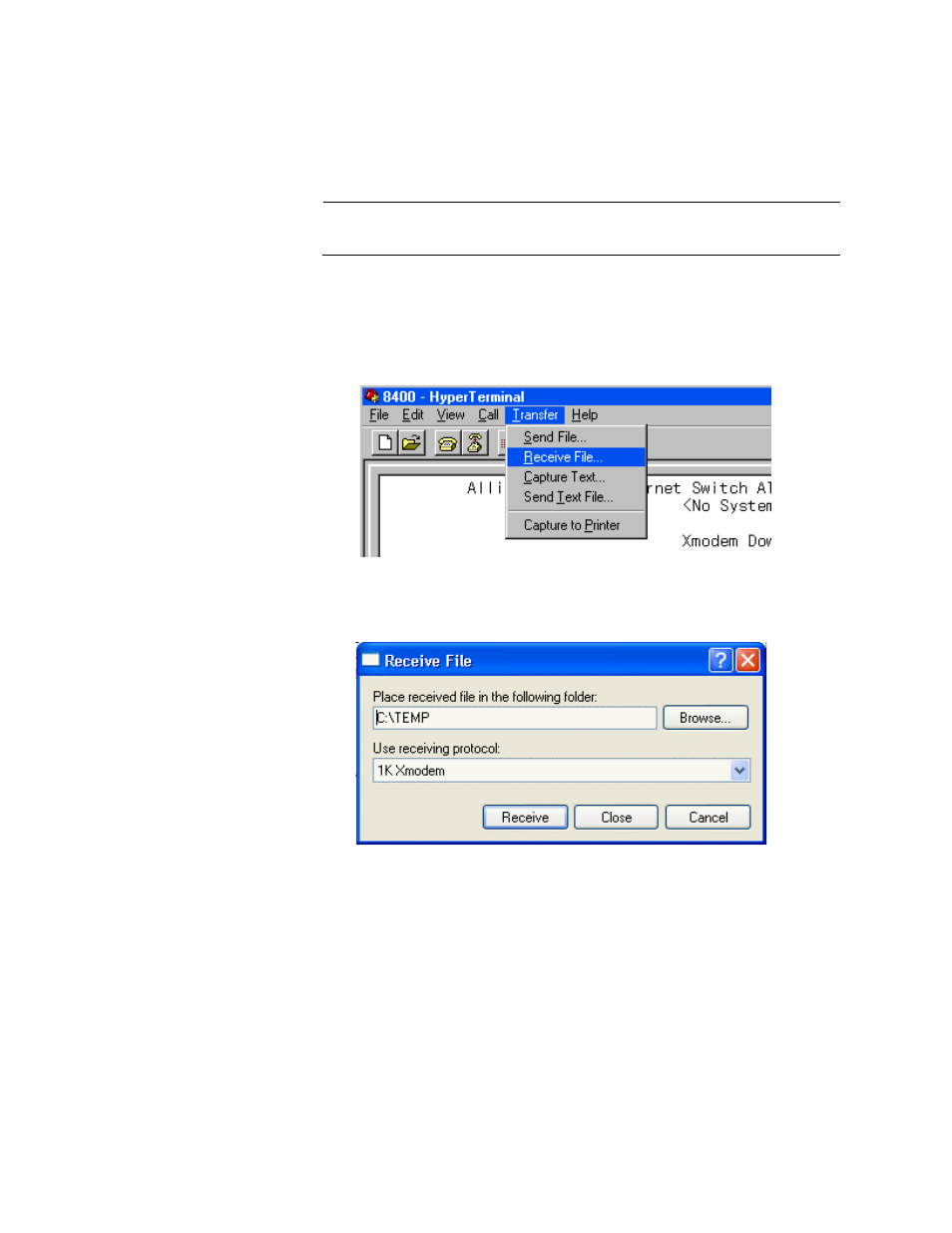

Figure 58. Local Management Window
The Receive File window is shown in Figure 59.
Figure 59. Receive File Window
12. Click Browse and specify a directory on your computer to store the
file.
13. Click the Use receiving protocol field and select either Xmodem or,
for a faster download, 1K XModem as the transfer protocol.
14. Click Receive.
