Allied Telesis AT-S62 - Manual (Page 206)

Chapter 11: File Downloads and Uploads
206 Section II: Advanced Operations

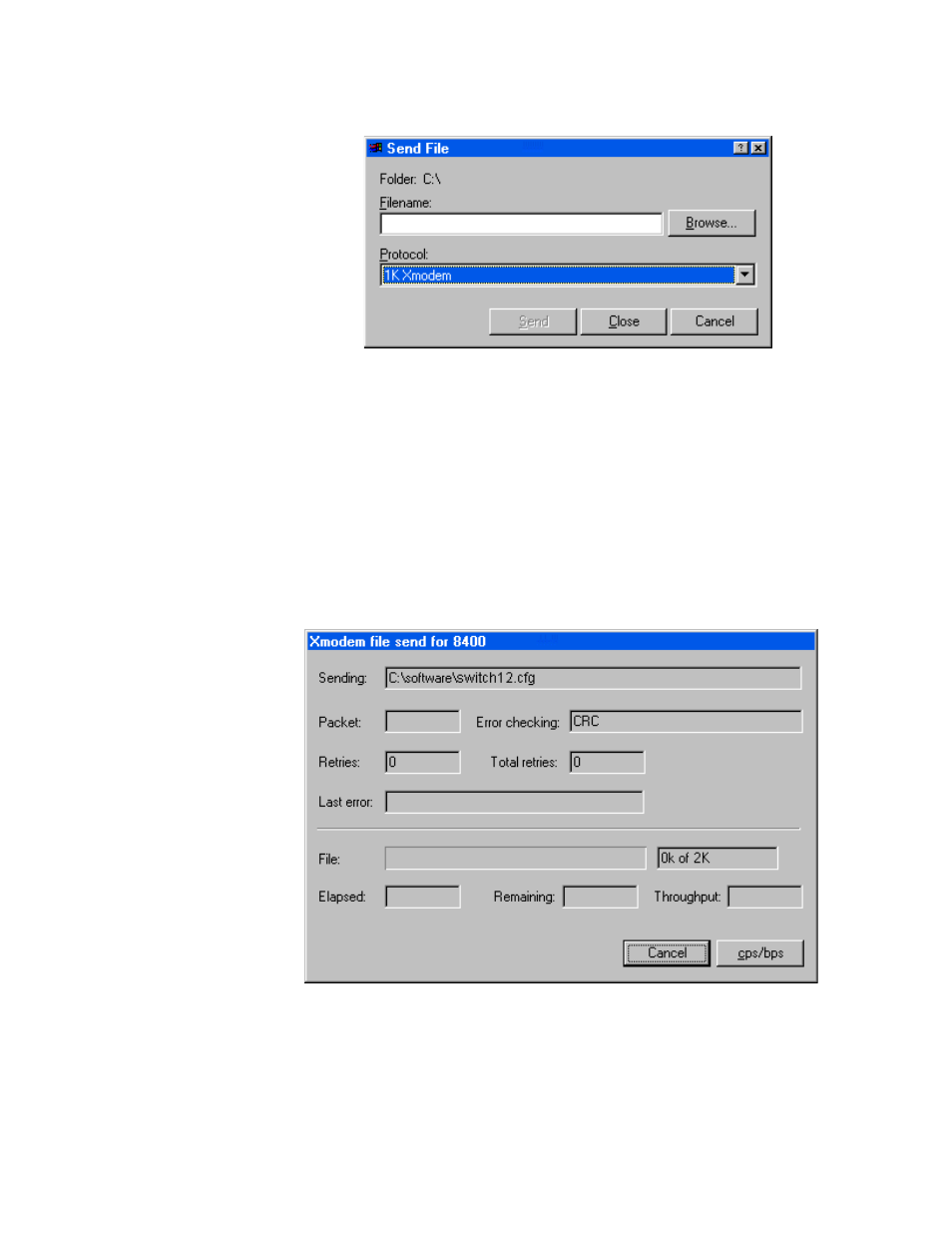

The Send File window is shown in Figure 53.
Figure 56. Send File Window
12. Click Browse and specify the location and system file to be
downloaded onto the switch.
13. Click in the Protocol field and select as the transfer protocol either
Xmodem or, for a faster download, 1K XModem.
14. Click Send.
The file immediately begins downloading onto the switch. The
Xmodem File Send window in Figure 54 displays the status of the
download.
Figure 57. XModem File Send Window
The download is complete when the Downloads and Uploads menu is
displayed.
