10. Assign energy input calculation and scaling factor
tag values based on the Energy Add-On Instruction
Factor table definitions on
page 84 .
One table provides factor definitions for electric
inputs and one for all other energy inputs.

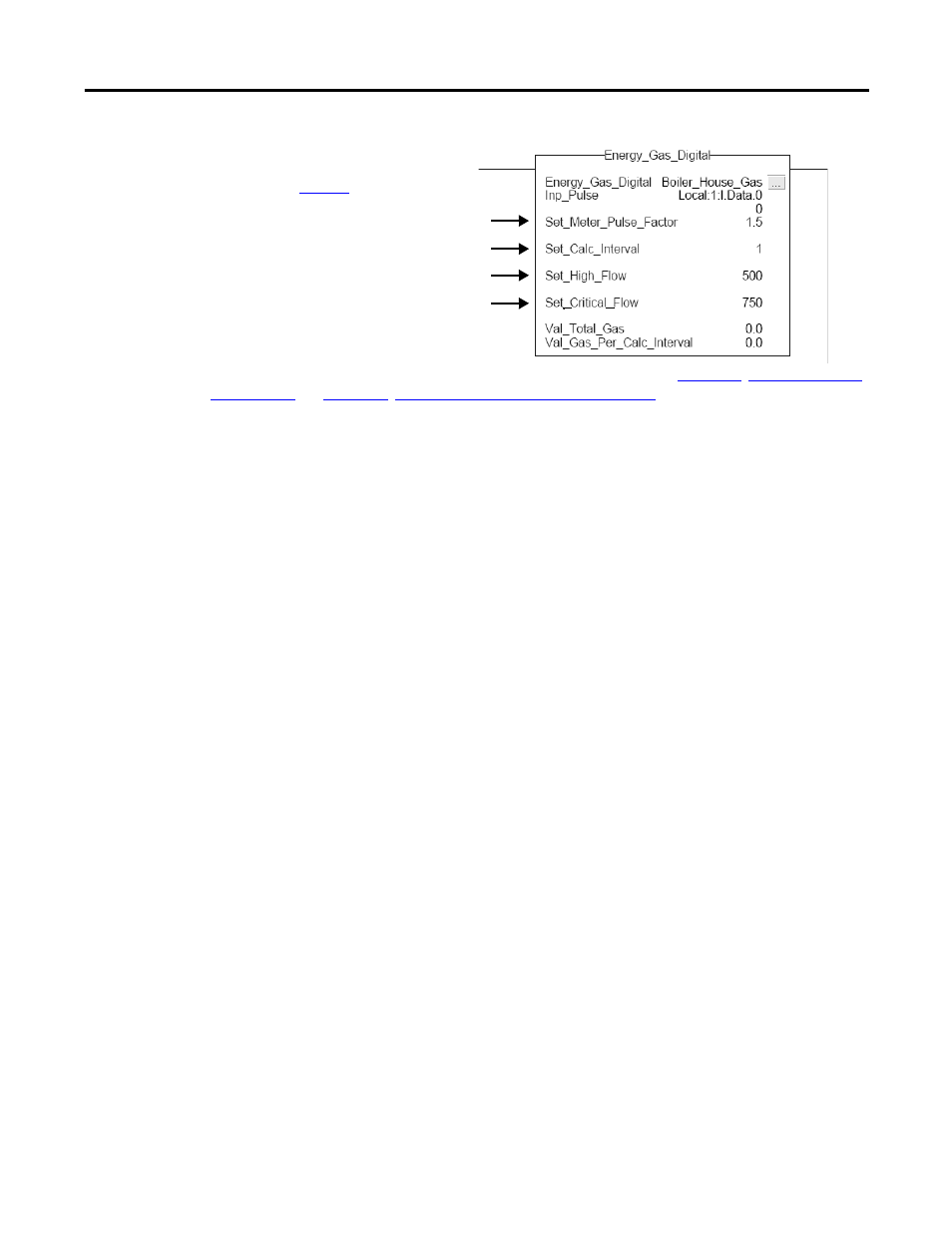

This example shows values that need to be set for
the Energy_Gas_Digital Add-On Instruction.
TIP For additional information on how these energy factors affect calculations, refer to Appendix C , Energy Electric Add-
On Instructions and Appendix D , Digital and Analog Energy Add-On Instructions .
